RS PRO Pneumatic Quick Connect Coupling Nickel Plated Brass 1/4in Threaded

  • RS-artikelnummer 176-1917
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IT
Produktdetaljer

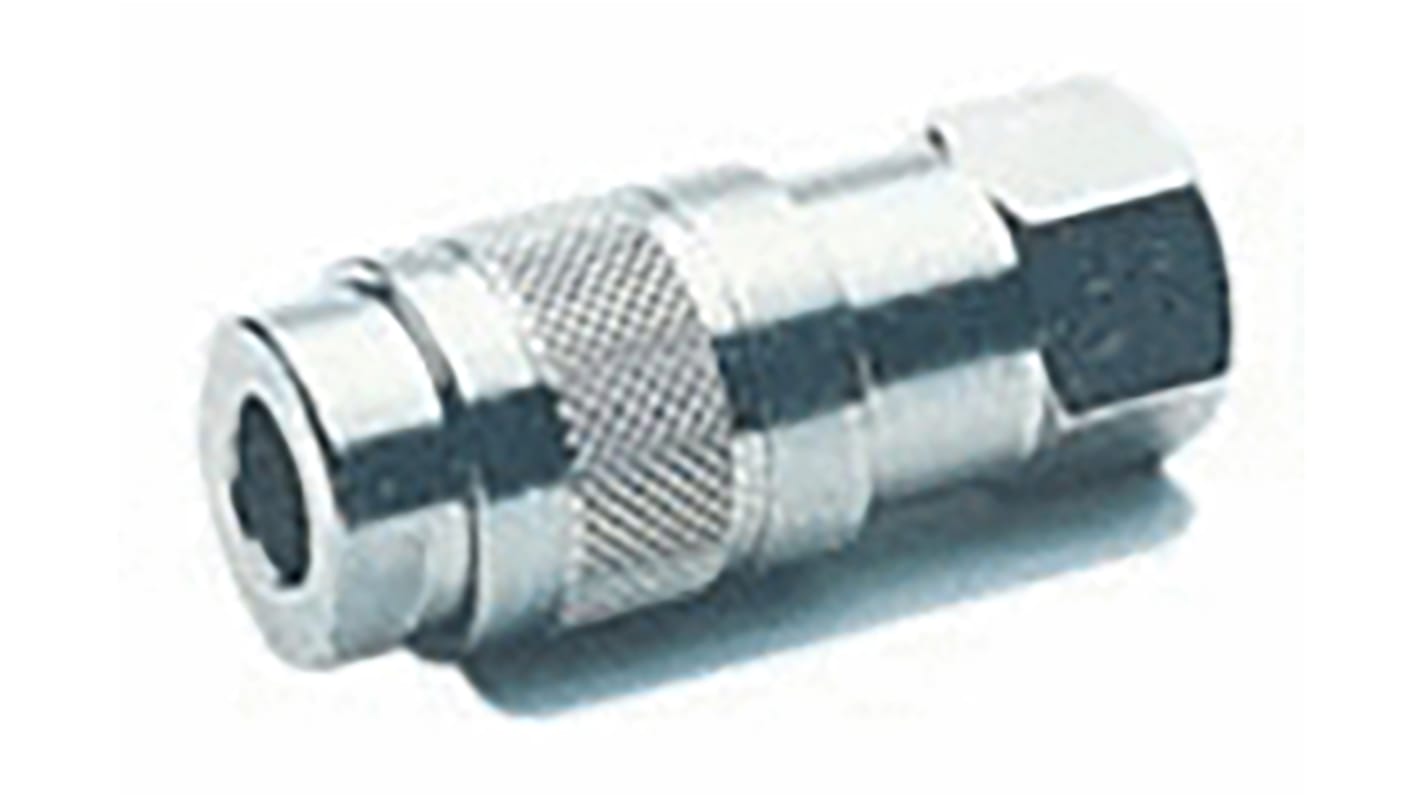

RS PRO Female Quick Coupling

The RS PRO 1/4in G female quick-connect coupling socket is and is manufactured from nickel-plated brass, offering excellent durability. This socket performs a single-handed operation.
Interchangeable with:
RECTUS/LEGRIS, PARKER 21/90, CAMOZZI 5050 - 5150, CEJN 220 and FESTO KD - KS 3

Features and Benefits

• Light and compact
• Moulding coupler
• Multi socket
• Operating pressure is 25bar
• Operating temperature ranges between -20°C and 80°C
• Safety version
• Silicon Free
• Standard profile
• Thread standard is BSP

Applications

• Compressed air and tools
• Cooling system
• Food and beverage
• Inert gases, vacuum
• Life and sciences
• Pneumatic and fluid technology

Certifications

• UNI ISO 6150 C 10

Specifikationer
Attribute Value
Coupling Gender Female
Threaded Connection G 1/4 Female
Connection Type Threaded
Thread Size 1/4in
Material Nickel Plated Brass
Thread Gender Female
Thread Standard BSP
Maximum Operating Pressure 12 bar
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
Tillfälligt slut i lager – restorder för leverans 2020-12-01
Pris (ex. moms) Each (In a Pack of 10)
158,865 kr
(exkl. moms)
198,581 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 +
158,865 kr
1 588,65 kr
