CEJN Steel Female Pneumatic Quick Connect Coupling, G 3/8 Female Threaded

RS-artikelnummer:: 498-264
Tillv. art.nr:: 103105204
Tillverkare / varumärke:: CEJN

CEJN Steel Female Pneumatic Quick Connect Coupling, G 3/8 Female Threaded

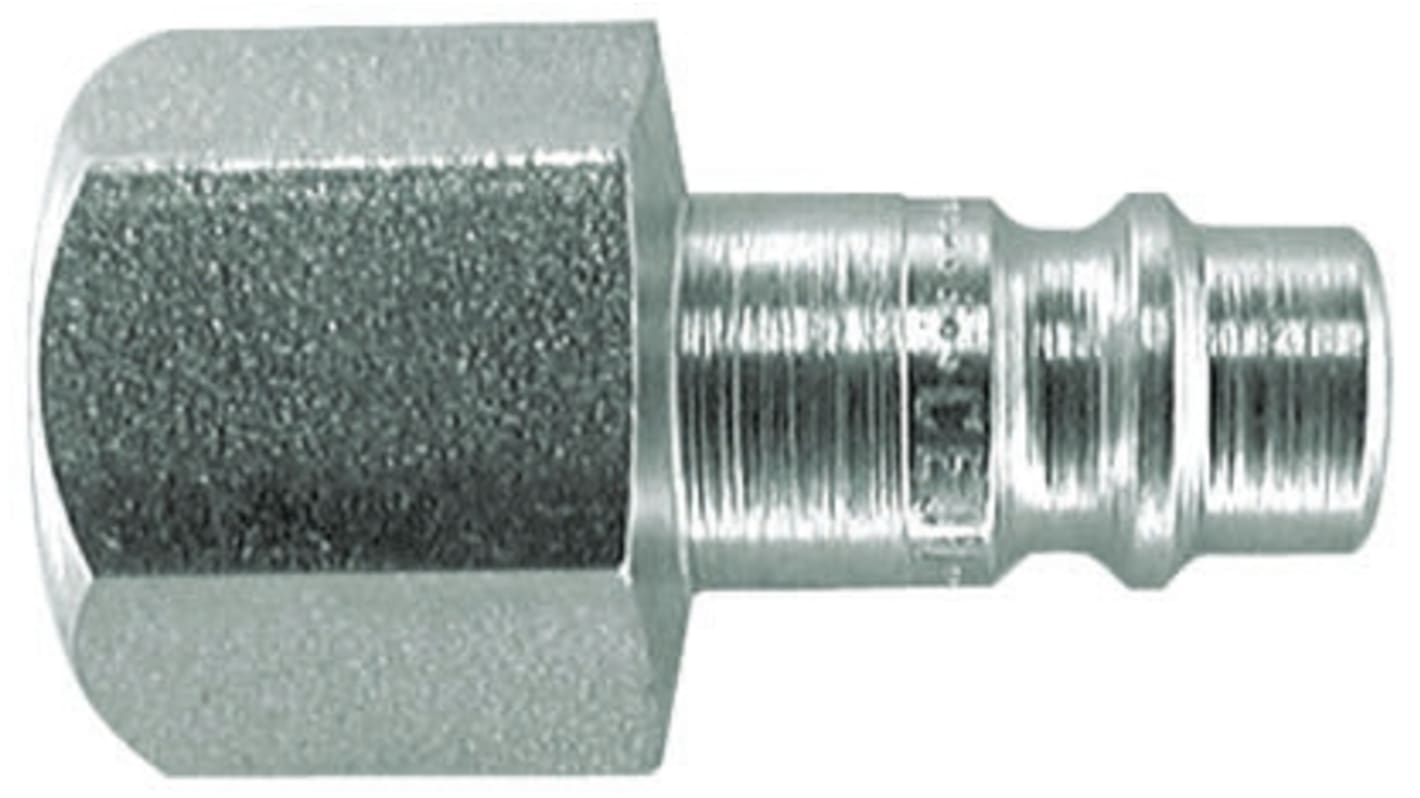

Denna bild representerar endast produktgruppen

33 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

77,78 kr

(exkl. moms)

97,22 kr

(inkl. moms)

Enheter	Per unit
1 - 4	77,78 kr
5 - 9	75,38 kr
10 +	72,97 kr

RS-artikelnummer:: 498-264
Tillv. art.nr:: 103105204
Tillverkare / varumärke:: CEJN

Datablad

Lagstiftning och ursprungsland

RoHS-status: Inte relevant

COO (Country of Origin):: SE

Produktdetaljer

CEJN 310 Series, 5.3mm Flow Diameter

CEJN series 310 offers a range of easy-to-grip couplings. Male threads on the couplings and nipples feature pre-applied thread sealant. The Series 310 vented safety version is disconnected in two stages in order to vent the coupling and minimise the risk of sudden component separation, which has the potential to cause operator injury.

Nominal Flow Diameter 5.3 mm
Low connection force
Available in standard and safety versions
Two stage safety types
Fully automatic operation ensures easy handling
Interchanges with US Mil C 4109 1/4in. & Rectus 23//24
Zinc-plated steel body material
NBR seal material

Standards

A-A 59439 (former U.S standard MIL C 4109 1/4in.) vented safety version complies to ISO standard 4414 and EN 983

Interchanges to other Brand Profiles

Specifikationer

Attribute	Value
Threaded Connection	G 3/8 Female
Coupling Gender	Female
Thread Size	3/8in
Coupling Type	Quick Connect Coupling Plug
Manufacturer Series	310
Connection Type	Threaded
Material	Steel
Thread Gender	Female
Thread Standard	G
Maximum Operating Pressure	16bar
Finish	Zinc Plated
Seal Material	Nitrile Rubber
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+100°C
