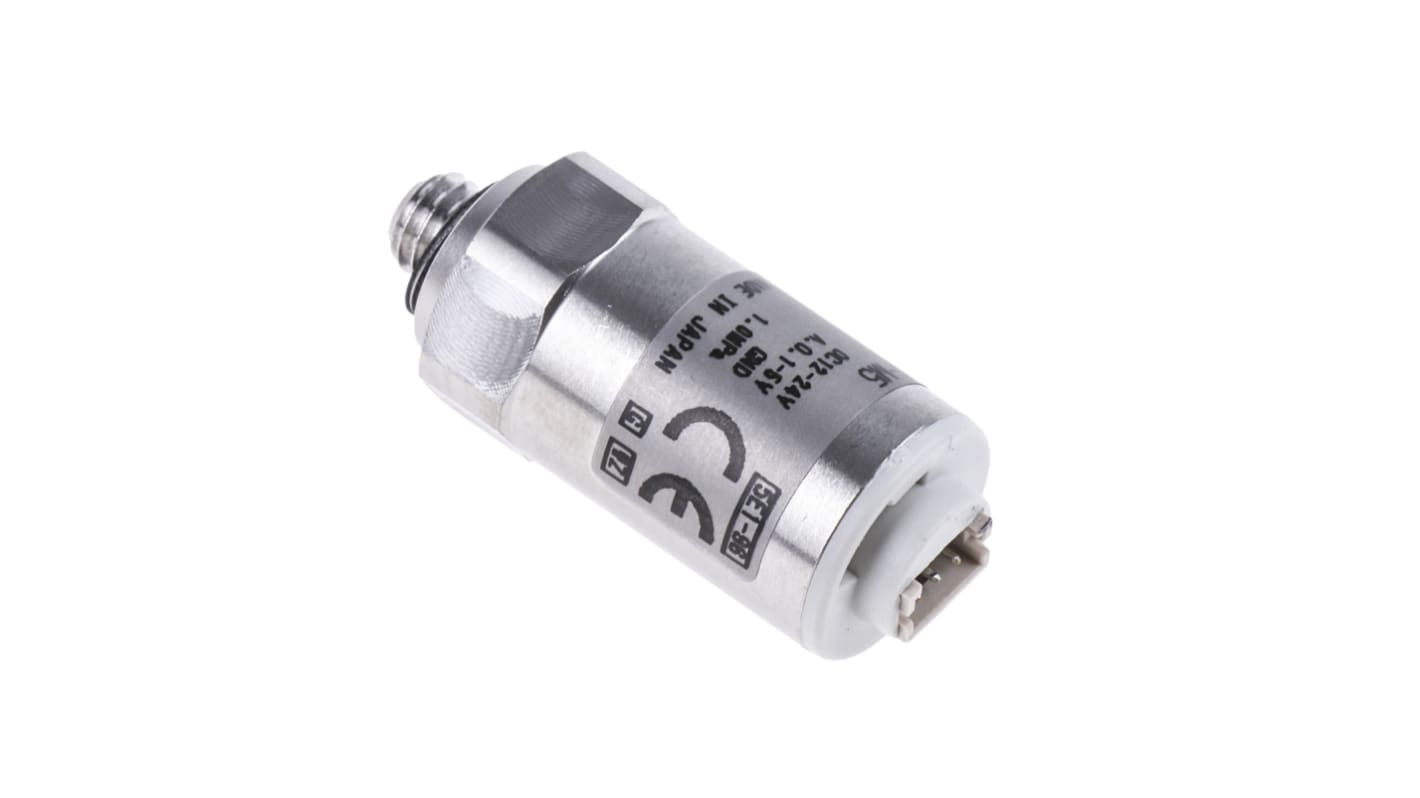

SMC Pressure Sensor 1.5Mpa, 12 → 24V dc, IP40 1 MPa

  • RS-artikelnummer 700-7569
  • Tillv. art.nr PSE530-M5-L
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
COO (Country of Origin): JP
Produktdetaljer

Compact Pneumatic Pressure Sensor

Series PSE digital pressure switches allow pressure to be controlled from a remote location. The PSE100 series controller has an easy to read, large, 4-digit LED display. Display units can be easily selected and changed. Series PSE510 is compact and lightweight, allowing the sensor to be mounted where needed. The use of stainless steel for all wetted parts (SUS630 for diaphragm, SUS304 for fitting) allows the PSE520 pressure sensor to be used in a wide variety of gas and fluid applications.
PSE series remote pressure and vacuum sensors have been expanded to include easy-to-use econ connectors from 3M or AMP.

Conversion Table
Conversion Factor
Bar to mmHg 750.06
Bar to PSI 14.50
Bar to kPa 100
Specifikationer
Attribute Value
Suitable Media Air, Gas
Proof Pressure 1.5MPa
Supply Voltage 12 → 24V dc
IP Rating IP40
Minimum Operating Pressure 0MPa
Maximum Operating Pressure 1 MPa
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
24 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
550,44 kr
(exkl. moms)
688,05 kr
(inkl. moms)
Enheter
Per unit
1 +
550,44 kr
