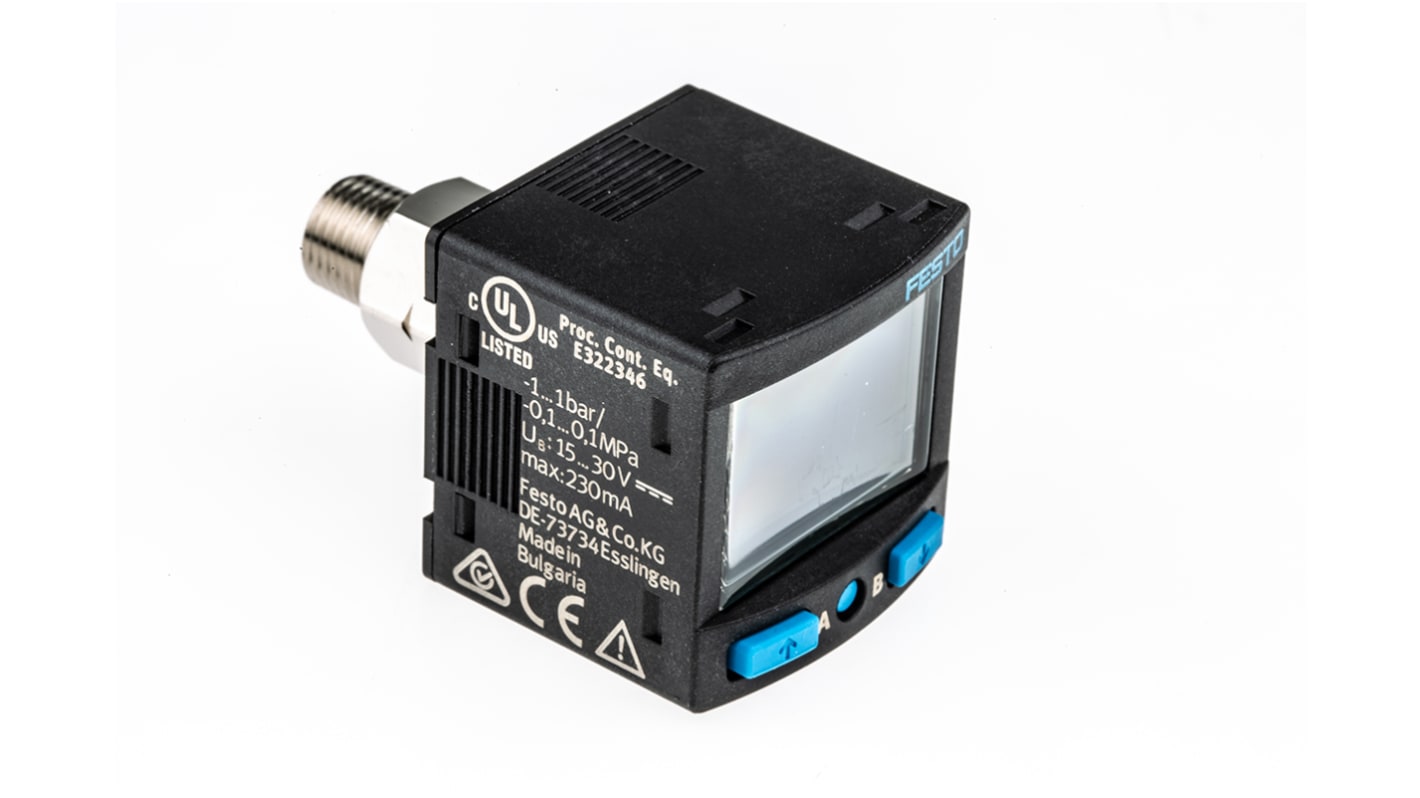

Festo Pressure Sensor, 30V dc, IP40 +1 bar

  • RS-artikelnummer 175-2237
  • Tillv. art.nr SPAN-B2R-R18M-PN-PN-L1
  • Tillverkare / varumärke Festo
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): BG
Produktdetaljer

Festo SPAN Series Pressure Sensors

Festo SPAN series pressure sensors for monitoring compressed air and non-corrosive gases. The measuring method is based on a piezoresistive measuring cell for relative pressure measurement. Pressure values are transmitted to the connected control system as a switching signal, as an analogue signal or via IO-Link depending on the sensor variant and selected parameters.

Features and Benefits

Compact design
IO-Link
Clear 2-line display
Various switching functions
Pressure and vacuum
13 pressure measuring ranges

Festo Pressure Sensor

The Festo SPAN series pressure sensor is designed to monitor pressure of compressed air and non-corrosive gases. It works on 30V supply voltage. The sensor measures the pressure in range of -1bar to 1bar. It has a switchable element function with normally open or normally closed contact. This has R1/8 pneumatic connection with male thread. It has a clear 2-line display.

Features and Benefits

• Service temperature ranges between 0°C and 50°C
• Switching electrical output is of NPN or PNP type
• Plug connector with L1 design
• Accuracy is ±1.5% FS
• Wall mounting with front panel

Applications

• Network and regulator monitoring
• Object detection
• Leak test

Certifications

• cULus approved
• CE certified
• IP40 rated

Specifikationer
Attribute Value
Suitable Media Air
Supply Voltage 30V dc
IP Rating IP40
Minimum Operating Pressure -1bar
Maximum Operating Pressure +1 bar
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
3 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
907,02 kr
(exkl. moms)
1 133,78 kr
(inkl. moms)
Enheter
Per unit
1 +
907,02 kr
