- RS-artikelnummer:
- 126-0228
- Tillv. art.nr:
- SPAN-P10R-G18M-PN-PN-L1
- Tillverkare / varumärke:
- Festo
4 I lager för avsändande samma dag
10 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
1 129,77 kr
(exkl. moms)
1 412,21 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 1 129,77 kr |
- RS-artikelnummer:
- 126-0228
- Tillv. art.nr:
- SPAN-P10R-G18M-PN-PN-L1
- Tillverkare / varumärke:
- Festo
Lagstiftning och ursprungsland
- COO (Country of Origin):
- BG
Produktdetaljer

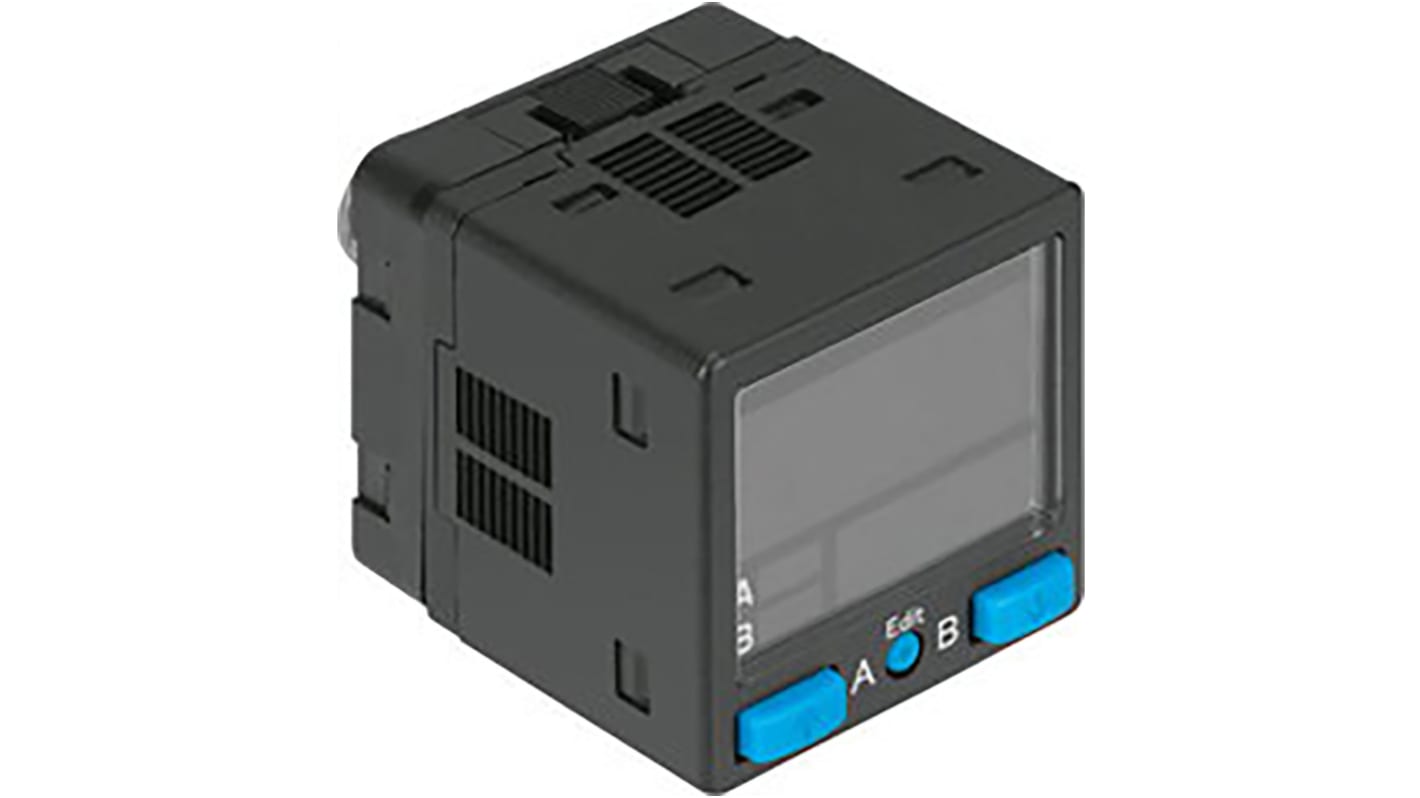

Festo Pressure Switch, IP40, SPAN-P10R-G18M-PN-PN-L1
The Festo SPAN panel mount pressure switch suits applications where maintaining a stable process is key. It uses piezoresistive pressure monitoring for precise measurement and rapid response times. With an intuitive operating system, the unit enables the transfer of parameter records to other sensors via a master device, saving installation time. It has an IP (ingress protection) rating of 40 and a multi-unit digital display that's easy to read. This switch is ideal for network and regulator monitoring, leak testing and object detection.
• Monitoring for compressed air and non-corrosive gases
• Compact and robust at 30 mm x 30 mm
• Various switching functions and outputs for versatile use
• Pneumatic connection of male thread G1/8
• Operating range of 15 V DC to 30 V DC
• Quick to install with a wide range of mounting options
• Operating temperature of 0 °C to +50 °C
• IP40 rating for protection from tools and wires greater than 1 mm
• RoHS (Restriction of Hazardous Substances) compliant
• Festo's SPAN sensor range brings user-friendly technology to pressure measuring
• The sensors transmit pressure values as a switching signal, analogue signal or via IO-Link
• They feature adjustable low-pass filters to smooth the pressure signal
• Each sensor can be hot-swapped remotely and locked with an optional security code
• Simple two-step connection ensures easy use
Specifikationer
Attribute | Value |
|---|---|
| Suitable Media | Air |
| Maximum Operating Pressure | 15 bar |
| Minimum Operating Pressure | 0bar |
| Proof Pressure | 15bar |
| Supply Voltage | 15 → 30V |
| IP Rating | IP40 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
