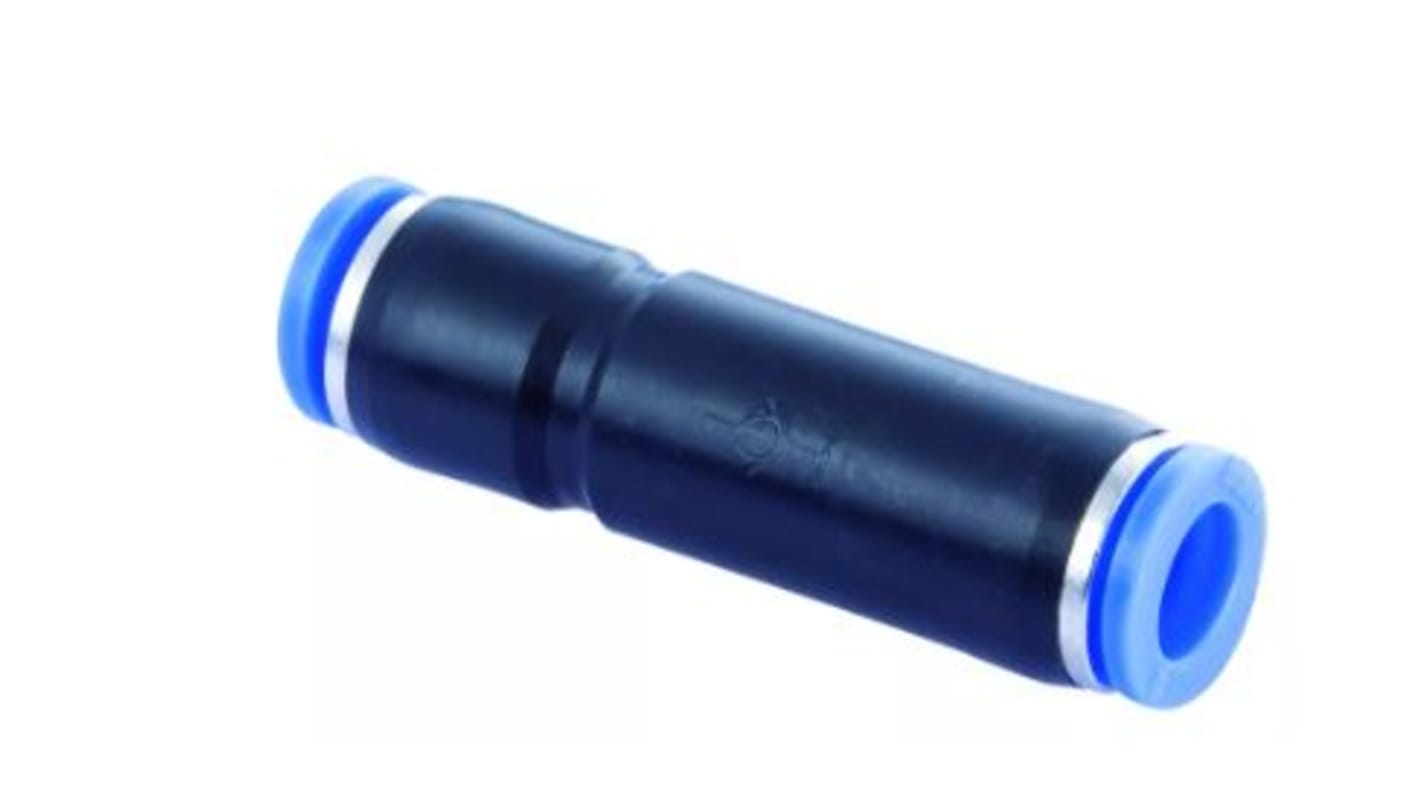

RS PRO CVPU Non Return Valve, 4 mm Tube Inlet, 4 mm Tube Outlet, 0 → 10 bar
Use this non-return valve from the RS PRO range as part of your pneumatic system. It can prevent compressed air from flowing in the opposite direction and maintain a vacuum in low-pressure applications. This valve is suitable for use in systems that operate within a pressure range of 0 to 10 bar.
Each end of the valve has a push-on and screw collar design that makes for a secure, easy-to-install connection. The valve is made of polyoxymethylene for durability and resistance to abrasion.
A non-return valve such as this one is useful in a wide range of applications, including vacuum pumps and pressure gauges. You'll often find it used in the pharmaceutical, textile and food production industries.
Each end of the valve has a push-on and screw collar design that makes for a secure, easy-to-install connection. The valve is made of polyoxymethylene for durability and resistance to abrasion.
A non-return valve such as this one is useful in a wide range of applications, including vacuum pumps and pressure gauges. You'll often find it used in the pharmaceutical, textile and food production industries.
Features and Benefits
Polyoxymethylene body material
Tube inlet connection size of 4 mm
Tube outlet connection size of 4 mm
Minimum operating pressure of 0 bar
Maximum operating pressure of 10 bar
Minimum operating temperature of 0°C
Maximum operating temperature of +60°C
Tube inlet connection size of 4 mm
Tube outlet connection size of 4 mm
Minimum operating pressure of 0 bar
Maximum operating pressure of 10 bar
Minimum operating temperature of 0°C
Maximum operating temperature of +60°C
Specifikationer
Attribute | Value |
---|---|
Tube Inlet Connection | 4mm |
Inlet Connection Type | Tube |
Outlet Connection Type | Tube |
Tube Outlet Connection | 4mm |
Manufacturer Series | CVPU |
Minimum Operating Pressure | 0bar |
Maximum Operating Pressure | 10 bar |
Maximum Operating Temperature | +60°C |
Operating Pressure Range | 0 → 10bar |
Minimum Operating Temperature | 0°C |
Body Material | PBT Resin |
