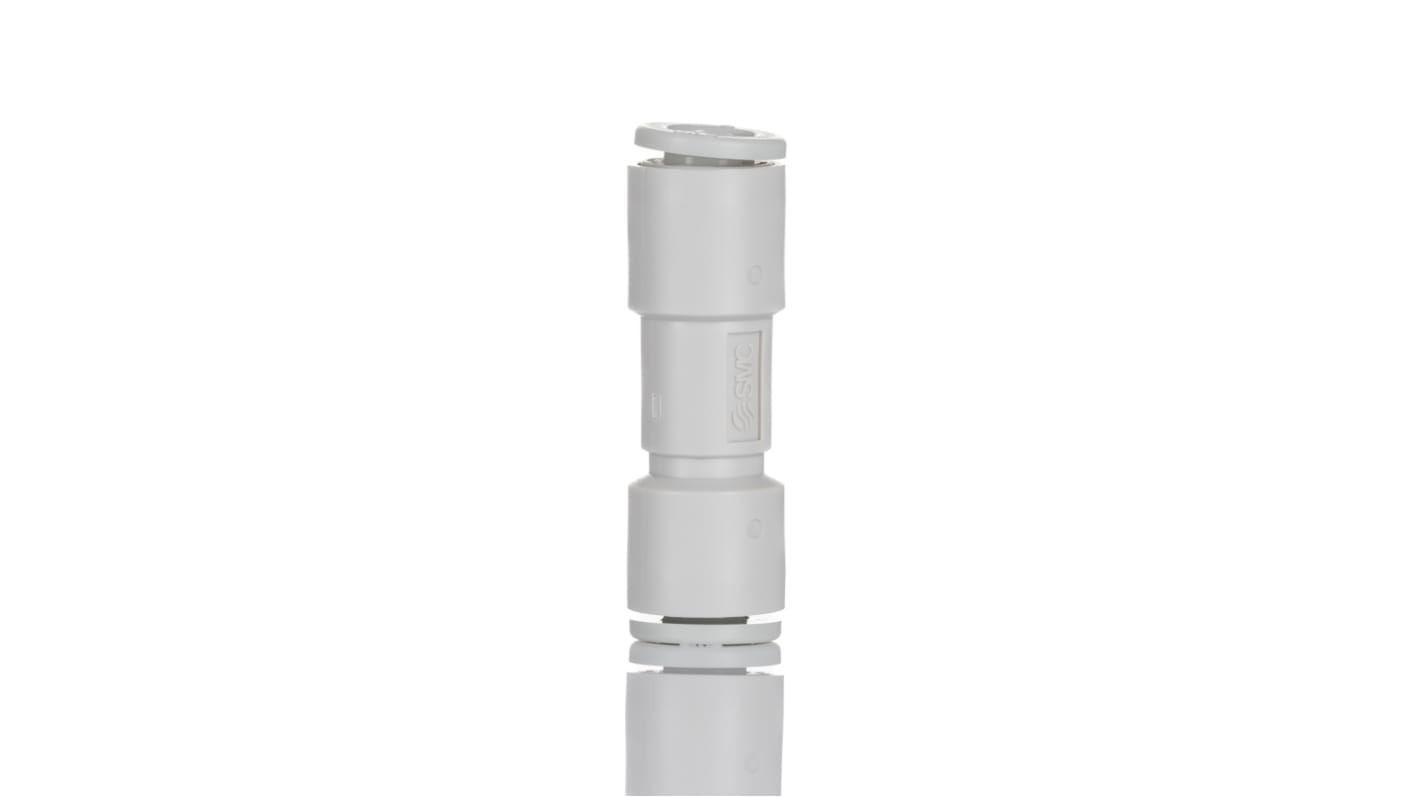

SMC AKH Non Return Valve, 6mm Tube Inlet, 6mm Tube Outlet, -100 kPa → 1MPa
- RS-artikelnummer:
- 367-0624
- Tillv. art.nr:
- AKH06-00
- Tillverkare / varumärke:
- SMC
718 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
90,05 kr
(exkl. moms)
112,56 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 90,05 kr |
| 5 - 9 | 87,11 kr |
| 10 + | 84,48 kr |
- RS-artikelnummer:
- 367-0624
- Tillv. art.nr:
- AKH06-00
- Tillverkare / varumärke:
- SMC
Lagstiftning och ursprungsland
Uppfyller ej RoHS
Produktdetaljer
SMC Non-Return Valves
Integral push in fitting connections for fast inline installation. These fittings are compact and lightweight with the advantage of one-touch fitting. Easily installed into your pneumatic installations.
Features and Benefits
• Can be used in compressed air or vacuum lines
• Suitable for use with a wide range of tube types
• Operating temperature -5°C to 60°C
• Suitable for use with a wide range of tube types
• Operating temperature -5°C to 60°C
Product Application Information
Ideal for most pneumatic applications due to their compact and lightweight design.
Specifikationer
Attribute | Value |
|---|---|
| Tube Inlet Connection | 6mm |
| Inlet Connection Type | Tube |
| Outlet Connection Type | Tube |
| Tube Outlet Connection | 6mm |
| Manufacturer Series | AKH |
| Cracking Pressure | 0.005MPa |
| Minimum Operating Pressure | -100kPa |
| Maximum Operating Pressure | 1 MPa |
| Maximum Operating Temperature | +60°C |
| Operating Pressure Range | -100 kPa → 1MPa |
| Minimum Operating Temperature | -5°C |
