- RS-artikelnummer:
- 290-3709
- Tillv. art.nr:
- T50P0012
- Tillverkare / varumärke:
- Norgren
- RS-artikelnummer:
- 290-3709
- Tillv. art.nr:
- T50P0012
- Tillverkare / varumärke:
- Norgren
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- CN
Produktdetaljer

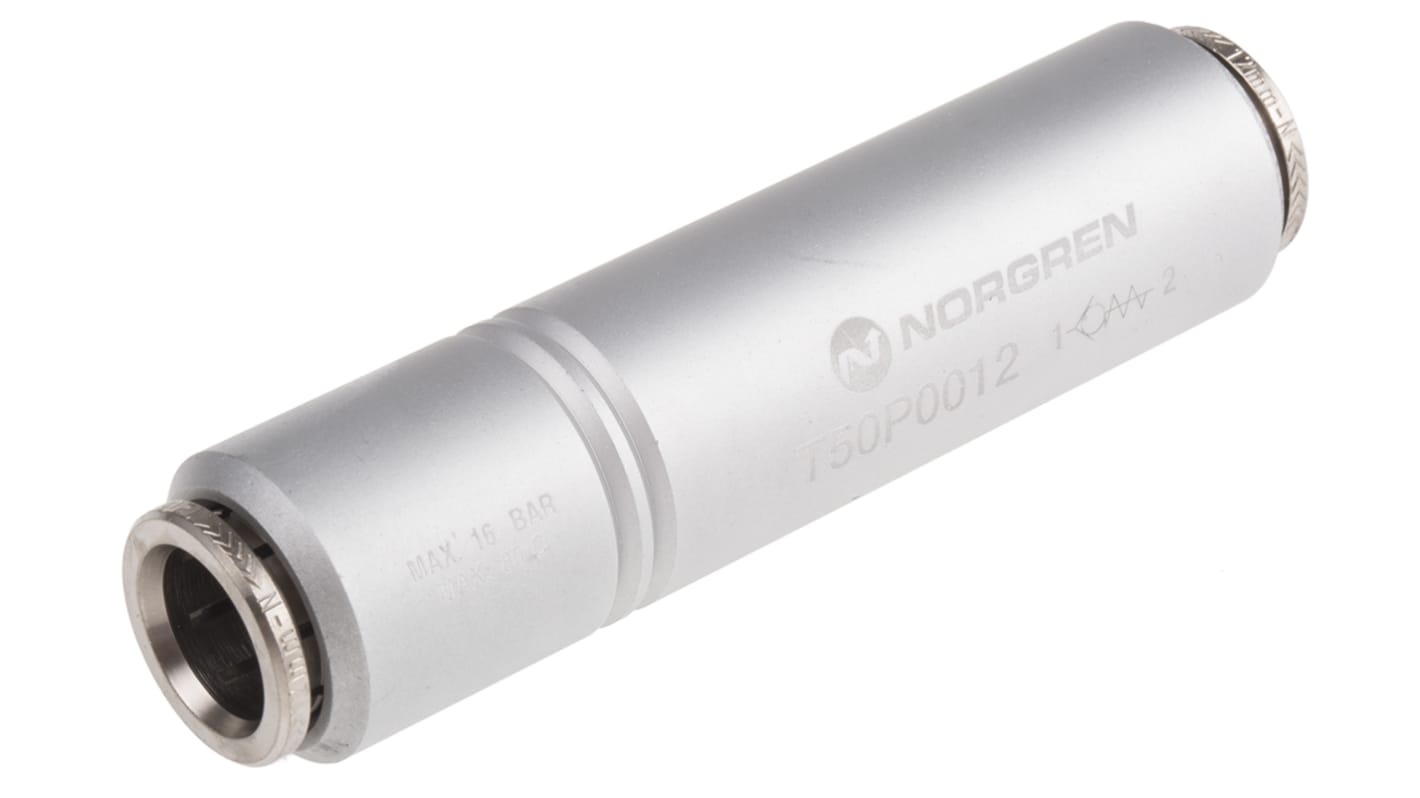

IMI Norgren Non Return Valve, 0.03 Bar Cracking Pressure, 16 Bar Maximum Operating Pressure - T50P Series - T50P0012
Looking for a device to control airflow in your pneumatic system? Choose this non return valve from IMI Norgren. It's compatible with filtered air, vacuums and lubricated or non-lubricated mediums, so it's a versatile choice. By ensuring air flows consistently in one direction only, it cuts out potentially damaging backflow pressure. The tube style inlet and outlet both feature push-in connection ports that make installation and maintenance straightforward, without the need for specialist tools.
Features & Benefits
+0.03 bar cracking pressure means air flows easily through the valve with no leakage
-0.9 to 16 bar operating pressure range means it's suitable for use in a wide range of applications
Anodised aluminium body resists corrosion so is suitable for use in damp conditions
Lightweight at only 64g so won't add excessive load to your setup
-0.9 to 16 bar operating pressure range means it's suitable for use in a wide range of applications
Anodised aluminium body resists corrosion so is suitable for use in damp conditions
Lightweight at only 64g so won't add excessive load to your setup
Applications
Pneumatic systems
Process control
Factory automation
Process control
Factory automation
Will this non return valve work in demanding conditions?
This device operates in a temperature range of -20°C to +80°C, so it can handle the demands of industrial settings. .
Specifikationer
Attribute | Value |
---|---|
Tube Inlet Connection | 12mm |
Inlet Connection Type | Tube |
Outlet Connection Type | Tube |
Tube Outlet Connection | 12mm |
Manufacturer Series | T50P |
Cracking Pressure | 0.03bar |
Minimum Operating Pressure | -0.9bar |
Maximum Operating Pressure | 16 bar |
Maximum Operating Temperature | +80°C |
Body Material | Aluminium |
Minimum Operating Temperature | -20°C |
Operating Pressure Range | -0.9 to 16bar |
