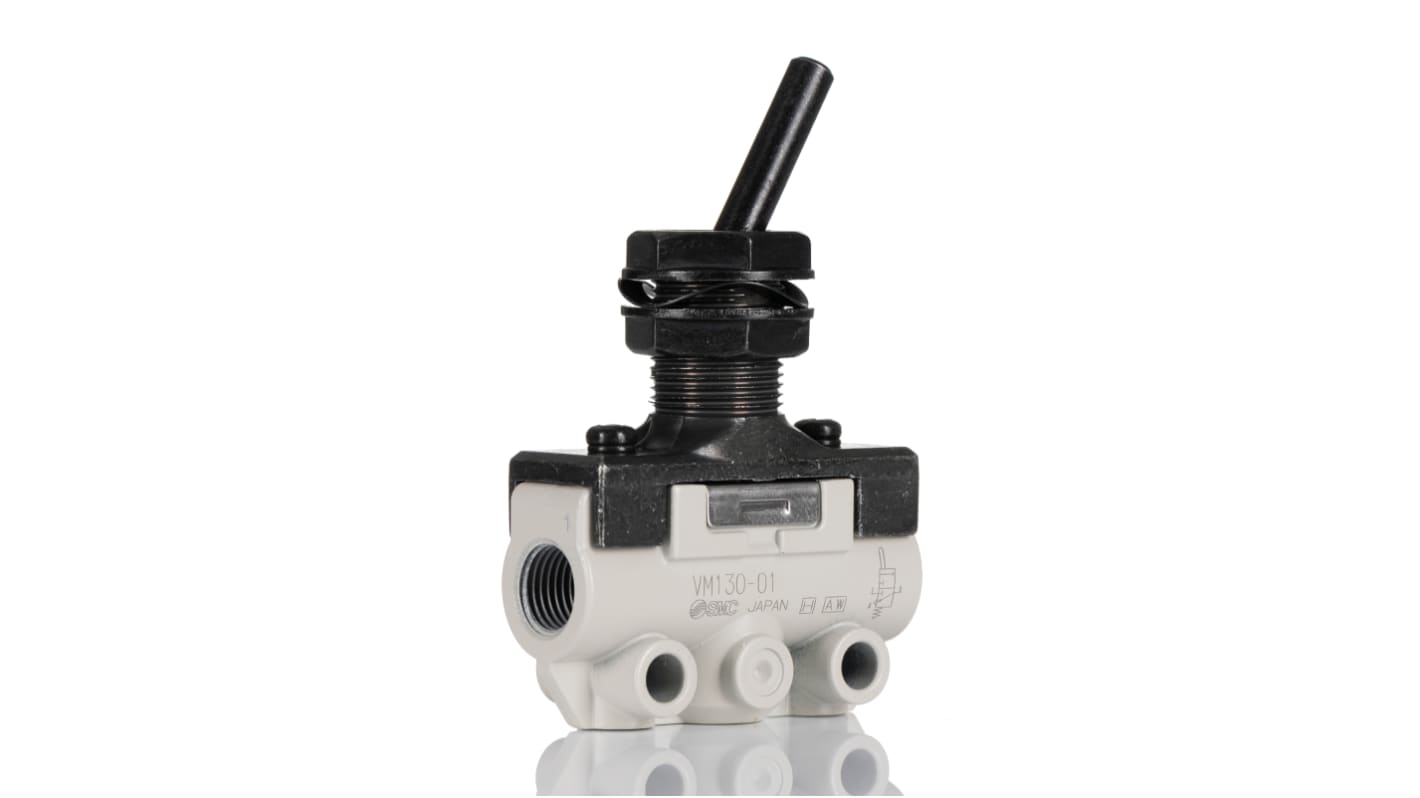

SMC Toggle Lever Pneumatic Manual Control Valve VM100 Series

  • RS-artikelnummer 885-2089
  • Tillv. art.nr VM130-01-08A
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
COO (Country of Origin): JP
Produktdetaljer

VM100 Series Roller Lever & Plunger Valves

A selection of lever valves from SMC’s durable VM series suitable for harsh conditions and now redesigned to be lighter and more compact. Available with various actuator types that are simple to change or replace and available with either a 1/8” ort size (VM100) or1/4"” (VM200).Suitable for a wide range of applications, including vacuum, the VM 100/200 is ideal for pneumatic control panels and confirming the position of a workpiece using a pneumatic sign

Specifikationer
Attribute Value
Control Mechanism Toggle Lever
Connection Port Thread R 1/8
Thread Size 1/8
Thread Standard R
Manufacturer Series VM100
Maximum Operating Pressure 1 MPa
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
Number of Ports 3
Number of Positions 2
46 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
382,79 kr
(exkl. moms)
478,49 kr
(inkl. moms)
Enheter
Per unit
1 - 4
382,79 kr
5 - 9
371,12 kr
10 +
359,14 kr
