- RS-artikelnummer:
- 784-0076
- Tillverkare / varumärke:
- RS PRO
- RS-artikelnummer:
- 784-0076
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer

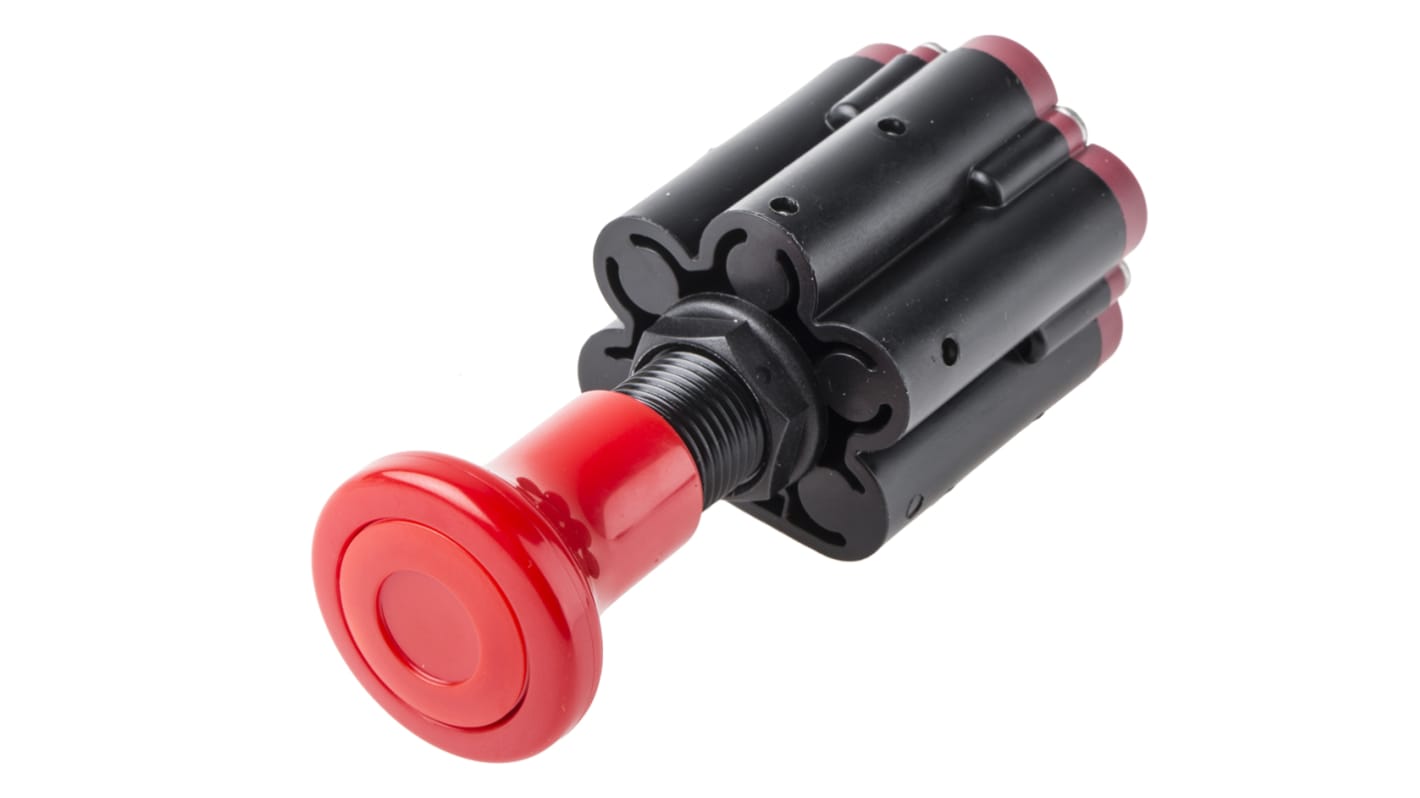

RS PRO Push Pull 4/2 Pneumatic Manual Control Valve ACV Series
Manually control the airflow in your pneumatic system with this RS PRO control valve. It works with a red push-pull control knob that's easy to see on your dashboard or control panel. The unit is also simple to install as it has predrilled holes for panel or body mounting.
This control valve is suitable for applications with a maximum pressure of 16 bar and a flow rate of 300 litres per minute. It can withstand temperatures between -10°C and +50°C, so it's safe for use in a wide range of environments. The valve also features an integrated handbrake interlock function to cut power to your equipment while the valve is still engaged and keep you safe.
A manual control valve such as this one is useful in the agricultural, construction and automotive industries. You'll often find it used on large vehicles and machinery such as industrial pumps and rubbish trucks with Power Take-Off (PTO).
This control valve is suitable for applications with a maximum pressure of 16 bar and a flow rate of 300 litres per minute. It can withstand temperatures between -10°C and +50°C, so it's safe for use in a wide range of environments. The valve also features an integrated handbrake interlock function to cut power to your equipment while the valve is still engaged and keep you safe.
A manual control valve such as this one is useful in the agricultural, construction and automotive industries. You'll often find it used on large vehicles and machinery such as industrial pumps and rubbish trucks with Power Take-Off (PTO).
Features and Benefits
Push-in 6 mm connection port thread
Red control button/switch colour
Push-pull control mechanism
4/2-way valve
Maximum flow rate of 300 L/min
Maximum operating pressure of 16 bar
Minimum operating temperature of -10°C
Maximum operating temperature of +50°C
Red control button/switch colour
Push-pull control mechanism
4/2-way valve
Maximum flow rate of 300 L/min
Maximum operating pressure of 16 bar
Minimum operating temperature of -10°C
Maximum operating temperature of +50°C
Specifikationer
Attribute | Value |
---|---|
Control Mechanism | Push Pull |
Connection Port Thread | Push In 6 mm |
Function | 4/2 |
Thread Size | 6mm |
Thread Standard | Push In |
Manufacturer Series | ACV |
Control Button/Switch Colour | Red |
Maximum Operating Pressure | 16 bar |
Maximum Flow Rate | 300L/min |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +50°C |
Number of Ports | 4/2 |
