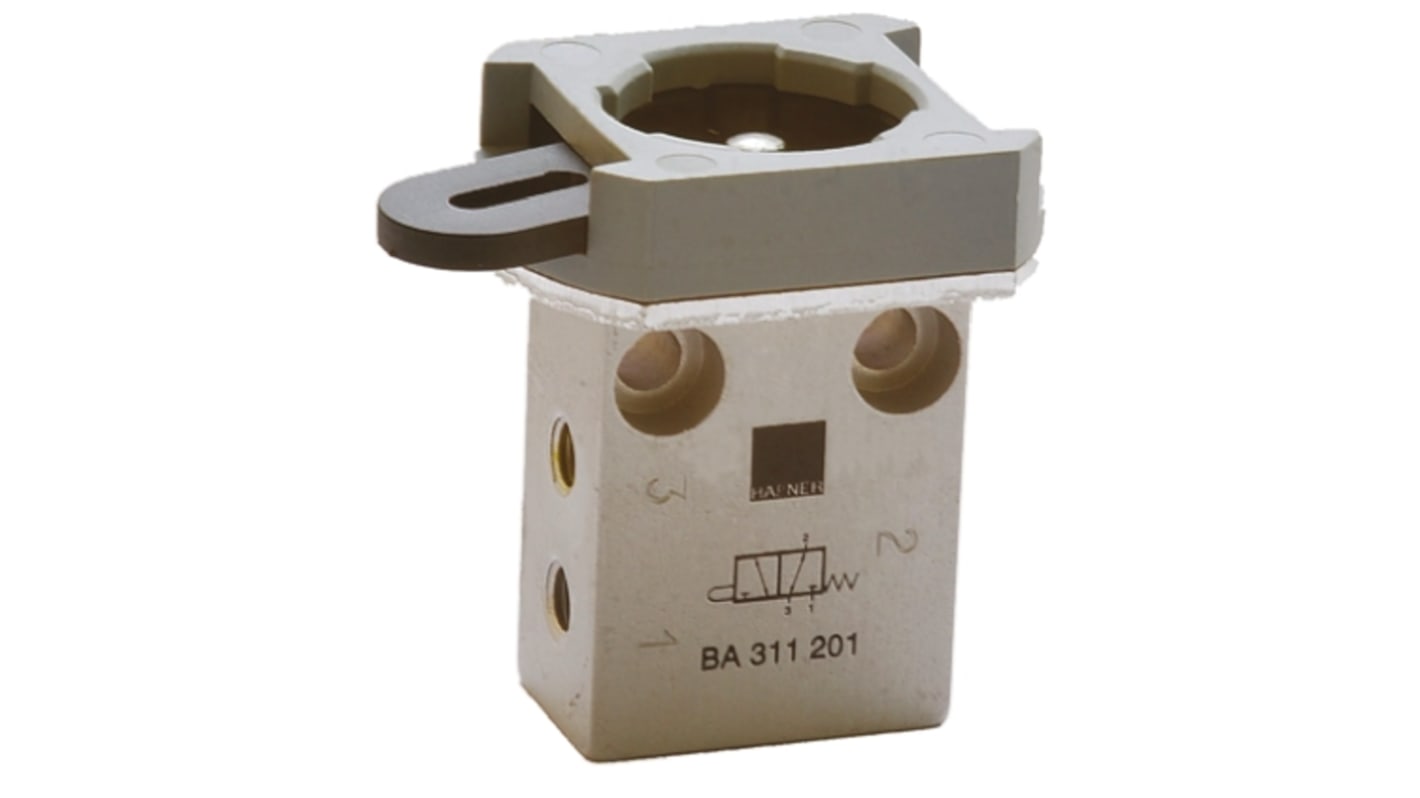

RS PRO 3/2 Pneumatic Manual Control Valve BA 311 Series, Metric M5, M5, III B
- RS-artikelnummer:
- 784-0050
- Tillverkare / varumärke:
- RS PRO
Tillfälligt slut i lager – restorder för leverans 2024-05-09
Lagt till varukorgen
Pris (ex. moms) Varje
360,91 kr
(exkl. moms)
451,14 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 360,91 kr |
| 5 + | 350,08 kr |
- RS-artikelnummer:
- 784-0050
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Spool Valve Bodies
RS Mechanical/Spring Return Spool Valve Bodies work are suitable for use within general pneumatic, industrial, and automation and control applications and operate within pressure ranges from -0.9 to 10 bar, and environments from -10°C to +50°C. Units can accommodate a maximum flow rate of 125 litres per minute. The Spool Valve Bodies feature a 'snap-in' actuator fixing and integral mounting holes. Spool Valves from RS are compatible with the Spool Valve Bodies.
RS Control Valves and Accessories
RS Spool Valves, Spool Valve Bodies, NAMUR Solenoid-Spring Valves, Power Take-Off (PTO) Valves, Intrinsically Safe (ATEX approved) Solenoid-Spring Valves and the Filter-Regulator-Lubricator (FRL) Portable Air Cradle, suitable for use within a variety of general pneumatic, industrial, automation and control applications.
Specifikationer
Attribute | Value |
|---|---|
| Connection Port Thread | Metric M5 |
| Function | 3/2 |
| Thread Size | M5 |
| Thread Standard | Metric |
| Manufacturer Series | BA 311 |
| Maximum Operating Pressure | 10 bars |
| Maximum Flow Rate | 125L/min |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Number of Ports | 3/2 |
