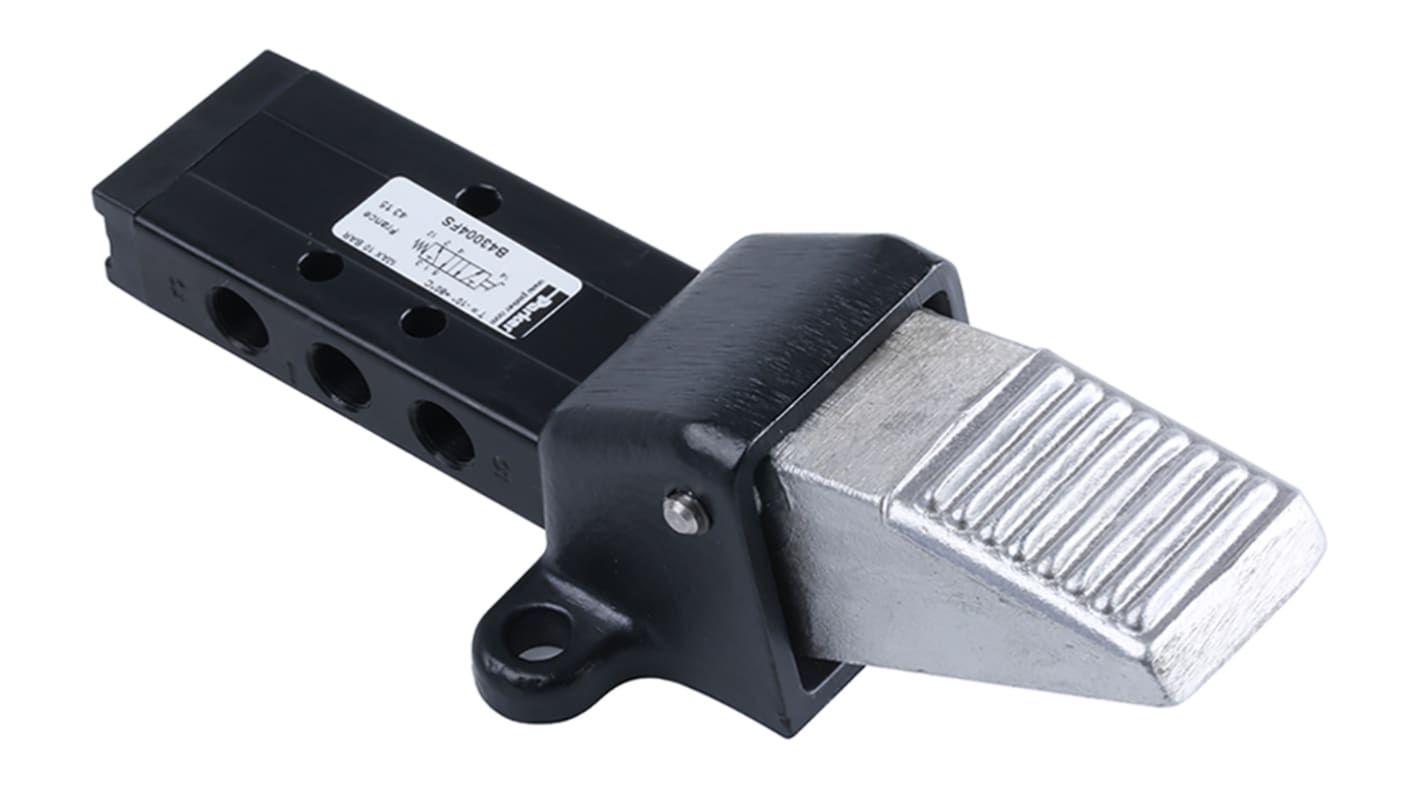

Parker Pedal 5/2 Pneumatic Manual Control Valve B43 Series

  • RS-artikelnummer 389-6595
  • Tillv. art.nr B43004FS
  • Tillverkare / varumärke Parker
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
Produktdetaljer

Foot Valve

Suitable for positive pressure or vacuum line applications.

Stainless steel spool giving long, trouble free service life
Viton seals as standard
Foot pedal with return spring

Norgren, Parker & Herga

Foot switches with a maximum operating pressure of 10 bar.

Specifikationer
Attribute Value
Control Mechanism Pedal
Function 5/2
Connection Port Thread G 1/8
Thread Size 1/8in
Thread Standard G
Manufacturer Series B43
Maximum Operating Pressure 10 bar
Body Material Die Cast Zinc
Maximum Flow Rate 510L/min
Minimum Operating Temperature -10°C
Maximum Operating Temperature +80°C
Number of Ports 5/2
1 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
824,51 kr
(exkl. moms)
1 030,64 kr
(inkl. moms)
Enheter
Per unit
1 - 4
824,51 kr
5 - 9
791,53 kr
10 +
758,55 kr
