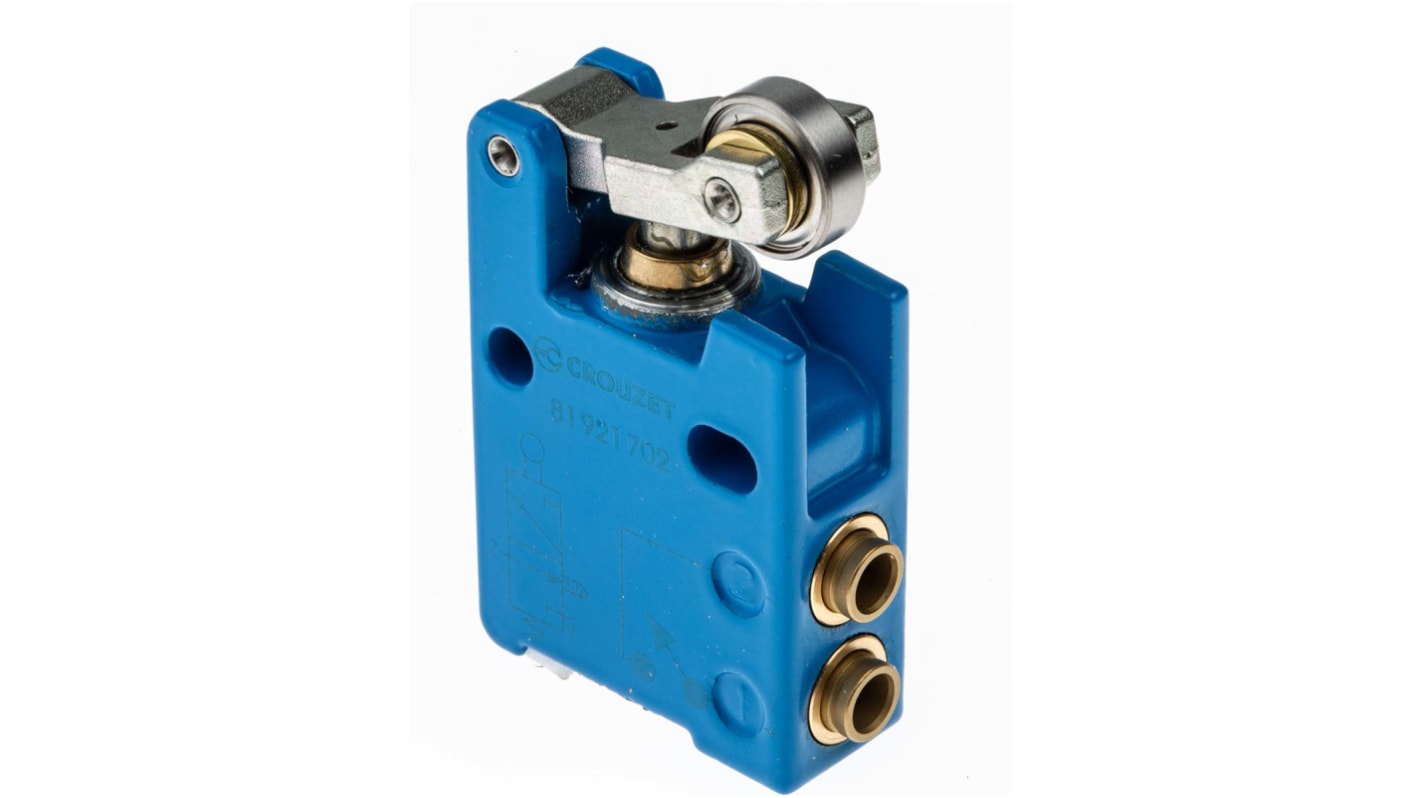

Crouzet Roller Lever 3/2 Pneumatic Manual Control Valve 81 Series, 2.5mm, III B
- RS-artikelnummer:
- 305-6028
- Tillv. art.nr:
- 81921702
- Tillverkare / varumärke:
- Crouzet
9 I lager för avsändande samma dag
66 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
846,10 kr
(exkl. moms)
1 057,62 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 846,10 kr |
| 5 - 9 | 803,65 kr |
| 10 - 24 | 761,42 kr |
| 25 - 49 | 729,37 kr |
| 50 + | 710,66 kr |
- RS-artikelnummer:
- 305-6028
- Tillv. art.nr:
- 81921702
- Tillverkare / varumärke:
- Crouzet
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- FR
Produktdetaljer
Crouzet Pneumatic Position Detector
The Crouzet 81 series 3/2 port pneumatic position detector has operating pressure ranging between 0.18bar and 18bar. It is a normally closed position detector and that has a lever with a roller bearing. This detector is fitted in-line between the cylinder and the control valve and the sensor gives an output when the pressure in this line is exhausted and the cylinder is at the end of the stroke. It is recommended that the practical cylinder load is limited to 60% of the theoretical force for the correct usage of sensors on falling pressure.
Features and Benefits
Maximum flow rate is 200L/min
100% pneumatic
One-touch connections Ø4mm
100% pneumatic
One-touch connections Ø4mm
Specifikationer
Attribute | Value |
|---|---|
| Control Mechanism | Roller Lever |
| Function | 3/2 |
| Manufacturer Series | 81 |
| Maximum Operating Pressure | 8 bar |
| Body Material | Zamak |
| Maximum Flow Rate | 200NL/min |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +50°C |
| Number of Ports | 3/2 |
