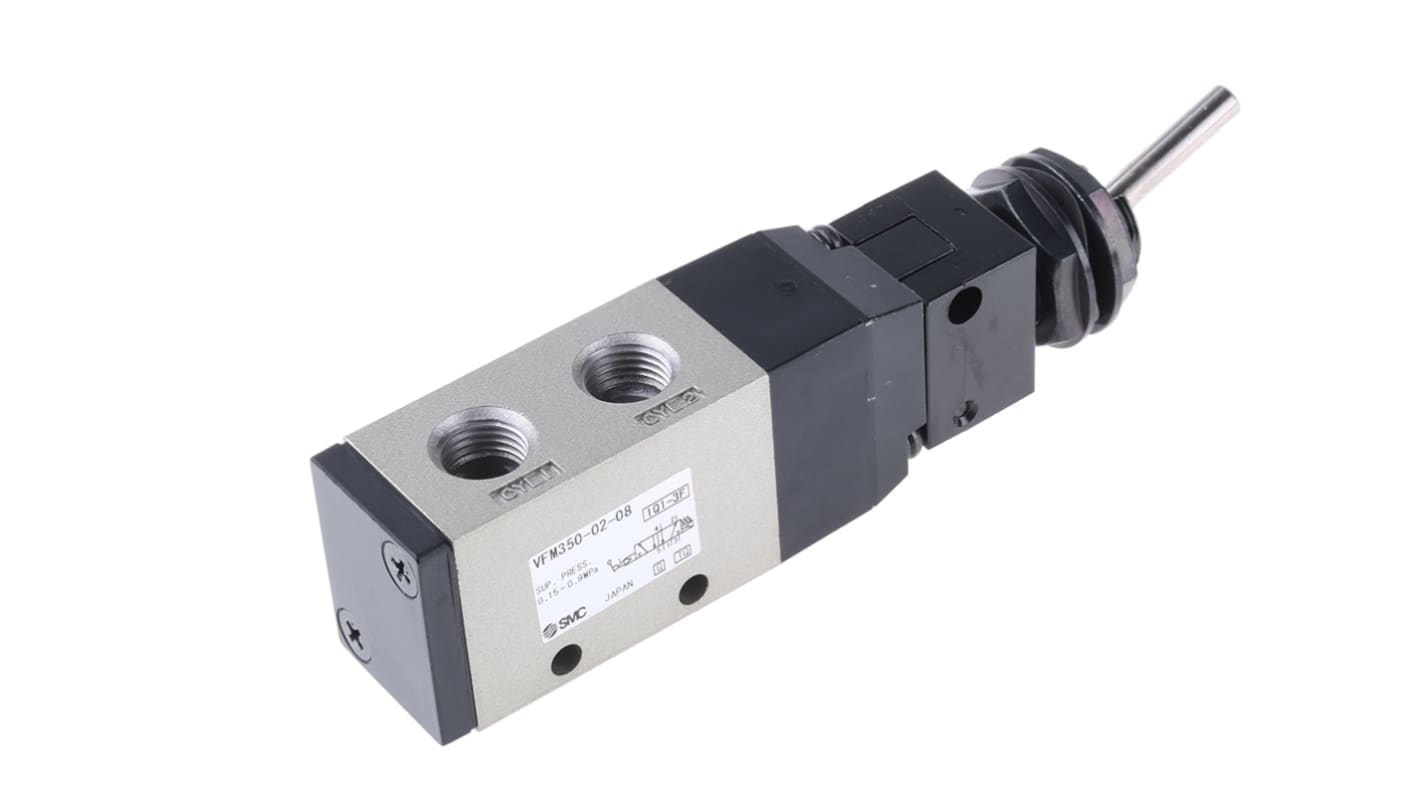

SMC Toggle Lever 5/2 Pneumatic Manual Control Valve VFM300 Series

  • RS-artikelnummer 268-8472
  • Tillv. art.nr VFM350-02-08
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): JP
Produktdetaljer

Pneumatic Toggle Valves

The SMC VFM200 series 5 port toggle lever valves are a compact, mechanical valve with a metal seal style. This series has a large flow capacity and a high cycle rate. The VFM offers an internal or external pilot body option.

Fluid: air, inert gas
Large flow capacity
Operating pressure range: 0.1 to 1.0MPa
Foot bracket or manifold mounting

//media.rs-online.com/t_line/L268847-01.gif
//media.rs-online.com/t_line/L268847-02.gif
Specifikationer
Attribute Value
Control Mechanism Toggle Lever
Function 5/2
Connection Port Thread Rc 1/4
Thread Size 1/4in
Thread Standard Rc
Manufacturer Series VFM300
Maximum Operating Pressure 0.9 MPa
Body Material Aluminium Alloy
Maximum Flow Rate 982NL/min
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
Number of Ports 5/2
Tillfälligt slut i lager – restorder för leverans 2020-02-21
Pris (ex. moms) Each
760,45 kr
(exkl. moms)
950,56 kr
(inkl. moms)
Enheter
Per unit
1 - 4
760,45 kr
5 - 9
737,26 kr
10 +
713,47 kr
