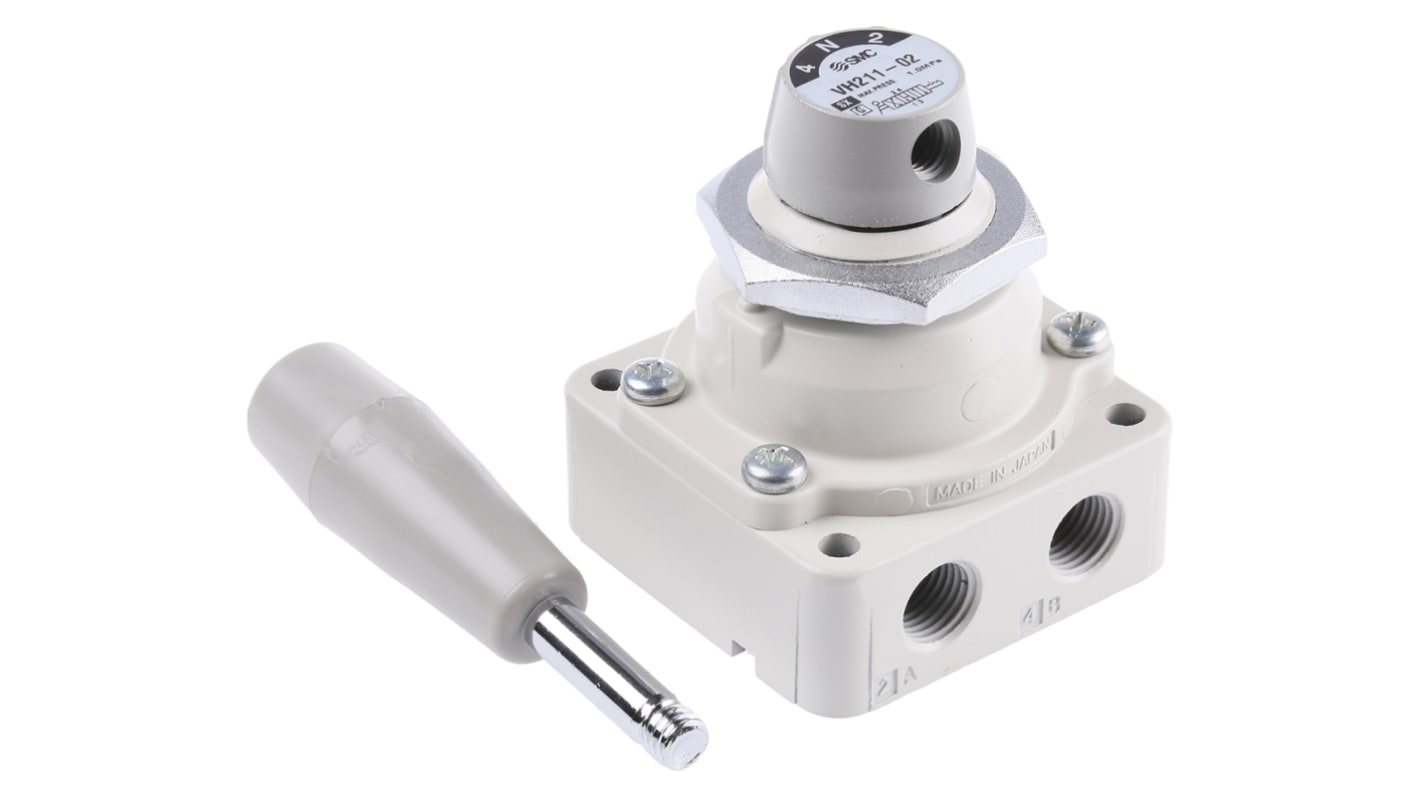

SMC Handle 4/3 Pneumatic Manual Control Valve VH Series, Rc 1/4, 1/4in
- RS-artikelnummer:
- 217-6143
- Tillv. art.nr:
- VH211-02
- Tillverkare / varumärke:
- SMC
8 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
913,14 kr
(exkl. moms)
1 141,42 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 913,14 kr |
| 5 - 9 | 885,15 kr |
| 10 + | 856,75 kr |
- RS-artikelnummer:
- 217-6143
- Tillv. art.nr:
- VH211-02
- Tillverkare / varumärke:
- SMC
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
Produktdetaljer
Series VH Hand Valves
The SMC VH series are compact rotary hand valves with a variety of flow rates. Suitable for applications that require manual directional control. These valves are easy to operate while offering a high tolerance to contamination.
Body mounted or panel mounted options
Proof pressure 1.5 MPa
Operating angle 90 °
Self cleaning
Wiping action
Proof pressure 1.5 MPa
Operating angle 90 °
Self cleaning
Wiping action
SMC VCH Series
Specifikationer
Attribute | Value |
|---|---|
| Control Mechanism | Handle |
| Connection Port Thread | Rc 1/4 |
| Function | 4/3 |
| Thread Size | 1/4in |
| Thread Standard | Rc |
| Manufacturer Series | VH |
| Maximum Operating Pressure | 1 MPa |
| Body Material | Die Cast Aluminium |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
