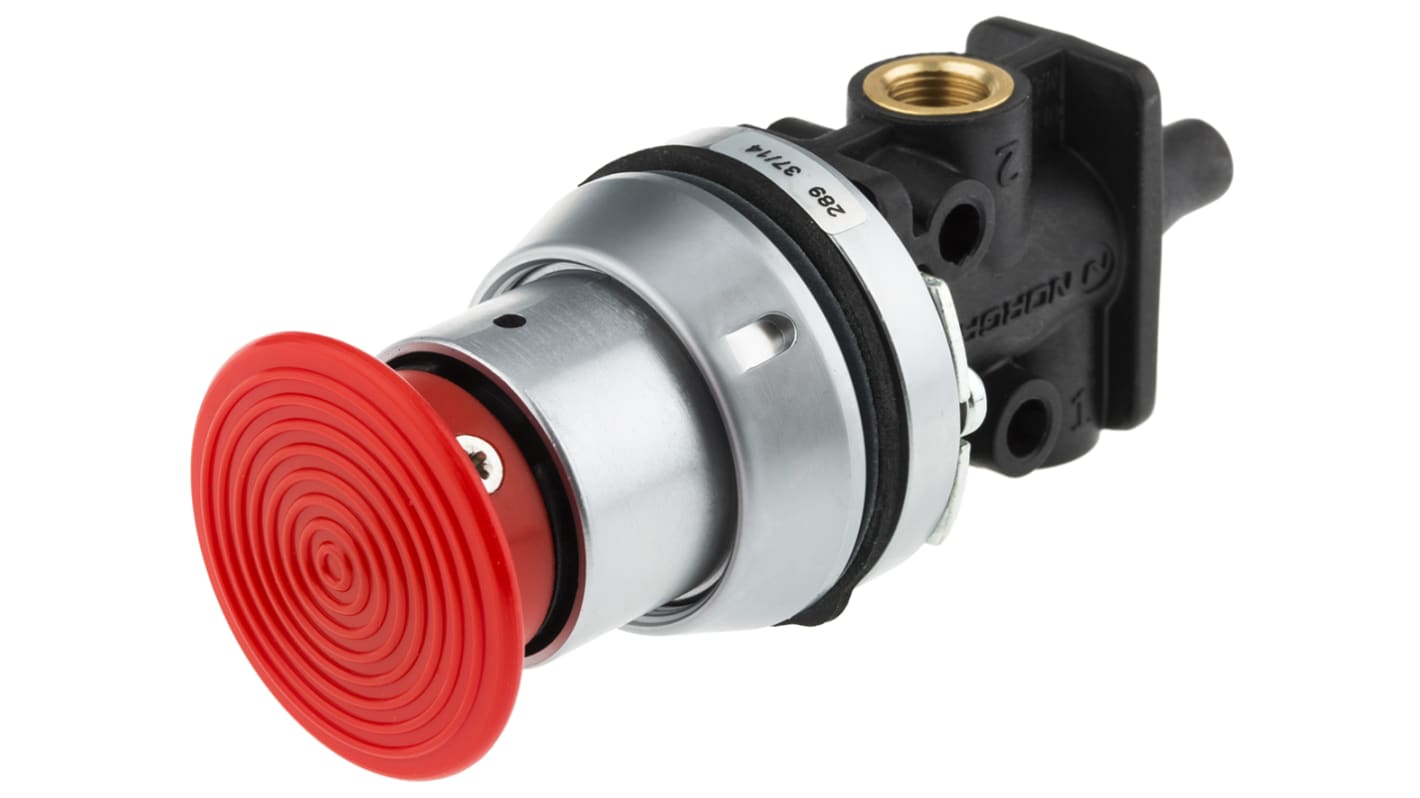

Norgren Push Button 3/2 Pneumatic Manual Control Valve 03 Series

  • RS-artikelnummer 210-2849
  • Tillv. art.nr 03036602
  • Tillverkare / varumärke Norgren
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

Pneumatic Palm Spring Valve

Note

Due to manufacturer change, new body materials are moulded polymer (Fortron PPS), replacing the older metal body

//media.rs-online.com/t_line/L210284-01.gif
//media.rs-online.com/t_line/L210284-02.gif

Push Button & Selector - Norgren

3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.

Specifikationer
Attribute Value
Control Mechanism Push Button
Function 3/2
Connection Port Thread G 1/8
Thread Size 1/8in
Thread Standard G
Manufacturer Series 03
Control Button/Switch Colour Red
Maximum Operating Pressure 10 bar
Body Material Zinc Alloy
Maximum Flow Rate 335L/min
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Number of Ports 3/2
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Pris (ex. moms) Each
882,36 kr
(exkl. moms)
1 102,95 kr
(inkl. moms)
Enheter
Per unit
1 - 4
882,36 kr
5 - 9
855,42 kr
10 +
827,70 kr
Nästa dag-leverans inte möjlig
