Festo Piloted 3/2 Closed, Monostable Pneumatic Manual Control Valve HEE Series, G 3/8, 3/8in, 172962
- RS-artikelnummer:
- 202-2496
- Tillv. art.nr:
- HEE-D-MAXI-24
- Tillverkare / varumärke:
- Festo
5 I lager för avsändande samma dag
11 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
2 004,43 kr
(exkl. moms)
2 505,54 kr
(inkl. moms)
Enheter | Per unit |
1 + | 2 004,43 kr |
- RS-artikelnummer:
- 202-2496
- Tillv. art.nr:
- HEE-D-MAXI-24
- Tillverkare / varumärke:
- Festo
Lagstiftning och ursprungsland
- COO (Country of Origin):
- HU
Produktdetaljer

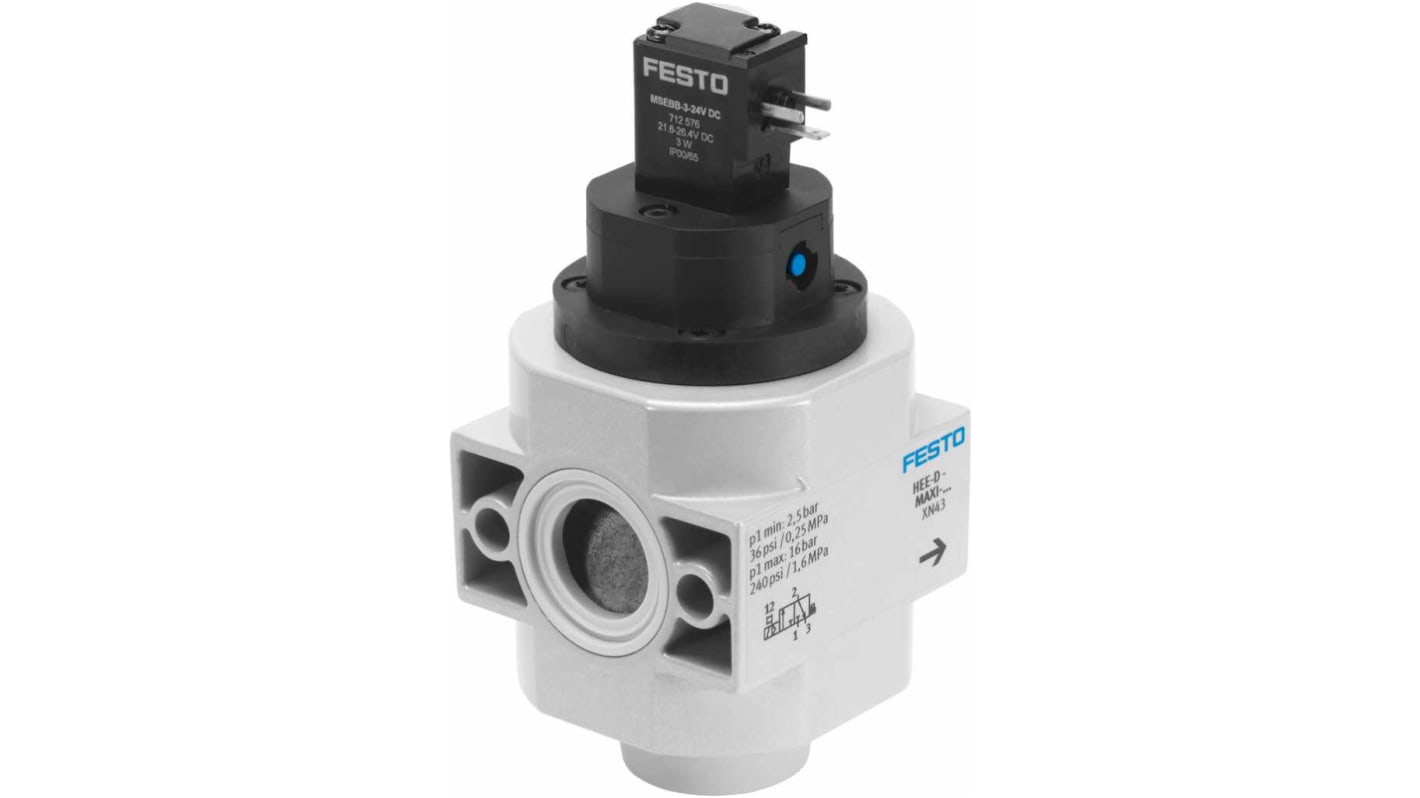

Festo 3/2 Closed Monostable Pneumatic Manual Control Valve - HEE Series - HEE-D-MAXI-24
For pressurising and venting pneumatic installations, choose this electric 3/2-way shutoff valve from Festo. With its piston gate valve design, it provides a tight contact while maintaining durability. As it comes with a solenoid valve, it offers fast response times and is also easy to maintain. The solenoid valve can be repositioned by four 90° turns, so it's a versatile choice when you're putting together pipe connections in modular systems.
A choice of three voltage ranges makes it simple to customise this device to your needs and sturdy aluminium die-cast housing ensures a long service life. The shutoff valve is electrically actuated for easy use and is quick to reset using a mechanical spring. For noise-free operation, simply attach a muffler or duct the exhaust air at port 3.
A choice of three voltage ranges makes it simple to customise this device to your needs and sturdy aluminium die-cast housing ensures a long service life. The shutoff valve is electrically actuated for easy use and is quick to reset using a mechanical spring. For noise-free operation, simply attach a muffler or duct the exhaust air at port 3.
Broad operating pressure range of 2.5 bar to 16 bar for use in a variety of applications
Soft-sealing principle that's suitable for normal pressures and temperatures
Corrosion and chemical-resistant nitrile butadiene rubber (NBR) seal material that withstands harsh conditions
Wide ambient temperature range of -10°C to +60°C for use in tough environmental conditions
Soft-sealing principle that's suitable for normal pressures and temperatures
Corrosion and chemical-resistant nitrile butadiene rubber (NBR) seal material that withstands harsh conditions
Wide ambient temperature range of -10°C to +60°C for use in tough environmental conditions
Specifikationer
Attribute | Value |
---|---|
Control Mechanism | Piloted |
Connection Port Thread | G 3/8 |
Function | 3/2 Closed, Monostable |
Thread Size | 3/8in |
Thread Standard | G |
Manufacturer Series | HEE |
Maximum Operating Pressure | 16 bar |
Body Material | Aluminium |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Number of Ports | 3 |
Number of Positions | 2 |
Model Number p | 172962 |
