Produktdetaljer

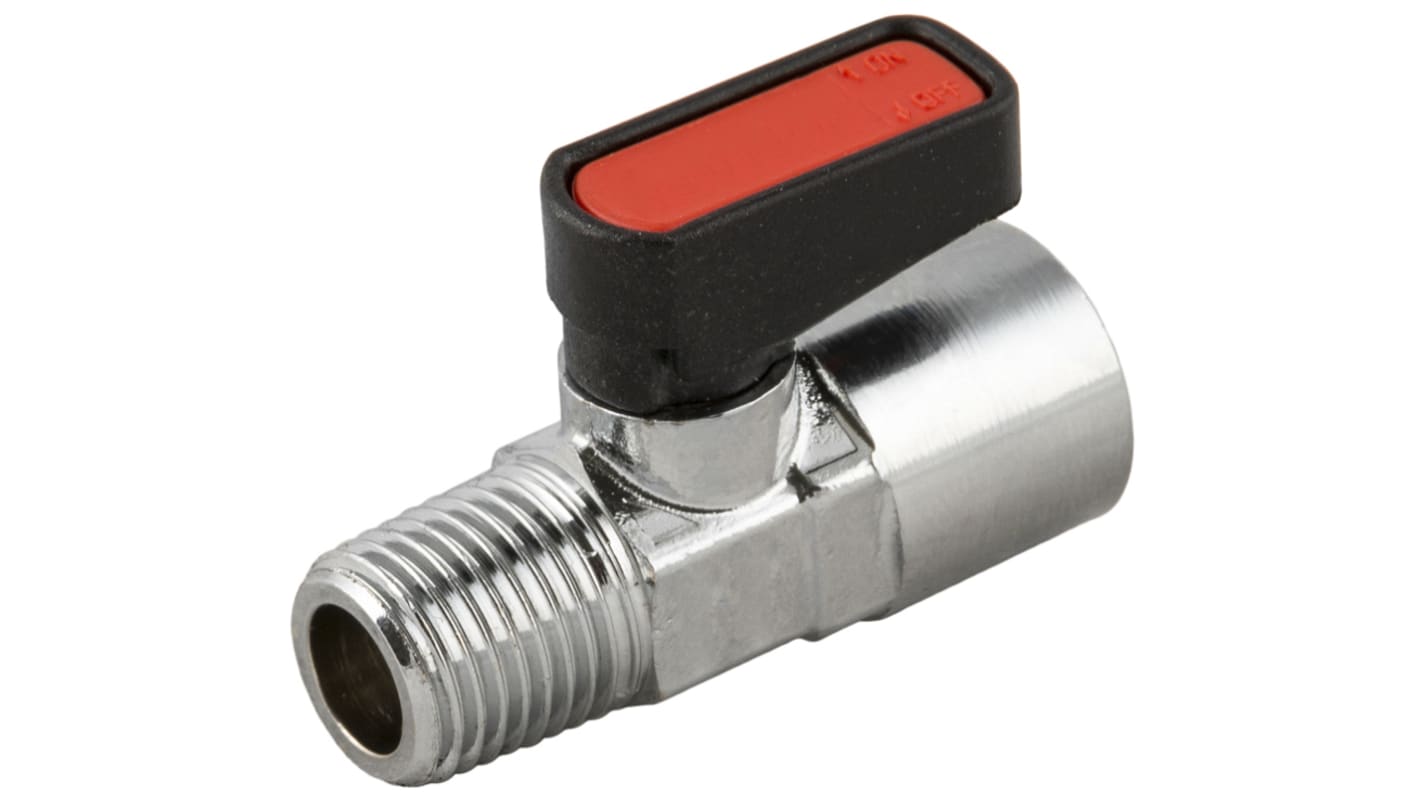

RS PRO Handle Pneumatic Manual Control Valve
These RS PRO manual control valves let you manage the pressure in your pneumatic system. They're tapered for a pressure-tight joint, so there's no need to worry about leaks or sudden changes in pressure.
They're simple to use thanks to a handle that allows you to open and close the ball valves. The lever on each valve is red in colour with on and off direction arrows for easy operation. The valve bodies are made from durable brass and plated with chrome and nickel for corrosion resistance. They can withstand temperatures between -20°C and +80°C, so they're a good choice for harsh industrial environments.
You'll commonly find these valves used in the construction, automotive and food production industries. They're suitable for high-pressure pneumatic systems that operate to a maximum pressure of 20 bar.
They're simple to use thanks to a handle that allows you to open and close the ball valves. The lever on each valve is red in colour with on and off direction arrows for easy operation. The valve bodies are made from durable brass and plated with chrome and nickel for corrosion resistance. They can withstand temperatures between -20°C and +80°C, so they're a good choice for harsh industrial environments.
You'll commonly find these valves used in the construction, automotive and food production industries. They're suitable for high-pressure pneumatic systems that operate to a maximum pressure of 20 bar.
Features and Benefits
• Brass body material
• R 1/8 connection port thread
• Red control button/switch colour
• Handle control mechanism
• Maximum flow rate of 1.6 m³/h
• Maximum operating pressure of 20 bar
• Minimum operating temperature of -20°C
• Maximum operating temperature of +80°C
• Two ports
• Thread size of 3.175 mm
• International Organisation for Standardisation (ISO) 7 thread standard
• R 1/8 connection port thread
• Red control button/switch colour
• Handle control mechanism
• Maximum flow rate of 1.6 m³/h
• Maximum operating pressure of 20 bar
• Minimum operating temperature of -20°C
• Maximum operating temperature of +80°C
• Two ports
• Thread size of 3.175 mm
• International Organisation for Standardisation (ISO) 7 thread standard
Specifikationer
Attribute | Value |
---|---|
Control Mechanism | Handle |
Connection Port Thread | R 1/8 |
Thread Size | 3.175mm |
Thread Standard | ISO 7 |
Control Button/Switch Colour | Red |
Maximum Operating Pressure | 20 bar |
Body Material | Brass |
Maximum Flow Rate | 1.6m³/h |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +80°C |
Number of Ports | 2 |
