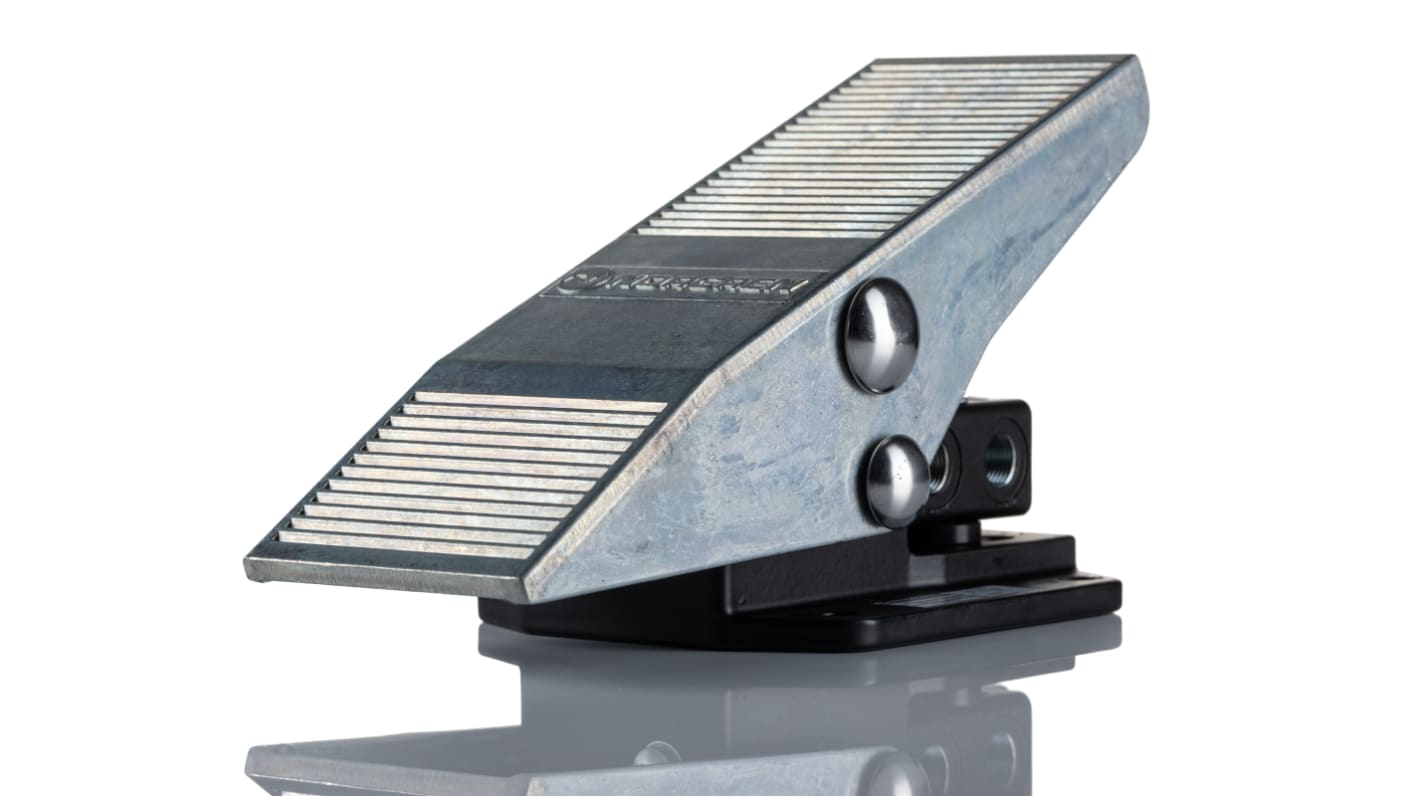

Norgren Pedal 3/2 Pneumatic Manual Control Valve 03 Series

  • RS-artikelnummer 724-217
  • Tillv. art.nr 03048302
  • Tillverkare / varumärke Norgren
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

Foot Pedal Valves

Ideal for use with cylinders up to 50mm bore.

High flow capacity
Lightweight corrosion resistant materials

//media.rs-online.com/t_line/L724217-02.gif

Norgren, Parker & Herga

Foot switches with a maximum operating pressure of 10 bar.

Specifikationer
Attribute Value
Control Mechanism Pedal
Function 3/2
Connection Port Thread G 1/8
Thread Size 1/8in
Thread Standard G
Manufacturer Series 03
Control Button/Switch Colour Black
Maximum Operating Pressure 10 bar
Body Material Zinc Alloy
Maximum Flow Rate 335L/min
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Number of Ports 3/2
4 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 099,18 kr
(exkl. moms)
1 373,98 kr
(inkl. moms)
Enheter
Per unit
1 - 4
1 099,18 kr
5 - 9
1 065,61 kr
10 +
1 030,99 kr
