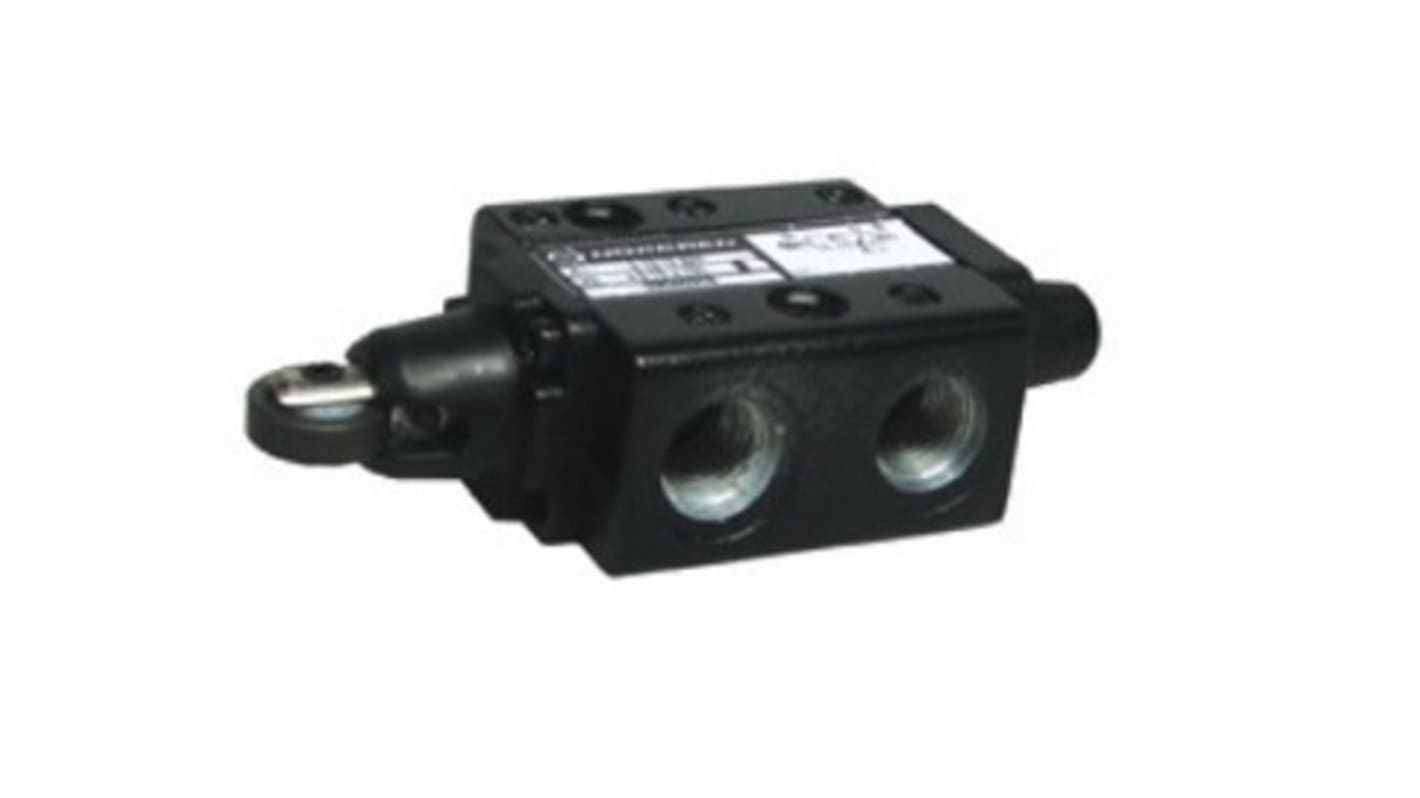

Norgren Roller 3/2 Pneumatic Manual Control Valve 03 Series

  • RS-artikelnummer 722-491
  • Tillv. art.nr 03060202
  • Tillverkare / varumärke Norgren
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

Roller/Spring Plunger Valves

Valves suitable for use with cylinders up to 50mm bore for most applications. Suitable for multi-directional flow and dual supply applications. High flow capacity. Made from lightweight, corrosion-resistant materials.

Note

Due to manufacturer change, valves of 3/2 function now have moulded polymer (Fortron PPS) body which replaces the older metal body

Specifikationer
Attribute Value
Control Mechanism Roller
Function 3/2
Connection Port Thread G 1/4
Thread Size 1/4in
Thread Standard G
Manufacturer Series 03
Maximum Operating Pressure 10 bar
Body Material Zinc Alloy
Maximum Flow Rate 965L/min
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Number of Ports 3/2
7 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
691,03 kr
(exkl. moms)
863,79 kr
(inkl. moms)
Enheter
Per unit
1 - 4
691,03 kr
5 - 9
669,98 kr
10 +
648,17 kr
