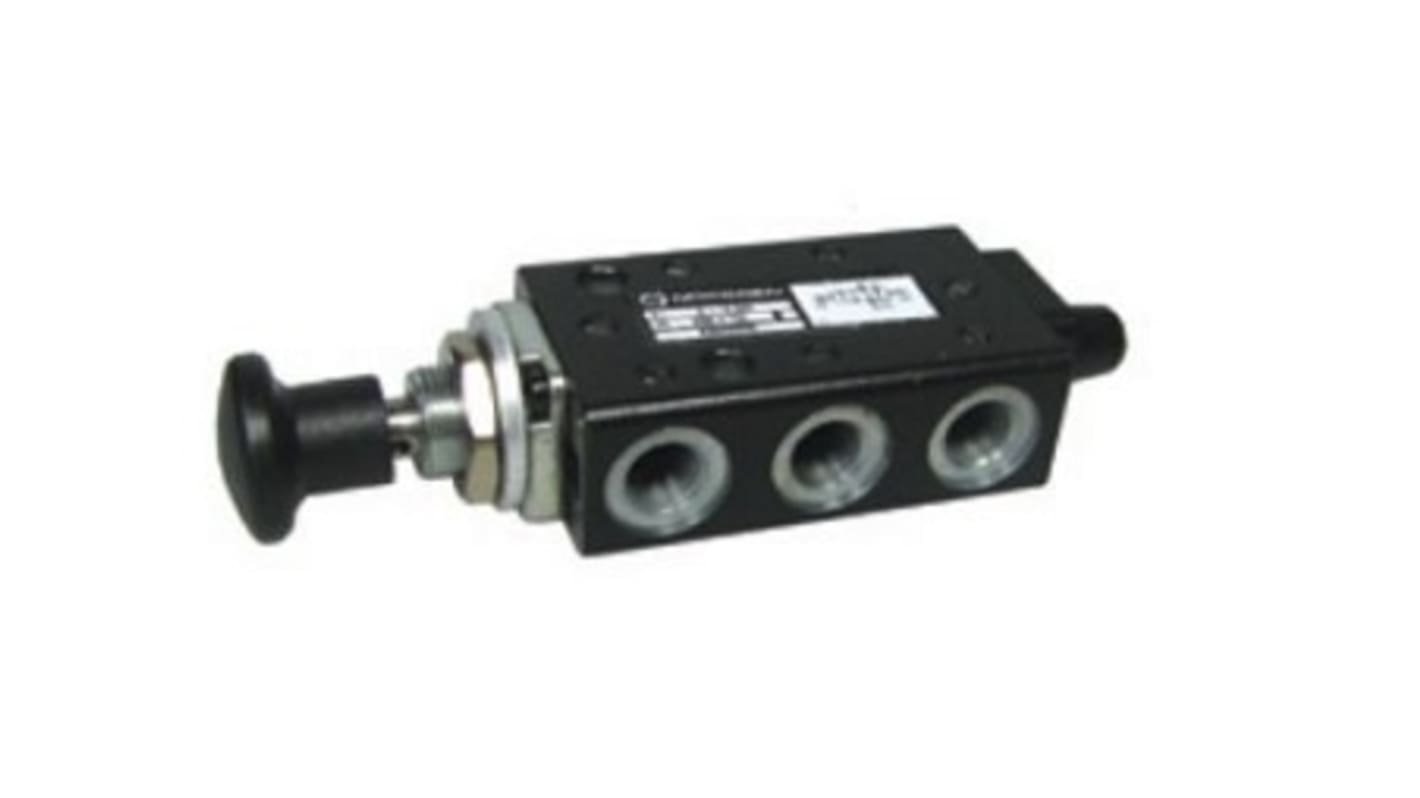

Norgren Knob 5/2 Pneumatic Manual Control Valve X30 Series

  • RS-artikelnummer 722-407
  • Tillv. art.nr X3046502
  • Tillverkare / varumärke Norgren
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

Button/Button Valve

Note

Due to manufacturer change, valves of 3/2 function now have moulded polymer (Fortron PPS) body which replaces the older metal body

//media.rs-online.com/t_line/L722340-01.gif
//media.rs-online.com/t_line/L722429-02.gif

Push Button & Selector - Norgren

3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.

Specifikationer
Attribute Value
Control Mechanism Knob
Function 5/2
Connection Port Thread G 1/8
Thread Size 1/8in
Thread Standard G
Manufacturer Series X30
Control Button/Switch Colour Black
Maximum Operating Pressure 10 bar
Body Material Zinc Alloy
Maximum Flow Rate 335L/min
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Number of Ports 5/3
2 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
608,44 kr
(exkl. moms)
760,55 kr
(inkl. moms)
Enheter
Per unit
1 - 4
608,44 kr
5 - 9
589,87 kr
10 +
570,75 kr
