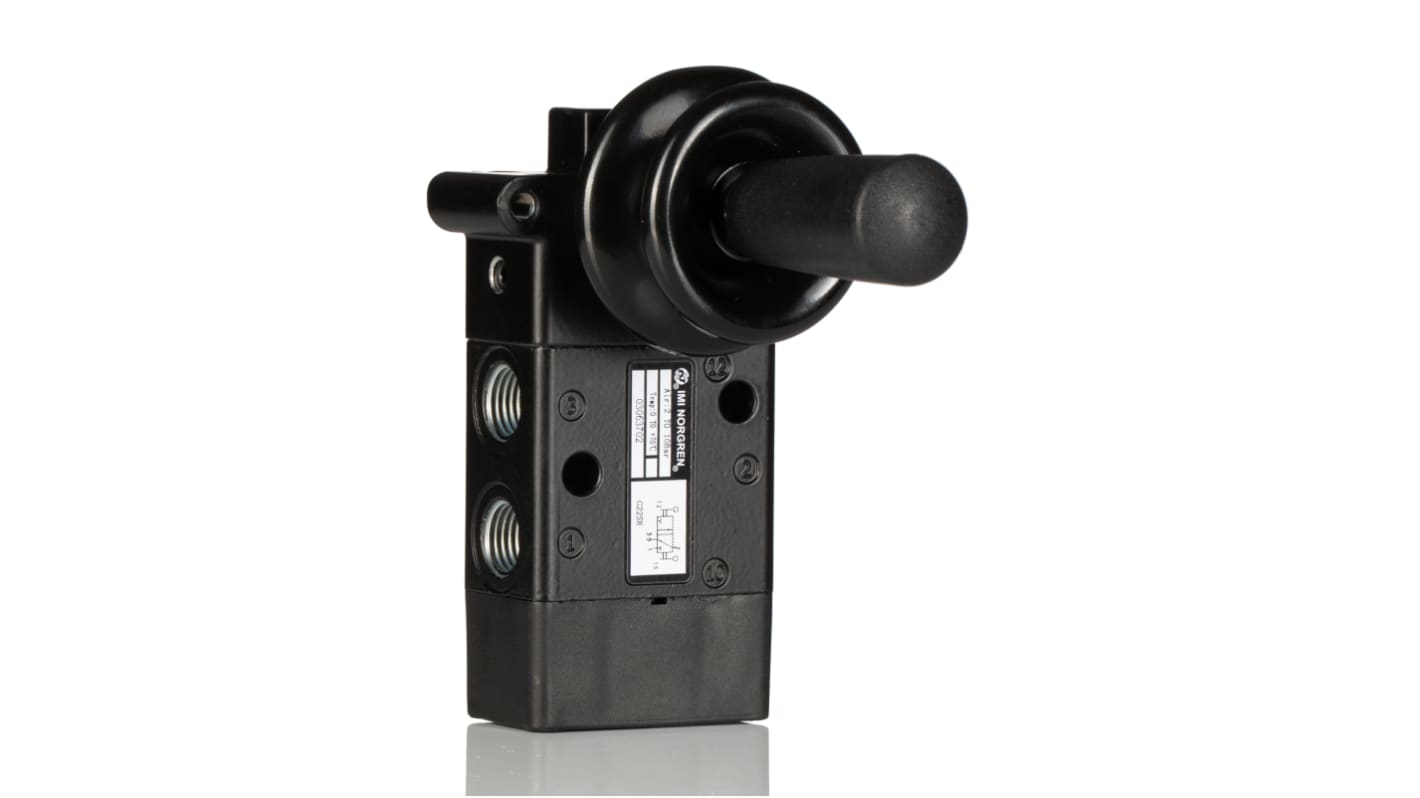

Norgren Lever 3/2 Pneumatic Manual Control Valve 03 Series

  • RS-artikelnummer 722-378
  • Tillv. art.nr 03063802
  • Tillverkare / varumärke Norgren
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

Norgren Super X Series Lever Actuated Valves

Norgren Super X series 2 way manually actuated spool valves with lever switch. Suitable for multi-directional flow and dual supply applications. The plunger on this valve is designed for axial loading.

Features and Benefits

  • Made from lightweight, corrosion-resistant materials
  • High flow capacity

  • Maximum operating pressure 10 bar

  • Temperature range 0°C to +70°C

//media.rs-online.com/t_line/L722378-01.gif
//media.rs-online.com/t_line/LD722441-01.gif
Specifikationer
Attribute Value
Control Mechanism Lever
Function 3/2
Connection Port Thread G 1/4
Thread Size 1/4in
Thread Standard G
Manufacturer Series 03
Control Button/Switch Colour Black
Maximum Operating Pressure 10 bar
Body Material Zinc Alloy
Maximum Flow Rate 965L/min
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Number of Ports 3/2
2 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 074,92 kr
(exkl. moms)
1 343,65 kr
(inkl. moms)
Enheter
Per unit
1 - 4
1 074,92 kr
5 - 9
1 042,07 kr
10 +
1 008,34 kr
