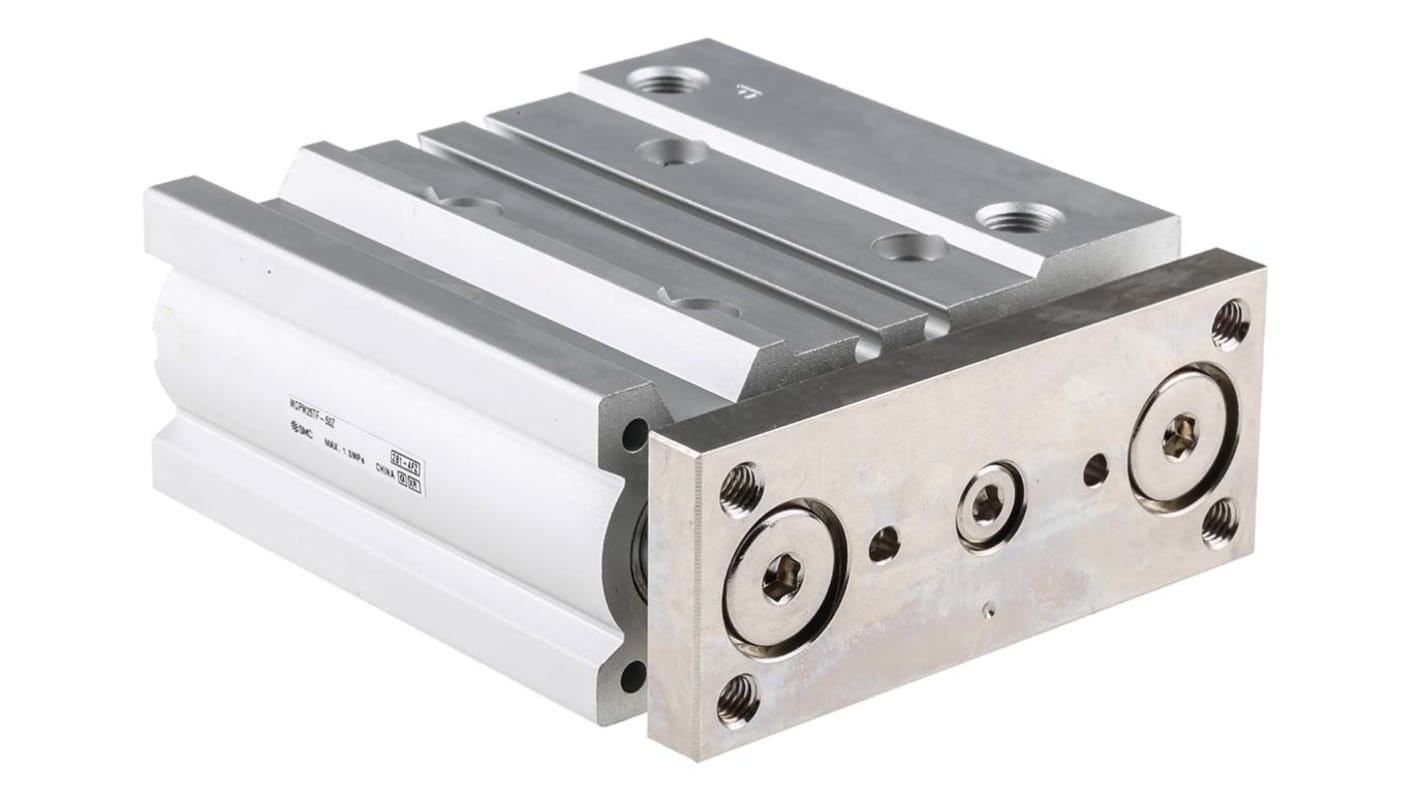

SMC Pneumatic Guided Cylinder 25mm Bore, 50mm Stroke, MGP Series, Double Acting

  • RS-artikelnummer 758-0720
  • Tillv. art.nr MGPM25TF-50Z
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

SMC MGP Compact Guide Cylinder with End Lock

SMC MGP Compact Guide slide-bearing cylinders with End Lock (that holds the cylinder in position, even if the air supply is disconnected), offer mounting points on the top, side, or bottom (and a T-slot mount option), with pneumatic ports on the top or side. CQM double-acting cylinders are non-rotatable, offer a high resistance to side loads, and are able to withstand lateral loading forces that are more than twice the force experienced by conventional stopper cylinders. SMC MGP cylinders with End Lock are suitable for conveyor line stopping, lifting, positioning, or push-off applications.

Note

May be used with reed switch 161-782, available in most markets.

Specifikationer
Attribute Value
Manufacturer Series MGP
Action Double
Bore 25mm
Stroke 50mm
Maximum Operating Pressure 1 MPa
Cushioning Type Rubber
Dimensions 103.5 x 58 x 26mm
Weight 1.3kg
Maximum Operating Temperature +60°C
Length 103.5mm
Minimum Operating Temperature -10°C
Width 26mm
Height 58mm
4 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
2 376,73 kr
(exkl. moms)
2 970,91 kr
(inkl. moms)
Enheter
Per unit
1 +
2 376,73 kr
