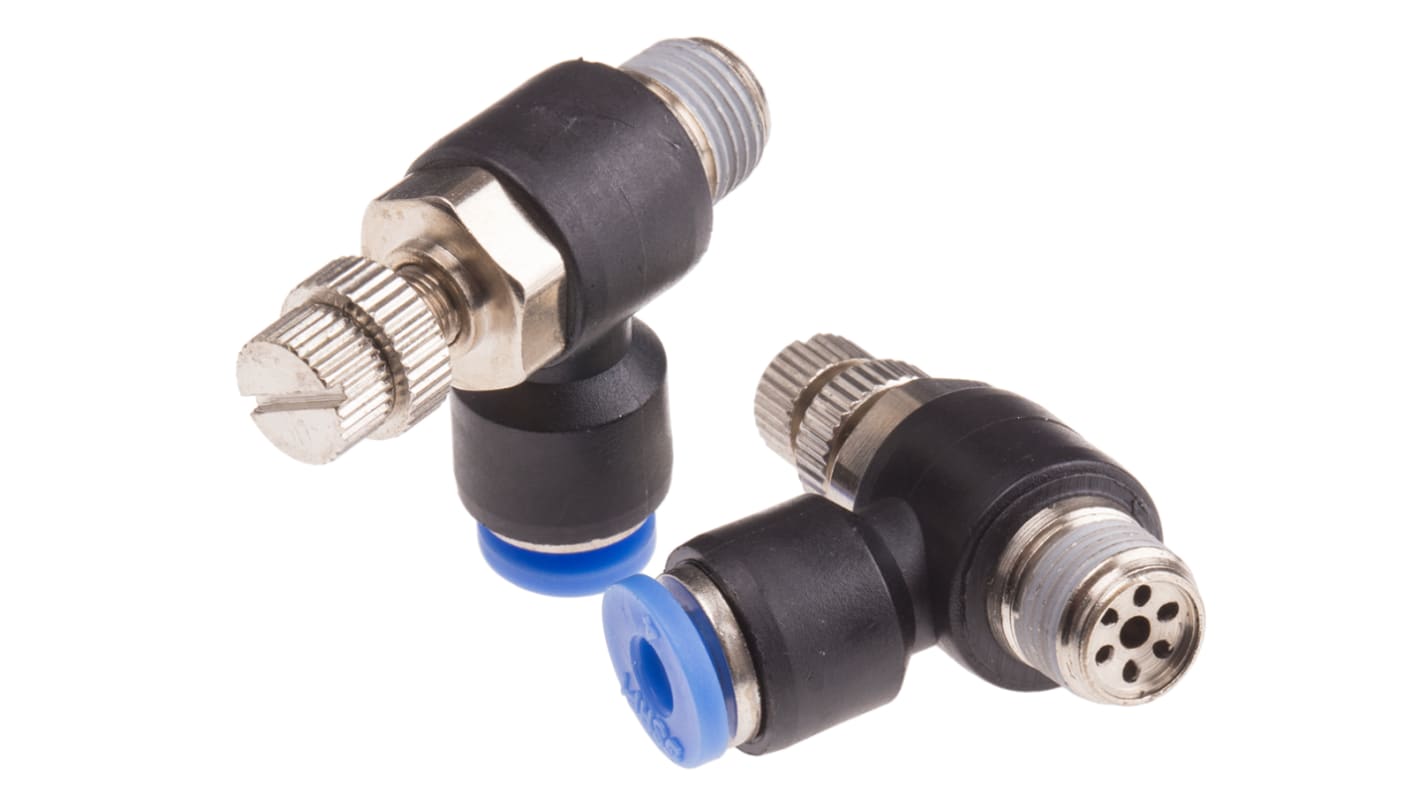

RS PRO SC Series Speed Controller x 4mm Tube Outlet Port

  • RS-artikelnummer 916-0959
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): TW
Produktdetaljer

RS Pro Speed Controllers – Metric System

Features and Benefits

• Accurate regulation of an optimal airflow rate for precise motion control
• Compact design provides comparable range of speed to larger ones

Specification

• Applicable for use with air
• Working pressure range, 0-150 psi
• Negative pressure, -29.5 in Hg
• Working temperature range, 32°F to 140°F

Product Application Information

Used for the movement of machines such as cylinders and air actuators.

Threaded Tube-to-Tube & Adaptors

The push-on and screw collar design of these fittings makes them secure and suitable for instrumentation, vacuum and general purpose applications, and they can be used with nylon or polyurethane tubing.

Operating Temperature Range -18 to +70°C
Operating Pressure of -1 to 15 bar

Specifikationer
Attribute Value
Manufacturer Series SC
Type Supply
Inlet Port Type Threaded
Outlet Port Type Tube
Tube Outlet Port 4mm
Minimum Outlet Pressure -1bar
Maximum Outlet Pressure 15bar
Threaded Inlet Thread Gender Male
Threaded Inlet Thread Size 1/8 in
Body Material Polyoxymethylene
180 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 10)
57,134 kr
(exkl. moms)
71,418 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 +
57,134 kr
571,34 kr
