- RS-artikelnummer:
- 916-0956
- Tillverkare / varumärke:
- RS PRO
- RS-artikelnummer:
- 916-0956
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- TW
Produktdetaljer

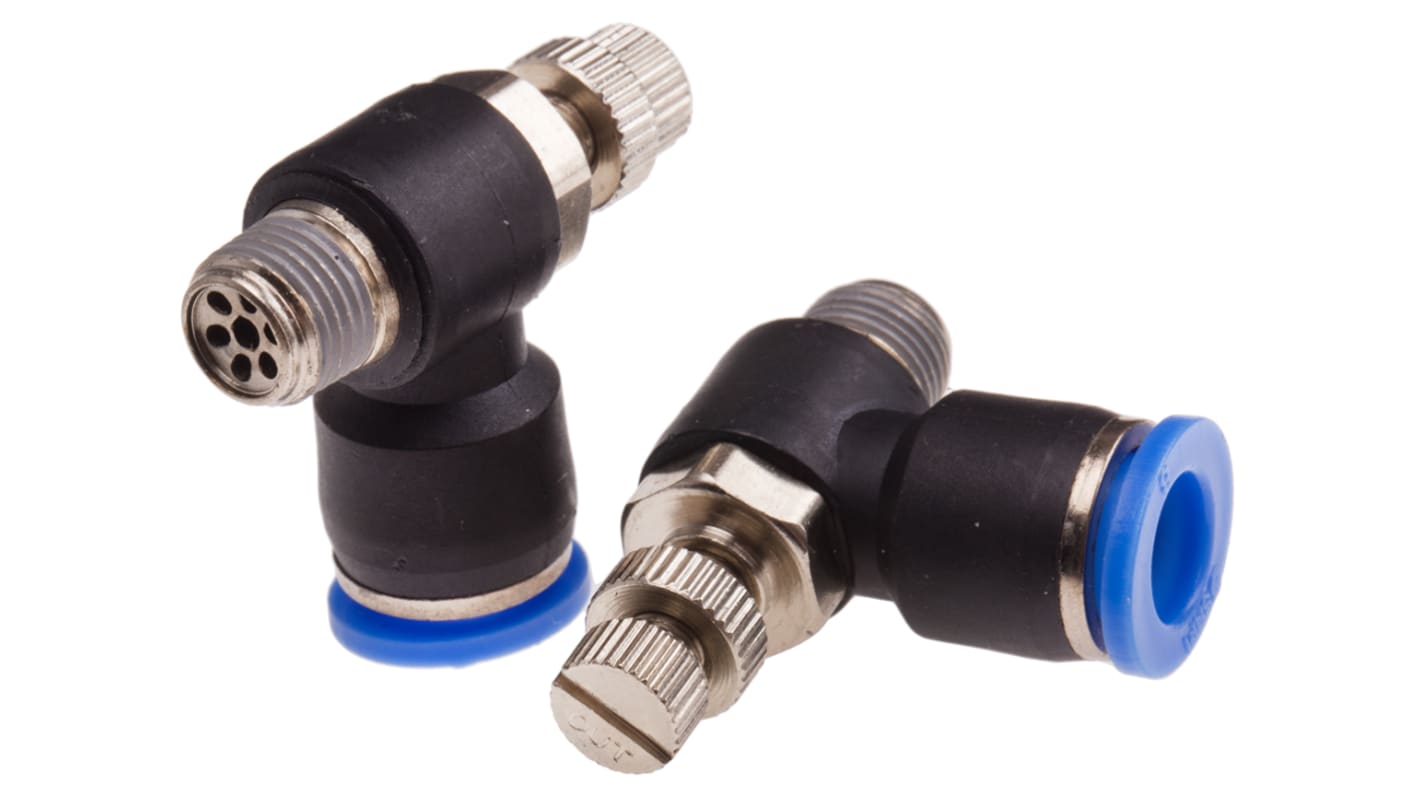

RS PRO Speed Controller x 8 mm Tube Outlet Port
Adjust the flow of compressed air to a pneumatic actuator with this speed controller tube outlet port from RS PRO. It regulates the ideal air flow rate, so you can benefit from precise motion control. The speed controller comes with a push-on and screw collar, which means it's secure enough to use with instrumentation and vacuums, as well as nylon tubing. You'll find it in industrial environments from chemical manufacturing plants to pharmaceutical production firms and labs.
For space-saving, this compactly designed product has a comparable range of speeds to much larger models. It's made from hardwearing polyoxymethylene for excellent abrasion and wear resistance.
The component has an operating temperature range of -18°C to +70°C, so it's suitable for use in extreme cold. It moves a range of machines including cylinders and air actuators.
For space-saving, this compactly designed product has a comparable range of speeds to much larger models. It's made from hardwearing polyoxymethylene for excellent abrasion and wear resistance.
The component has an operating temperature range of -18°C to +70°C, so it's suitable for use in extreme cold. It moves a range of machines including cylinders and air actuators.
Features and Benefits
Polyoxymethylene body material
Threaded inlet port type
Maximum outlet pressure of 15 bar
Minimum outlet pressure of -1 bar
Tube outlet port type
Male threaded inlet thread gender
Threaded inlet thread size of 1/8 in
Tube outlet port of 8 mm
Flow controller type
Threaded inlet port type
Maximum outlet pressure of 15 bar
Minimum outlet pressure of -1 bar
Tube outlet port type
Male threaded inlet thread gender
Threaded inlet thread size of 1/8 in
Tube outlet port of 8 mm
Flow controller type
Specifikationer
Attribute | Value |
---|---|
Type | Flow Controller |
Inlet Port Type | Threaded |
Tube Outlet Port | 8mm |
Outlet Port Type | Tube |
Minimum Outlet Pressure | -1bar |
Maximum Outlet Pressure | 15bar |
Threaded Inlet Thread Gender | Male |
Body Material | Polyoxymethylene |
Threaded Inlet Thread Size | 1/8 in |
