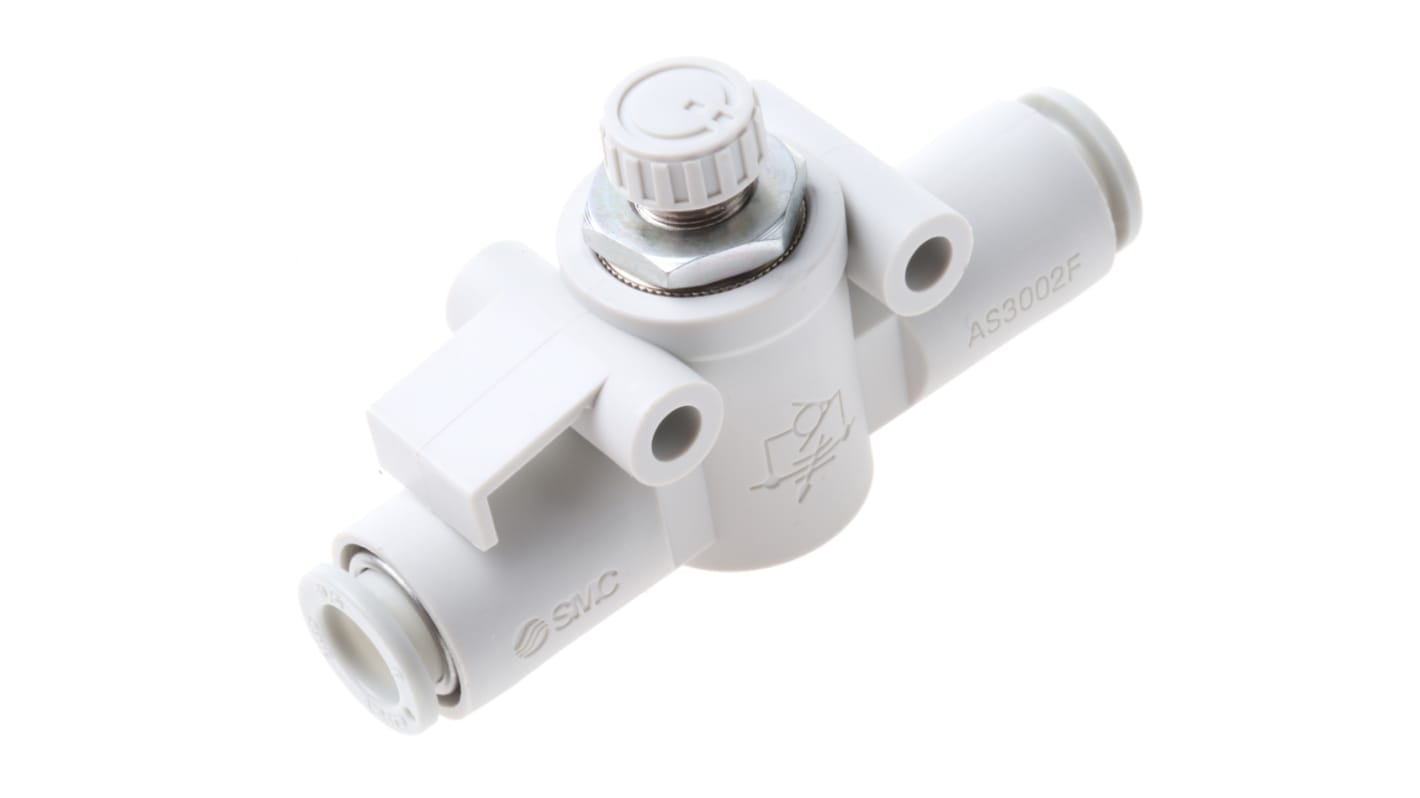

SMC AS Series Flow Controller, 8mm Tube Inlet Port x 8mm Tube Outlet Port

  • RS-artikelnummer 748-0728
  • Tillv. art.nr AS3002F-08
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

In-line Speed Controller with Push-In Fittings, Straight

AS series inline speed controllers from SMC. This series is lightweight and has the benefit of index plates to help identify points when multiple controllers are installed. AS inline flow controllers can be mounted in four different ways so can be used in various installations.

Features and Benefits

• Minimises installation time and cost
• Accepts nylon and polyurethane tubing
• Wide variety of sizes
• Speed accurately controlled even at low velocity
• Constant speed easily set
• Retaining function prevents loss of needle

Flow Regulators & Restrictors - SMC

Regulators for controlling the flow of compressed air to pneumatic actuators. SMC’s AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.

Specifikationer
Attribute Value
Manufacturer Series AS
Type Exhaust
Inlet Port Type Tube
Tube Inlet Port 8mm
Outlet Port Type Tube
Tube Outlet Port 8mm
Minimum Outlet Pressure 0.1MPa
Maximum Outlet Pressure 1MPa
Tillfälligt slut i lager – restorder för leverans 2019-11-14
Pris (ex. moms) Each
152,66 kr
(exkl. moms)
190,82 kr
(inkl. moms)
Enheter
Per unit
1 - 4
152,66 kr
5 - 9
148,00 kr
10 +
143,23 kr
