Festo GR Series Flow Valve, 151215
- RS-artikelnummer:
- 175-4520
- Tillv. art.nr:
- GR-1/8-B
- Tillverkare / varumärke:
- Festo
9 I lager för avsändande samma dag
29 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
568,44 kr
(exkl. moms)
710,55 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 568,44 kr |
- RS-artikelnummer:
- 175-4520
- Tillv. art.nr:
- GR-1/8-B
- Tillverkare / varumärke:
- Festo
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- IN
Produktdetaljer

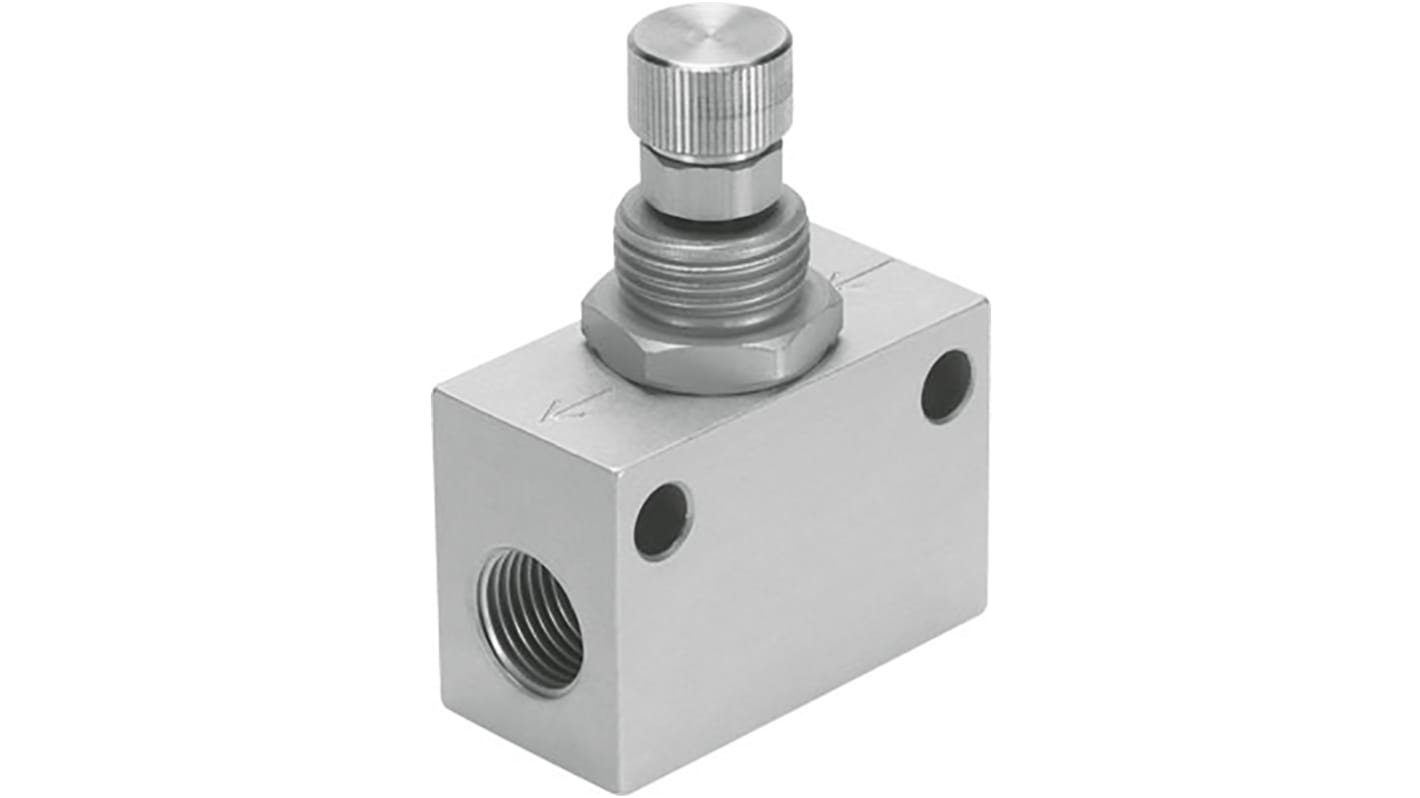

FESTO GR One Way Flow Control Valve, Inline Installation
Introducing the FESTO GR series. The series features a range of one-way flow control valve fittings. The valve fittings are combined within a housing. This allows the flow and return speed to be set separately for single or double acting cylinders. The GR series facilitates an efficient and reliable pressure system for compressed air and water.
Features and Benefits
- This range by FESTO includes one way pneumatic flow control valves
- Maximum flexibility for pneumatic fittings
- Wide operating temperature range
- Available with a variety of different thread and diameter connector sizes, made from robust, solid materials
- Through-hole and front panel mounting
- Variations of tube and threading connection type options are available within the GR series
How do one way flow control valves work?
Flow control valves automatically adjust to variations in pressure and temperature in order to regulate speed, which is done through restrictions on the flow rate of compressed air. With a one-way flow control valve, the flow control function only works in one direction.
One-way flow control valve - GR-1/8-B
- Knurled screw adjusting element
- Standard nominal flow rate for this control valve is 210 l/min in the flow control direction
- Q1/8 pneumatic connection
Flow Regulators & Restrictors - Festo
Specifikationer
Attribute | Value |
|---|---|
| Type | Flow Controller |
| Manufacturer Series | GR |
| Body Material | Aluminium Alloy |
| Model Number p | 151215 |
