Produktdetaljer

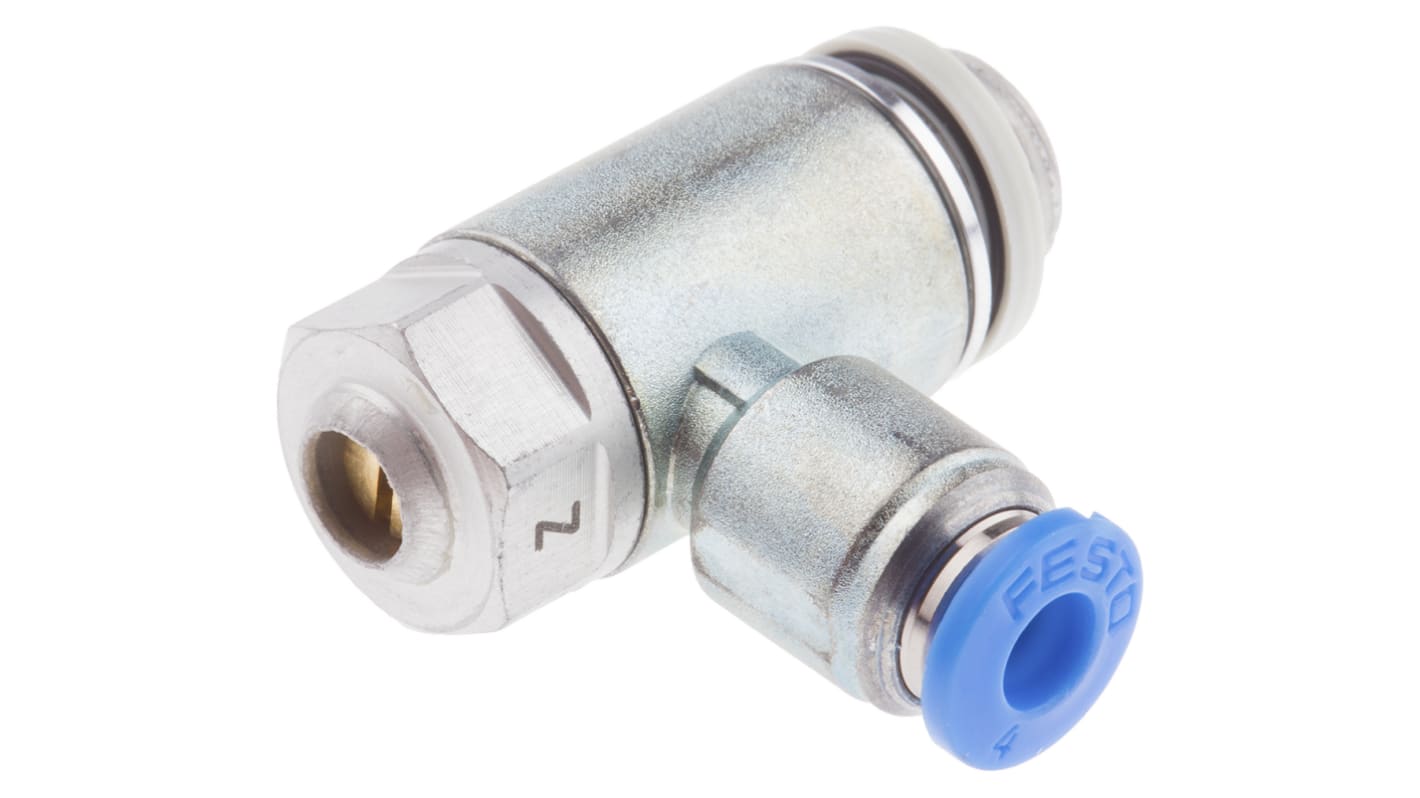

Festo Flow Regulator, 4 mm Tube Inlet Port - GRLZ Series - GRLZ-1/8-QS-4-D
Choose this Festo regulator for precise control of compressed-air flow. It's suitable for regulating the piston speed of a pneumatic drive during advance and return strokes. This device can be used with either exhaust or supply air direction and has an operating pressure range of 0.2 bar to 10 bar. An adjusting screw lets you manually set the pressure output with the help of a screwdriver. The metal body and zinc die-cast swivel fitting make the unit robust and long-lasting.
Threaded fitting for hassle-free coupling and uncoupling
Lightweight and compact for improved compressed-air system efficiency
Suitable for slow, medium or fast piston movement
Nitrile rubber (NBR) seals resist abrasion and ensure an airtight lock when the valve is closed
Lightweight and compact for improved compressed-air system efficiency
Suitable for slow, medium or fast piston movement
Nitrile rubber (NBR) seals resist abrasion and ensure an airtight lock when the valve is closed
Application Information
Materials handling
Robotic automation
Manufacturing industry
Electronics industry
Robotic automation
Manufacturing industry
Electronics industry
What's the difference between a pneumatic and electric drive?
Pneumatic and electric drives perform similar functions but differ in terms of strength. When compressed air is properly controlled and maintained, a pneumatic drive is capable of delivering higher force densities and speeds for lower reduced energy use and a longer service life.
Specifikationer
Attribute | Value |
---|---|
Type | Flow Controller |
Inlet Port Type | Tube |
Tube Inlet Port | 4mm |
Manufacturer Series | GRLZ |
Outlet Port Type | Threaded |
Threaded Outlet Port | G 1/8 |
Minimum Outlet Pressure | 0.2bar |
Maximum Outlet Pressure | 10bar |
Threaded Outlet Thread Standard | G |
Threaded Outlet Thread Gender | Male |
Model Number p | 193157 |
Standards Met | ISO8573-1:2010 |
Body Material | Aluminium Alloy |
Threaded Outlet Thread Size | 1/8 in |
