Hengstler 6 digits Pneumatic Counter, -15 → +60°C

  • RS-artikelnummer 726-336
  • Tillv. art.nr 0 495 465
  • Tillverkare / varumärke Hengstler
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer
//media.rs-online.com/t_line/L726336-01.gif

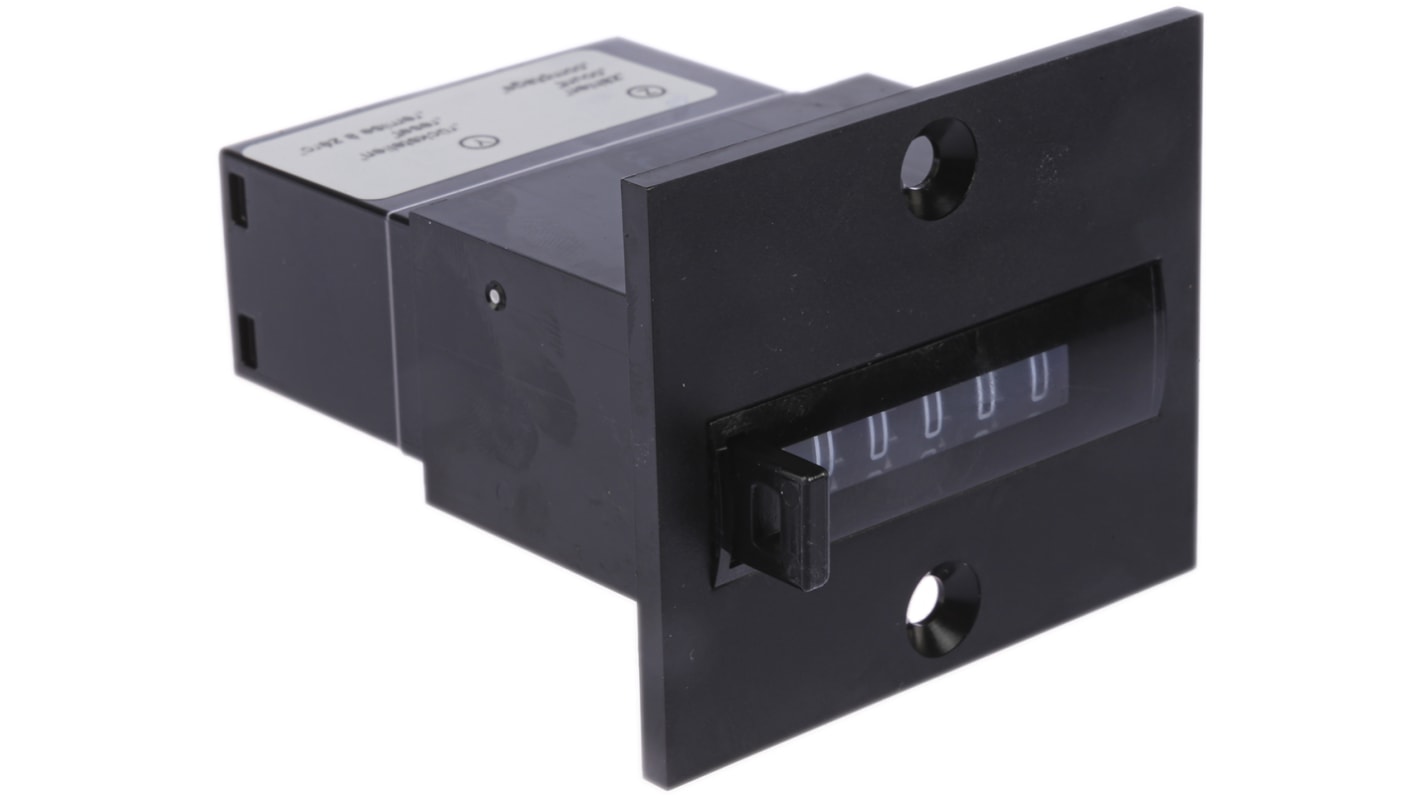

Hengstler Pneumatic Counter

The Hengstler 495 series 6-digit totalizing pneumatic counter maintenance-free counter has front-panel and pneumatic reset capability. This counter, being completely pneumatic in operation is particularly suited to explosion risk areas where electrical pulse counters are not permitted.

Features and Benefits

Minimum pulse length is 8 milliseconds
Minimum reset pulse length is 180 milliseconds
Minimum time between pulses is 50 milliseconds
Operating pressure ranges between 2bar and 8bar (oil-free air, filtered to 40μm)
Operating temperature ranges between -15°C and 60°C
Panel cut-out size is 52mm x 27mm
Push-in connectors (count/reset)
Screw connection hose coupler or rapid-fit connector
Simple installation

Certifications

IP55 rated

Specifikationer
Attribute Value
Manufacturer Series 495
Number of Digits 6
Minimum Operating Temperature -15°C
Maximum Operating Temperature +60°C
Maximum Operating Pressure 8 bar
19 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 291,05 kr
(exkl. moms)
1 613,81 kr
(inkl. moms)
Enheter
Per unit
1 +
1 291,05 kr
