Hengstler 5 digits Pneumatic Counter, 0 → +60°C

  • RS-artikelnummer 726-314
  • Tillv. art.nr 0 497 487
  • Tillverkare / varumärke Hengstler
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer
//media.rs-online.com/t_line/L726314-01.gif

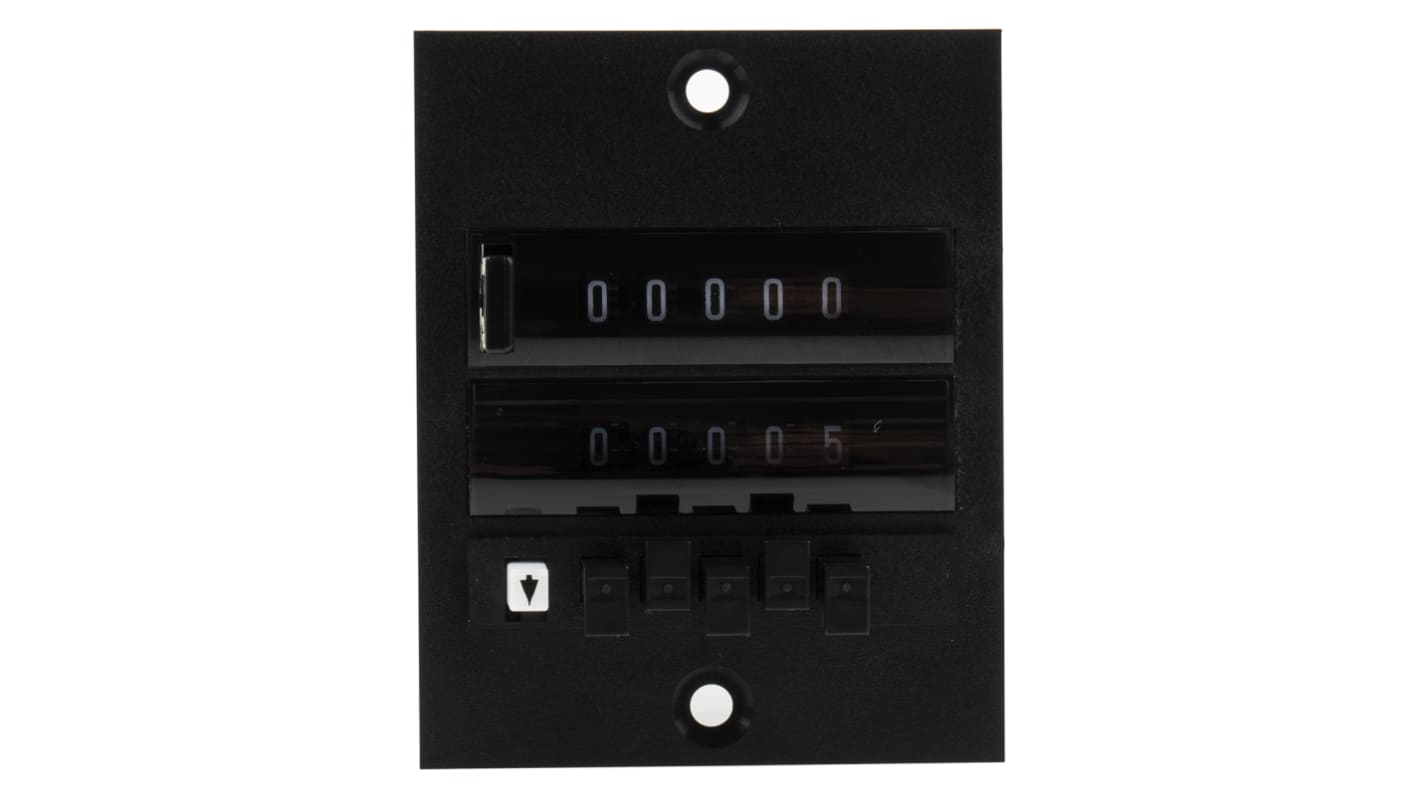

Hengstler Pneumatic Counter

The Hengstler 497 series 5-digit preset pneumatic counter can be used for controlling pneumatic circuits and installations. When the preset value is reached, the input pressure appears at the output. This counter, being completely pneumatic in operation, is particularly suited to explosion risk areas where electrical pulse counters are not permitted.

Features and Benefits

Continuously visible preset
Convenient button setting
Front panel or surface mount
Integrated pneumatic reset 5-digit display
Minimum pulse length is 8 milliseconds
Minimum reset pulse length is 180 milliseconds
Minimum time between pulses is 50 milliseconds
Operating pressure ranges between 2bar and 8bar (oil-free air, filtered to less than 40μm)
Operating temperature ranges between 0°C and 60°C
Panel cut-out size of 52mm x 52mm
Push-in connectors (supply/count/reset/output)

Certifications

IP40 rated

Specifikationer
Attribute Value
Manufacturer Series 497
Number of Digits 5
Minimum Operating Temperature 0°C
Maximum Operating Temperature +60°C
Maximum Operating Pressure 8 bar
18 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
2 913,09 kr
(exkl. moms)
3 641,36 kr
(inkl. moms)
Enheter
Per unit
1 +
2 913,09 kr
