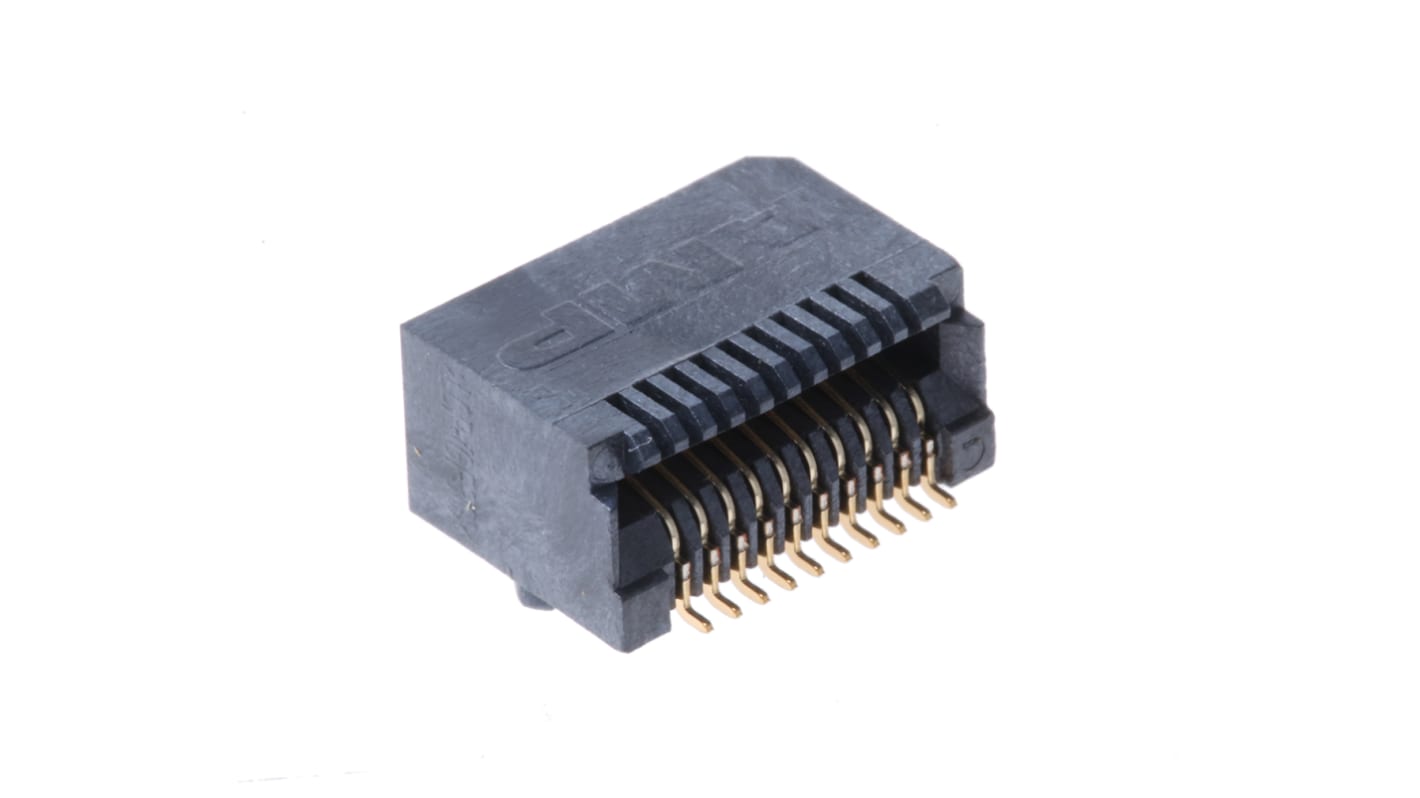

TE Connectivity SFP Connector Female 20-Position, 1367073-2
- RS-artikelnummer:
- 165-0785
- Tillv. art.nr:
- 1367073-2
- Tillverkare / varumärke:
- TE Connectivity
Tillfälligt slut i lager – restorder för leverans 2024-06-28
Lagt till varukorgen
Pris (ex. moms) Var (i en låda med 480)
30,255 kr
(exkl. moms)
37,819 kr
(inkl. moms)
| Enheter | Per unit | Per Box* |
| 480 + | 30,255 kr | 14 522,40 kr |
- RS-artikelnummer:
- 165-0785
- Tillv. art.nr:
- 1367073-2
- Tillverkare / varumärke:
- TE Connectivity
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
TE Connectivity SFP (Small Form Factor Pluggable) SMT Connectors
SFP (Small Form Factor Pluggable) SMT PT (pluggable transceiver) connectors for use with SFP cages to form part of high-speed pluggable I/O interface. The SFP system is designed for increased functionality and to meet increasing bandwidth demands. SFP connectors support applications up to 4 Gbit/s and SFP+ connectors support applications up to 16 Gbit/s. These SFP PT connectors have a reliable 20 position interface with improved signal integrity with contact spacing on a 0.8 mm centreline. Each of these SFP connectors consists of a housing with right angle SMT contacts. The housings incorporate a card entry slot that accepts a 1.0 ±0.1 mm thick integrated circuit card. Alignment posts provide connector stability on the PCB and board standoffs allow easy PCB cleaning after soldering.
Part number 1367073-1 is an SFP connector with 0.38 μm gold plated contacts
Part number 1367073-2 is an SFP connector with 0.76 μm gold plated contacts
Part number 1888247-1 is an SFP+ compliant connector with 0.76 μm gold plated contacts
Part number 1888247-2 is an SFP+ compliant connector with 0.38 μm gold plated contacts
Part number 1367073-2 is an SFP connector with 0.76 μm gold plated contacts
Part number 1888247-1 is an SFP+ compliant connector with 0.76 μm gold plated contacts
Part number 1888247-2 is an SFP+ compliant connector with 0.38 μm gold plated contacts
Features and Benefits
• SFP High-speed pluggable I/O interface
• Supports data rates of up to 4 Gbit/s (SFP) and up to 16 Gbit/s (SFP+)
• Reliable 20 position interface for increased signal integrity
• Card entry slot for 1.0 ±0.1 mm IC card
• Alignment posts for PCB stability
• Board standoffs for easy PCB cleaning
• Supports data rates of up to 4 Gbit/s (SFP) and up to 16 Gbit/s (SFP+)
• Reliable 20 position interface for increased signal integrity
• Card entry slot for 1.0 ±0.1 mm IC card
• Alignment posts for PCB stability
• Board standoffs for easy PCB cleaning
Product Application Information
These SFP high-speed pluggable I/O connectors are for use in applications that require a high-speed data rate. Applications include switches, routers, servers, hubs, storage, controllers and Network Interface Cards
SPF Cage
Specifikationer
Attribute | Value |
|---|---|
| Type | Connector |
| Form Factor | SFP |
| Gender | Female |
| Number of Ports | 1 |
| Number of Contacts | 20 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel |
| Housing Material | Liquid Crystal Polymer |
| Termination Method | Solder |
