- RS-artikelnummer:
- 180-8212
- Tillv. art.nr:
- BPW34S
- Tillverkare / varumärke:
- Vishay
675 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 45)
7,628 kr
(exkl. moms)
9,535 kr
(inkl. moms)
Enheter | Per unit | Per Tube* |
45 - 45 | 7,628 kr | 343,26 kr |
90 - 180 | 7,246 kr | 326,07 kr |
225 + | 6,866 kr | 308,97 kr |
- RS-artikelnummer:
- 180-8212
- Tillv. art.nr:
- BPW34S
- Tillverkare / varumärke:
- Vishay
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- PH
Produktdetaljer

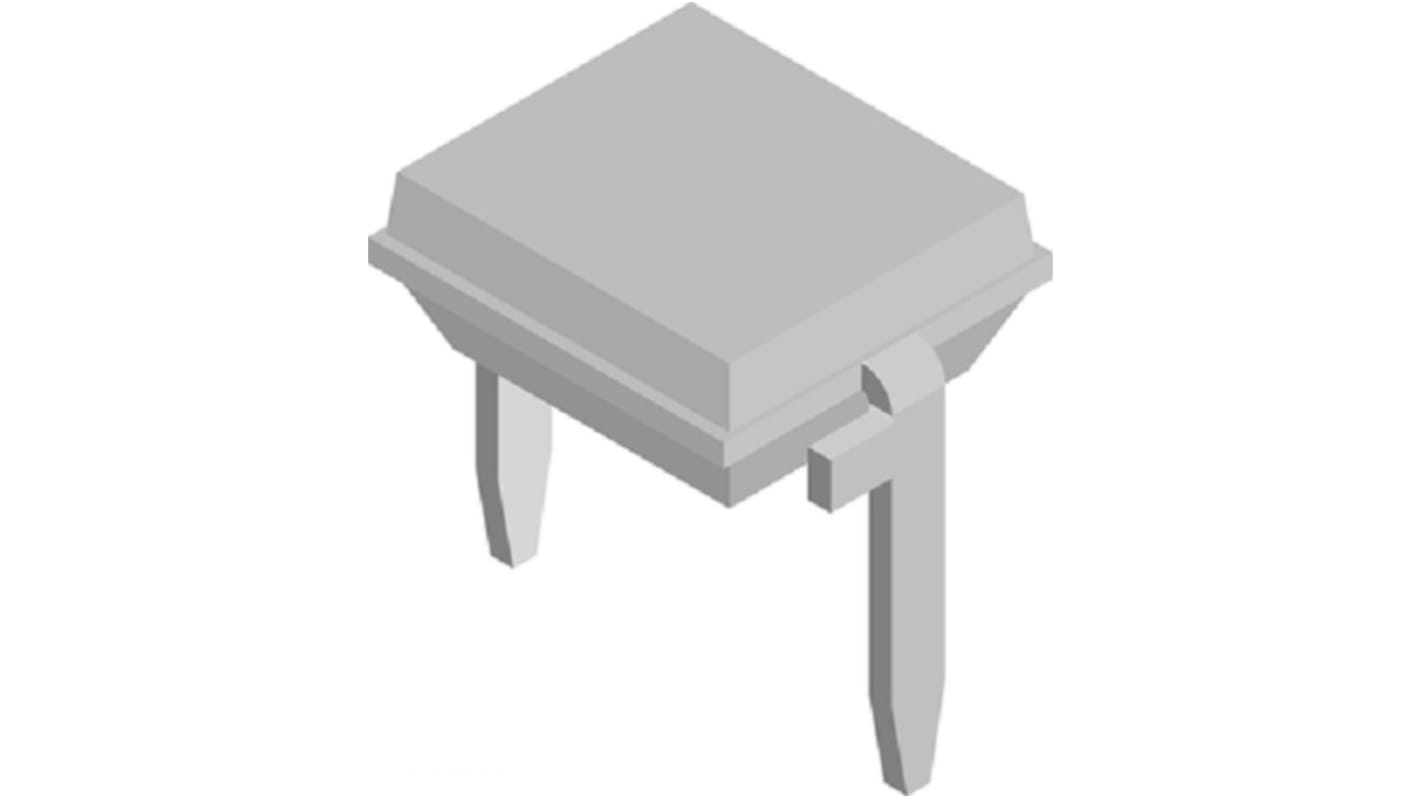

Vishay PIN Diode
The Vishay TEMD series through-hole mount silicon PIN photodiode is the latest device with a photocurrent rating of 70μA and a peak wavelength rating of 900nm. It has high speed and high radiant sensitivity in miniature, flat, top view, clear plastic package. It is applicable for high-speed photodetector. The diode has power dissipation of 215mW with 2nA dark current.
Features and Benefits
Angle of half sensitivity: F= ±65°
Angle of half sensitivity: F= ±65°
Dimensions (LxWxH): 5.4mmx4.3mmx3.2mm
Dimensions (LxWxH): 5.4mmx4.3mmx3.2mm
Fast response times
Fast response times
High photo sensitivity
High photo sensitivity
High radiant sensitivity
High radiant sensitivity
Package form: top view
Package form: top view
Package type: leaded
Package type: leaded
Radiant sensitive area: 7.5mm2
Radiant sensitive area: 7.5mm2
Suitable for visible and near infrared radiation
Suitable for visible and near infrared radiation
Angle of half sensitivity: F= ±65°
Dimensions (LxWxH): 5.4mmx4.3mmx3.2mm
Dimensions (LxWxH): 5.4mmx4.3mmx3.2mm
Fast response times
Fast response times
High photo sensitivity
High photo sensitivity
High radiant sensitivity
High radiant sensitivity
Package form: top view
Package form: top view
Package type: leaded
Package type: leaded
Radiant sensitive area: 7.5mm2
Radiant sensitive area: 7.5mm2
Suitable for visible and near infrared radiation
Suitable for visible and near infrared radiation
Certifications
2002/95/EC
E 3
Green (5-2008)
Lead (Pb) free component
WEEE 2002/96/EC
E 3
Green (5-2008)
Lead (Pb) free component
WEEE 2002/96/EC
