- RS-artikelnummer:
- 786-8923
- Tillv. art.nr:
- SPS-8770-03-C1
- Tillverkare / varumärke:
- Sonitron
- RS-artikelnummer:
- 786-8923
- Tillv. art.nr:
- SPS-8770-03-C1
- Tillverkare / varumärke:
- Sonitron
Lagstiftning och ursprungsland
- COO (Country of Origin):
- BE
Produktdetaljer

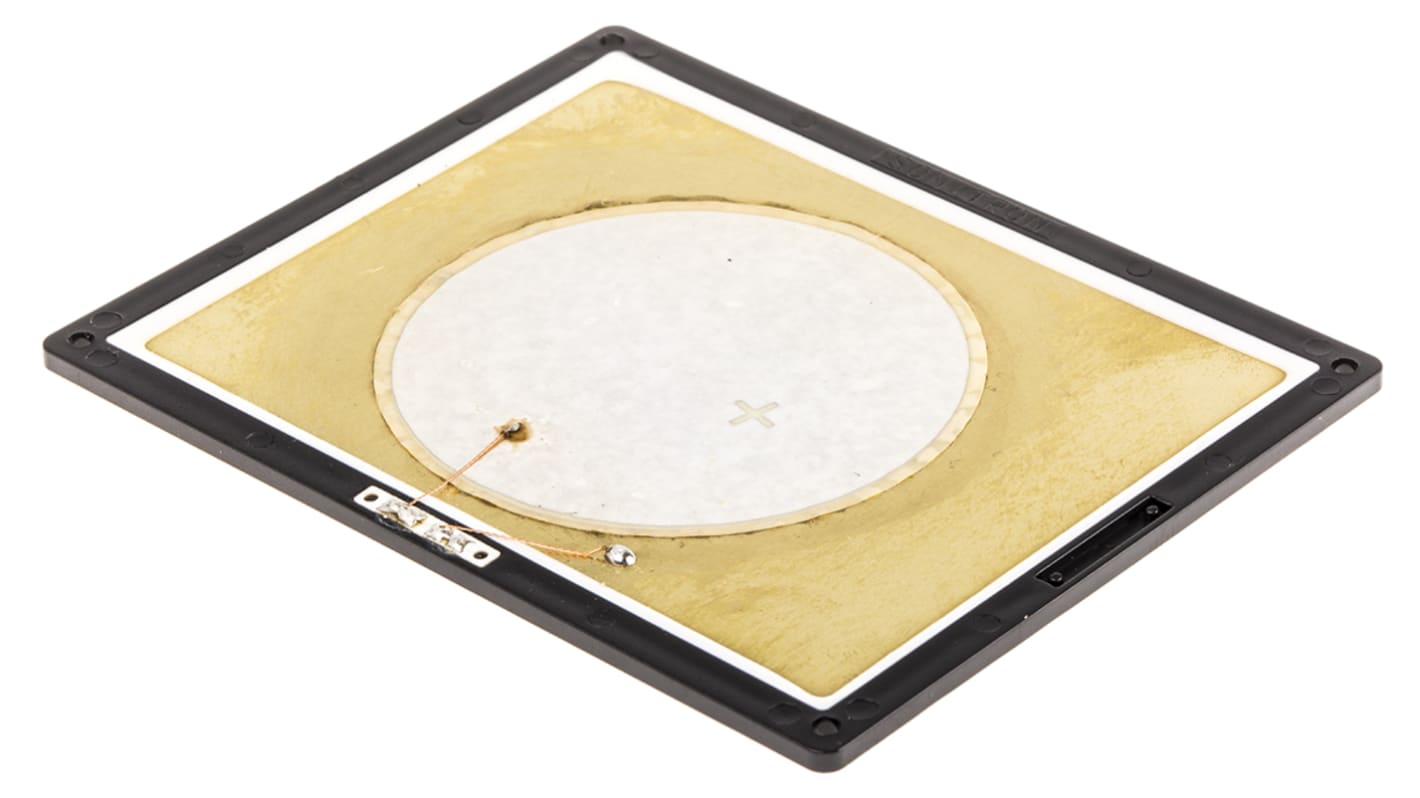

Square Piezoceramic Speaker SMT mount
A selection of piezocermic speakers designed for surface mounting. Utilising a ceramic disk that reacts to voltage differentiation, the piezocermic speaker combines very small current consumption with a high volume output.
Features and Benefits:
Piezo transducer speakers
Panel mountable
SMT pad connections
Requires external circuitry to operate
Panel mountable
SMT pad connections
Requires external circuitry to operate
Piezo-electric - Panel Mount with Pad connections
Specifikationer
Attribute | Value |
---|---|
Frequency Range | 200 Hz → 20 kHz |
Capacitance | 580nF |
Sound Level | 84dB |
Connection Method | Glue, Silicone |
Dimensions | 87 x 70 x 2mm |
Operating Temperature Range | -20 → +60 °C |
Maximum Frequency | 20kHz |
Minimum Operating Temperature | -20°C |
Minimum Frequency | 200Hz |
Maximum Operating Temperature | +60°C |
Height | 2mm |
Length | 87mm |
Width | 70mm |
