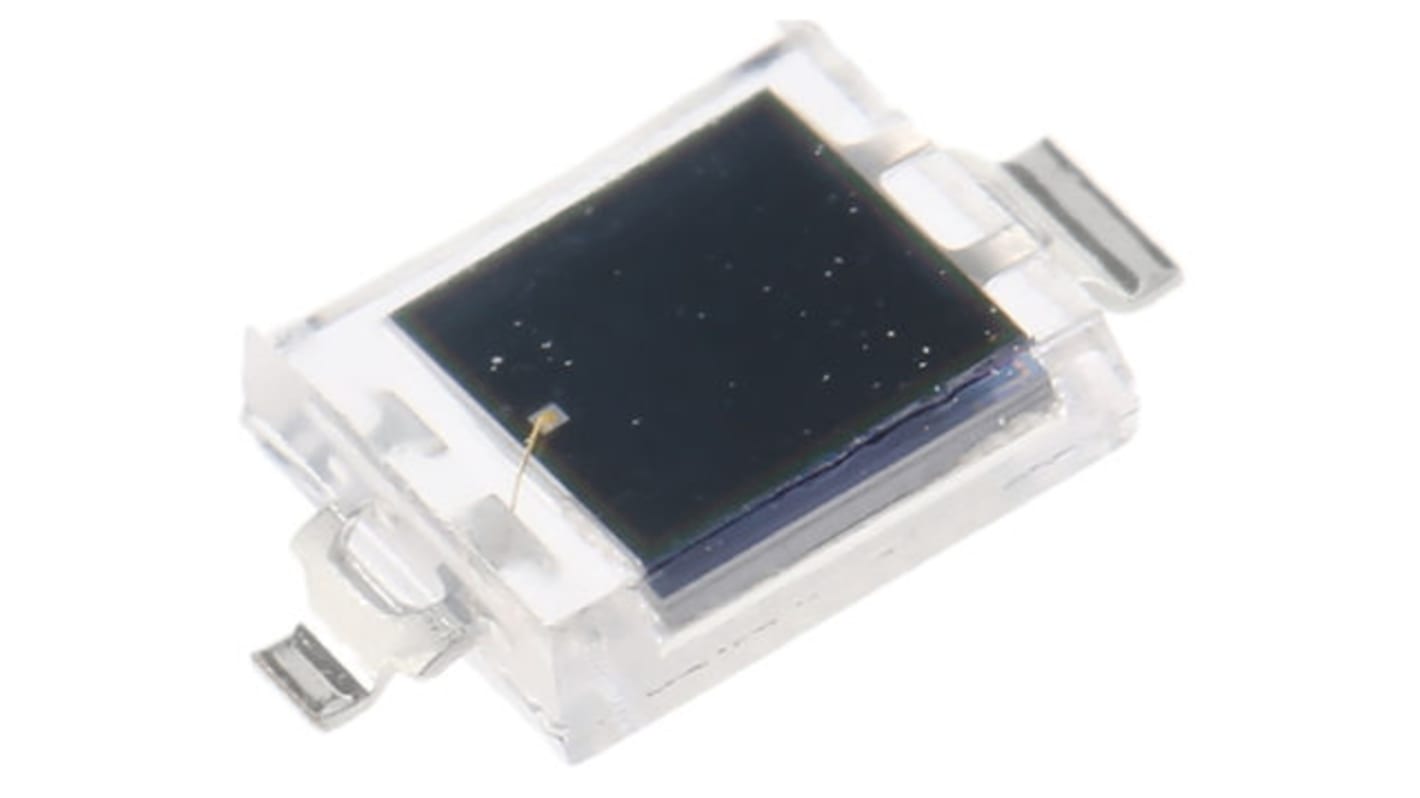

Vishay, VBPW34S IR + Visible Light Si Photodiode, Surface Mount GW
- RS-artikelnummer:
- 919-5801
- Tillv. art.nr:
- VBPW34S
- Tillverkare / varumärke:
- Vishay
12000 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 1000)
6,222 kr
(exkl. moms)
7,778 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 1000 - 1000 | 6,222 kr | 6 222,00 kr |
| 2000 + | 6,16 kr | 6 160,00 kr |
- RS-artikelnummer:
- 919-5801
- Tillv. art.nr:
- VBPW34S
- Tillverkare / varumärke:
- Vishay
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- PH
Produktdetaljer
VBPW34 Series PIN Photodiodes
The VBPW34S and VBPW34SR series, from Vishay Semiconductor, are a family of silicon PIN photodiodes. They offer high speed and high sensitivity. The VBPW34S and VBPW34SR devices come in surface mount (SMD) packages containing a 7.5mm² chip. These PIN photodiodes are for detecting visible and near IR radiation.
Features of the VBPW34S and VBPW34SR PIN photodiodes:
SMD packages
Lead types: gull-wing (GW) and reverse gull-wing (RGW)
Dimensions: 6.4 x 3.9 x 1.2 mm
Fast response times
SMD packages
Lead types: gull-wing (GW) and reverse gull-wing (RGW)
Dimensions: 6.4 x 3.9 x 1.2 mm
Fast response times
Photodiodes, Vishay Semiconductor
Specifikationer
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Wavelength of Peak Sensitivity | 940nm |
| Package Type | GW |
| Mounting Type | Surface Mount |
| Amplifier Function | No |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 430nm |
| Maximum Wavelength Detected | 1100nm |
| Length | 4.4mm |
| Width | 3.9mm |
| Height | 1.2mm |
