- RS-artikelnummer:
- 146-8345
- Tillverkare / varumärke:
- RS PRO
1250 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
5,284 kr
(exkl. moms)
6,605 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
10 - 40 | 5,284 kr | 52,84 kr |
50 - 90 | 5,021 kr | 50,21 kr |
100 - 490 | 4,77 kr | 47,70 kr |
500 + | 4,234 kr | 42,34 kr |
- RS-artikelnummer:
- 146-8345
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

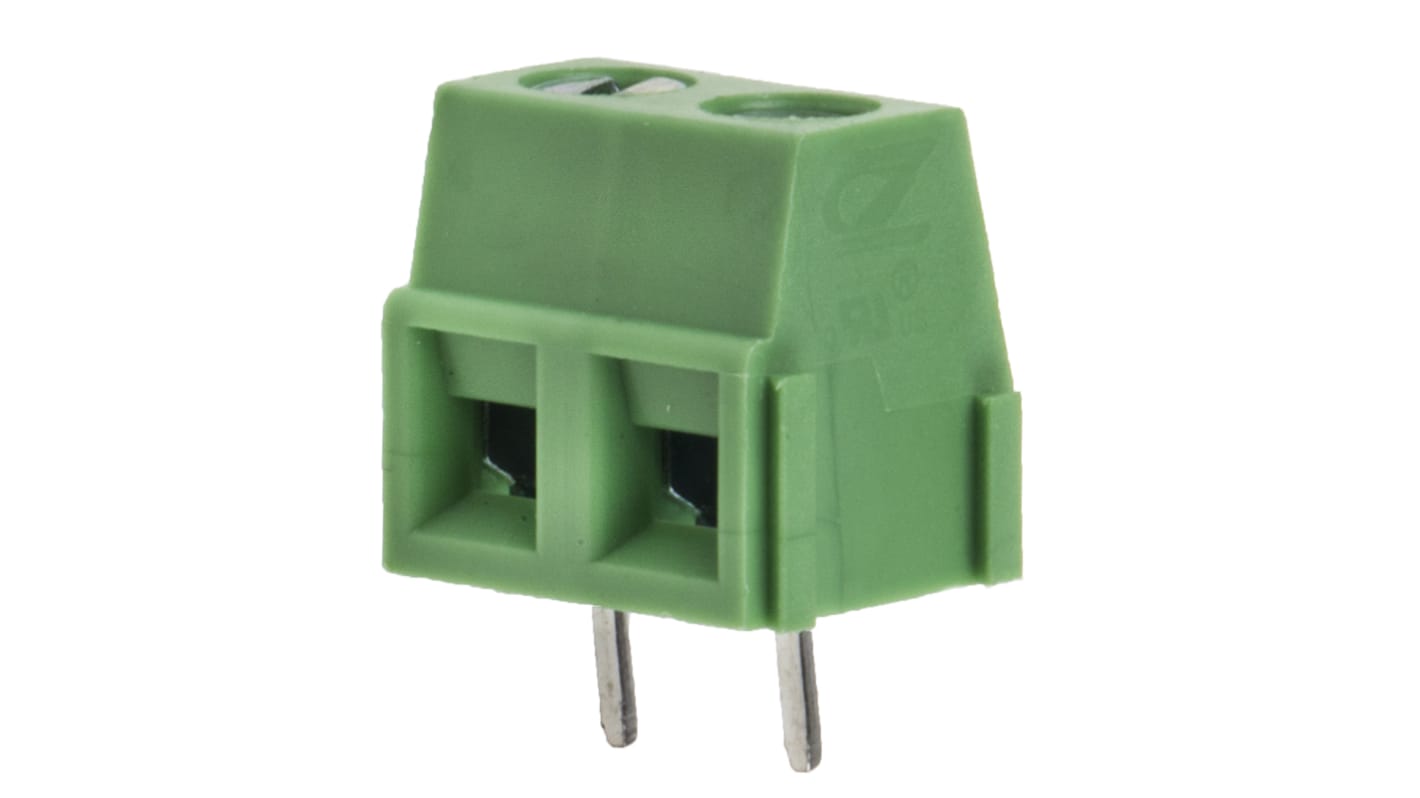

RS PRO 2-Way Pluggable Terminal Block, 5.08 mm Pitch
If you need to connect two or more wires across your PCBs (printed circuit boards), you can use this two-way pluggable terminal block from RS PRO. It can be installed on the PCB directly, with easy through-hole mounting.
The block's contacts are made from a tin-plated brass material, which has an excellent level of conductivity and resistance to wear and oxidation for effective performance over a long lifespan. They're designed for screw termination, which will allow you to connect your circuitry simply and securely.
This product is made from a polyamide material that can withstand impact, and it has a flame retardance certification of UL (Underwriter Laboratories) 94-V0, indicating that it will burn for no more than 30 seconds when exposed to a naked flame. The terminal is safe, reliable and ideal for use in industrial equipment and consumer electronics.
The block's contacts are made from a tin-plated brass material, which has an excellent level of conductivity and resistance to wear and oxidation for effective performance over a long lifespan. They're designed for screw termination, which will allow you to connect your circuitry simply and securely.
This product is made from a polyamide material that can withstand impact, and it has a flame retardance certification of UL (Underwriter Laboratories) 94-V0, indicating that it will burn for no more than 30 seconds when exposed to a naked flame. The terminal is safe, reliable and ideal for use in industrial equipment and consumer electronics.
Features and Benefits
Vertical body orientation
Green colour
Current rating of 10 A
Voltage rating of 300 V
Depth of 10.1 mm
Width of 8.3 mm
Length of 10.16 mm
Pitch of 5.08 mm
Nylon 66 material
Through-hole mounting type
Two contacts
Single row
Screw termination method
Green colour
Current rating of 10 A
Voltage rating of 300 V
Depth of 10.1 mm
Width of 8.3 mm
Length of 10.16 mm
Pitch of 5.08 mm
Nylon 66 material
Through-hole mounting type
Two contacts
Single row
Screw termination method
Specifikationer
Attribute | Value |
---|---|
Number of Contacts | 2 |
Pitch | 5.08mm |
Number of Rows | 1 |
Mounting Type | Through Hole |
Gender | Male |
Termination Method | Screw |
Type | PCB Terminal Block |
Current Rating | 10A |
Body Orientation | Vertical |
Colour | Green |
Voltage Rating | 300 V |
Series | CTB0509 |
Length | 10.16mm |
Width | 8.3mm |
Material | Nylon 66 |
Depth | 10.1mm |
