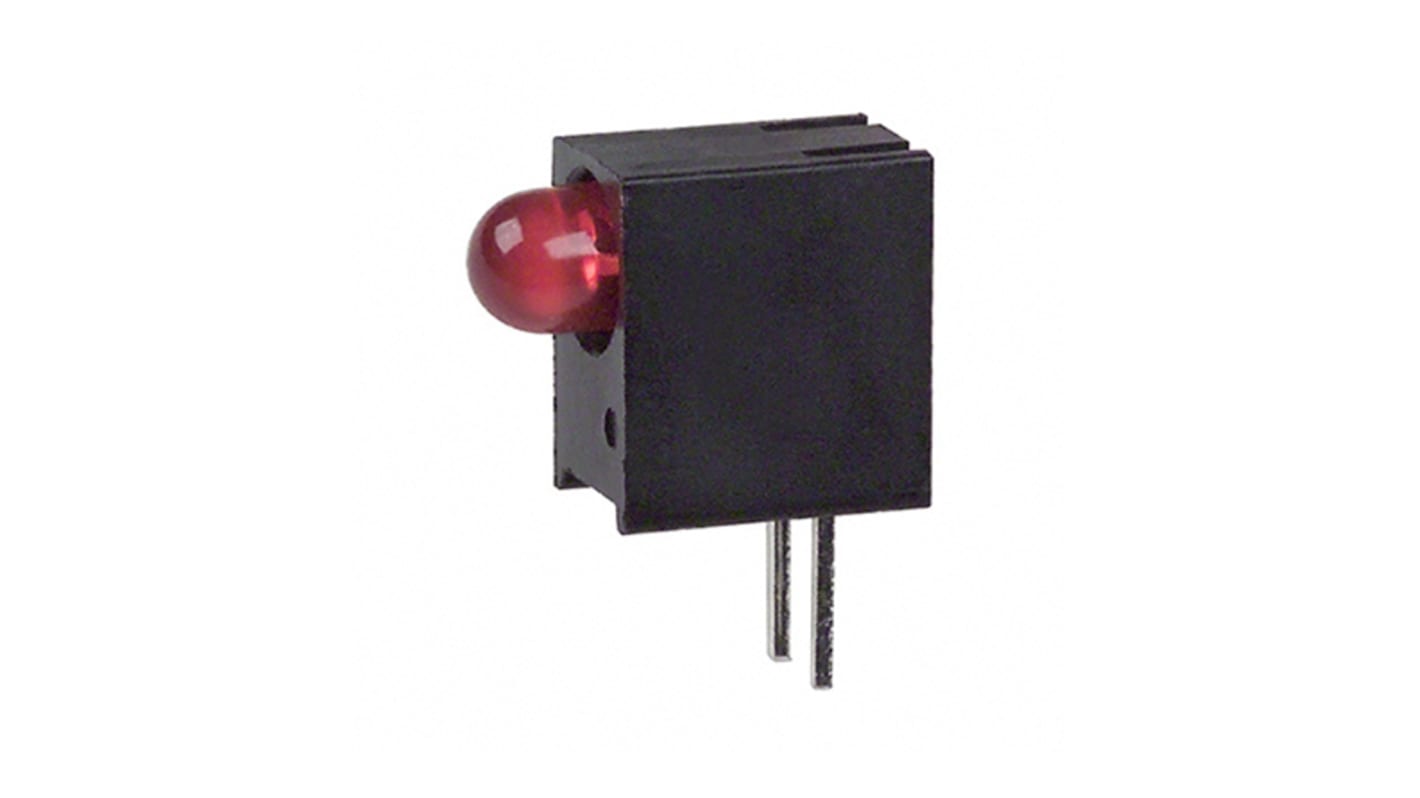

Dialight 551-0507F, Red Right Angle PCB LED Indicator 3mm (T-1), Through Hole
- RS-artikelnummer:
- 890-7013
- Tillv. art.nr:
- 551-0507F
- Tillverkare / varumärke:
- Dialight
Tillfälligt slut i lager – restorder för leverans 2024-08-09
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 800)
0,012 kr
(exkl. moms)
0,015 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 800 + | 0,012 kr | 9,60 kr |
- RS-artikelnummer:
- 890-7013
- Tillv. art.nr:
- 551-0507F
- Tillverkare / varumärke:
- Dialight
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MX
Produktdetaljer
Dialight 551-xx07 Series LED CBI® Circuit Board Indicators
Dialight's 551-xx07 series are a family of LED CBI® circuit board indicators. The consist of one 3mm (T-1) LED in a black plastic housing with a high centreline of 4.45mm. The black housing offers a high contrast whilst holding the LED at a right angle. They have 2 pins for through-hole mounting. The 551-xx07 PCB LED indicators are available in high efficiency, integral resistor, low current and bi-colour LED options.
Features of the 551-xx07 PCB LED indicators:
3mm through hole LEDs
Variety of colours
Right angle black housing
Compatible with 551-xx07-004 QuadBlock
3mm through hole LEDs
Variety of colours
Right angle black housing
Compatible with 551-xx07-004 QuadBlock
PCB LED Indicators, Dialight
Specifikationer
Attribute | Value |
|---|---|
| LED Colours | Red |
| Number of LEDs | 1 |
| Mounting Type | Through Hole |
| Number of Pins | 2 |
| Viewing Angle | 60 ° |
| Dominant Wavelength | 635 nm |
| LED Orientation | Right Angle |
| Dimensions | 4.32 x 8.89 x 7.11mm |
| Length | 4.32mm |
| Width | 8.89mm |
| Height | 7.11mm |
| Lens Colour | Red |
| Forward Current | 10mA |
| LED Size | 3mm (T-1) |
| Series | 551 |
| Standards Met | EC 825-1, EN-60825-1, MIL-STD-202F, UL 94V-0 |
| Intensity | 29mcd |
| Configuration | Bi-Level |
| Lens Finish | Diffused, Tinted |
