Dialight 550-3505, Green & Red Right Angle PCB LED Indicator, 2 LEDs, Through Hole 2.1 V, 2.3 V

  • RS-artikelnummer 424-2258
  • Tillv. art.nr 550-3505
  • Tillverkare / varumärke Dialight
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
Produktdetaljer

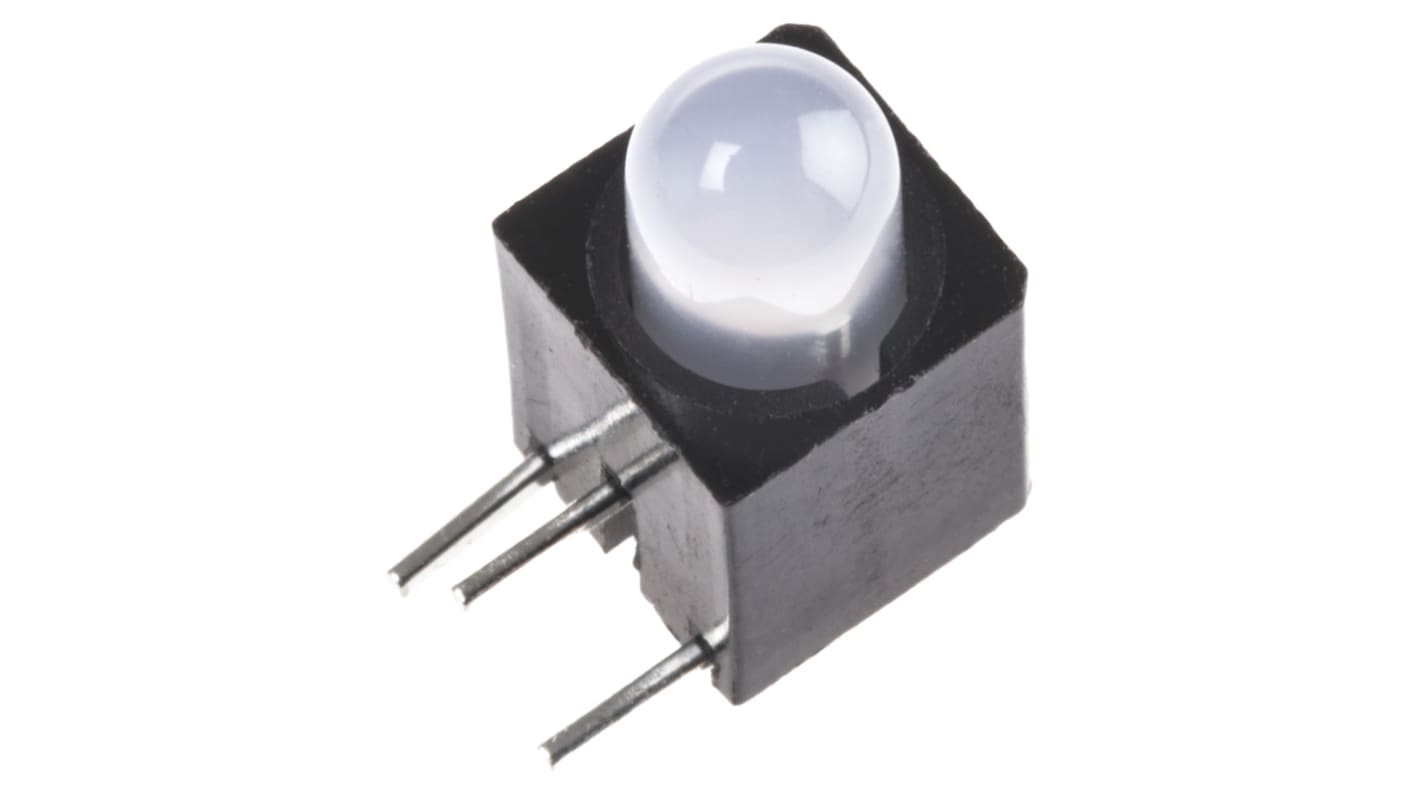

Dialight 550-3x05 Series LED CBI® Circuit Board Indicators

The 550-3x05 series, from Dialight, are 5mm CBI (Circuit Board Indicator) LEDs. They are in 3-leaded packages with common cathode. Their black housing provides a high contrast. These bi-colour LED indicators are available in a choice of colours with red/green LEDs providing yellow/orange as a third colour.

Features of the 550-3x05 series:
- 3-leaded black package
- 5mm bi-colour LEDs
- Non-tinted, diffused LEDs
- Colours: Red/Green and Yellow/Green
- Operating temperature: -20 to +85 °C
- Viewing angle: 60°

PCB LED Indicators, Dialight

Specifikationer
Attribute Value
LED Colours Green, Red
Number of LEDs 2
Mounting Type Through Hole
Supply Voltage 2.1 V, 2.3 V
Number of Pins 2
Viewing Angle 65 °
Dominant Wavelength 565 / 635 nm
LED Orientation Right Angle
Dimensions 14.151 x 7.24 x 7.24mm
Length 14.151mm
Width 7.24mm
Height 7.24mm
Intensity 8|5mcd
250 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
8,562 kr
(exkl. moms)
10,702 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 20
8,562 kr
42,81 kr
25 - 95
7,734 kr
38,67 kr
100 - 245
7,134 kr
35,67 kr
250 - 495
6,70 kr
33,50 kr
500 +
6,556 kr
32,78 kr
