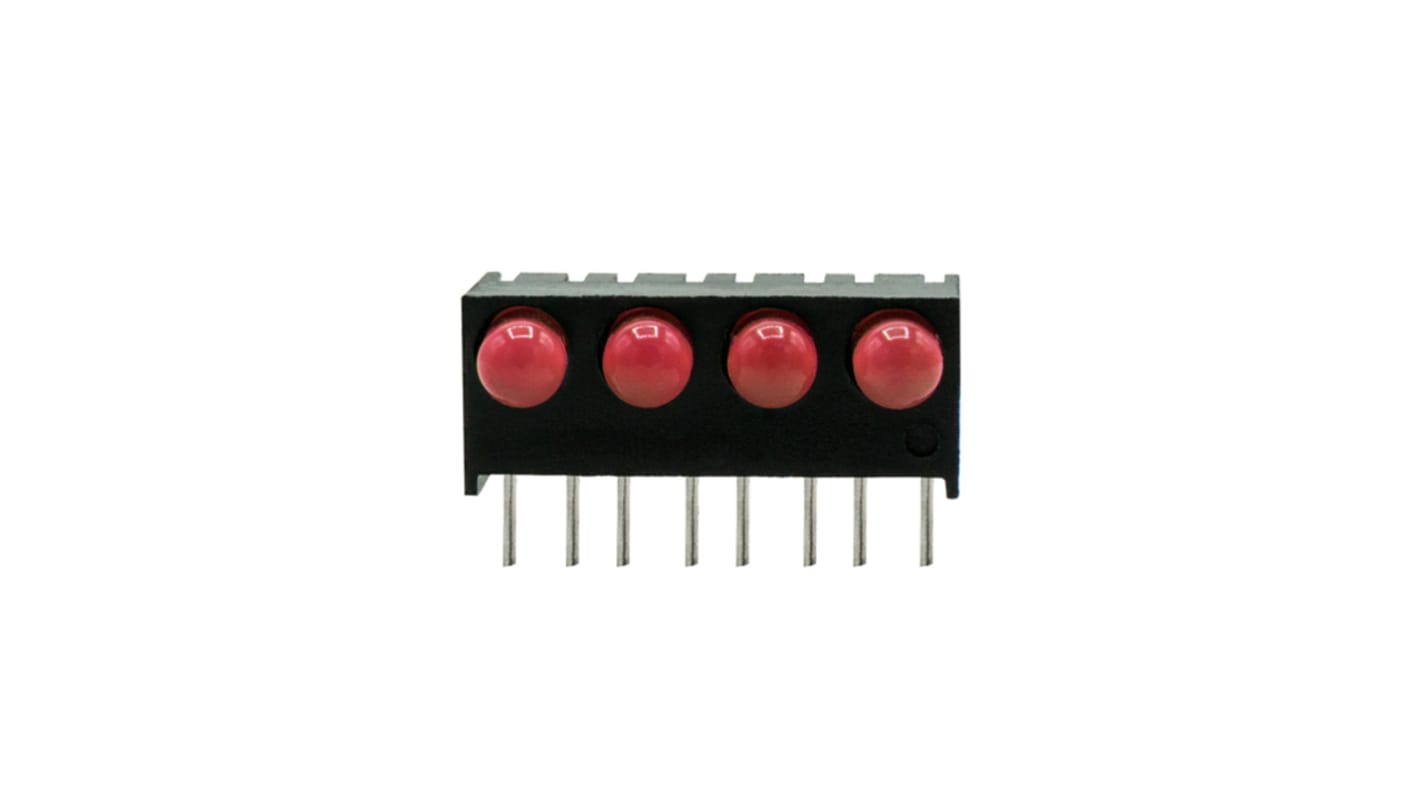

Dialight 550-2407-004F, Red Right Angle PCB LED Indicator, 4 LEDs, Through Hole 2.2 V
- RS-artikelnummer:
- 171-1298
- Tillv. art.nr:
- 550-2407-004F
- Tillverkare / varumärke:
- Dialight
Tillfälligt slut i lager – restorder för leverans 2024-08-08
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 5)
22,18 kr
(exkl. moms)
27,72 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 5 + | 22,18 kr | 110,90 kr |
- RS-artikelnummer:
- 171-1298
- Tillv. art.nr:
- 550-2407-004F
- Tillverkare / varumärke:
- Dialight
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MX
Produktdetaljer
Dialight 550-xx07-004 Series LED CBI® Circuit Board Indicators
The 550-xx07-004 series, from Dialight, are quad block LED PCB indicators. They are in Dialight's CBI® circuit board indicator family. The 550-xx07-004 arrays contain four 5mm through-hole LEDs in a black plastic housing with a sloped back. The black housings enable a high contrast. The 550-xx07-004 indicators have 8 pins for through-hole mounting. They have general purpose, integral resistor, low current, high efficiency, bi-colour and super bright LED options.
Features of the 550-xx07-004 quad block:
4 x 5mm LEDs
Black plastic housing
Sloped back
Compatible with 550-xx07 single-block and 550-xx07-002 dual-block
4 x 5mm LEDs
Black plastic housing
Sloped back
Compatible with 550-xx07 single-block and 550-xx07-002 dual-block
PCB LED Indicators, Dialight
Specifikationer
Attribute | Value |
|---|---|
| LED Colours | Red |
| Number of LEDs | 4 |
| Mounting Type | Through Hole |
| Supply Voltage | 2.2 V |
| Number of Pins | 8 |
| Viewing Angle | 50 ° |
| Dominant Wavelength | 650 nm |
| LED Orientation | Right Angle |
| Dimensions | 25 x 13.96 x 5.97mm |
| Length | 25mm |
| Width | 13.96mm |
| Height | 5.97mm |
| Intensity | 7mcd |
