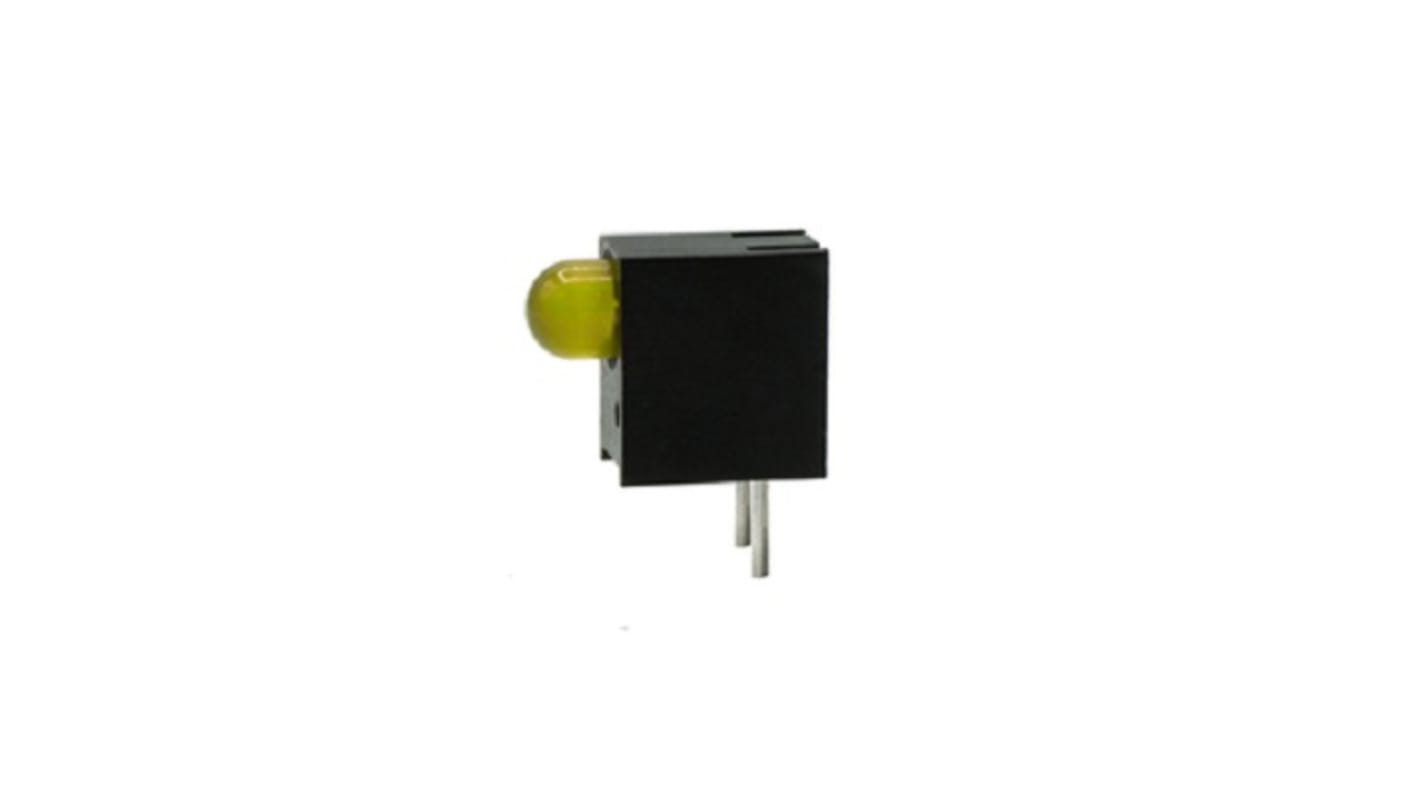

Dialight 551-0707F, Yellow Right Angle PCB LED Indicator, Through Hole 7.5 V

  • RS-artikelnummer 171-1272
  • Tillv. art.nr 551-0707F
  • Tillverkare / varumärke Dialight
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): MX
Produktdetaljer

Dialight 551-xx07 Series LED CBI® Circuit Board Indicators

Dialight's 551-xx07 series are a family of LED CBI® circuit board indicators. The consist of one 3mm (T-1) LED in a black plastic housing with a high centreline of 4.45mm. The black housing offers a high contrast whilst holding the LED at a right angle. They have 2 pins for through-hole mounting. The 551-xx07 PCB LED indicators are available in high efficiency, integral resistor, low current and bi-colour LED options.

Features of the 551-xx07 PCB LED indicators:
3mm through hole LEDs
Variety of colours
Right angle black housing
Compatible with 551-xx07-004 QuadBlock

PCB LED Indicators, Dialight

Specifikationer
Attribute Value
LED Colours Yellow
Number of LEDs 1
Mounting Type Through Hole
Supply Voltage 7.5 V
Number of Pins 2
Viewing Angle 60 °
Dominant Wavelength 585 nm
LED Orientation Right Angle
Dimensions 8.89 x 4.32 x 7.11mm
Length 8.89mm
Width 4.32mm
Height 7.11mm
Intensity 12.6mcd
1700 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Bag of 100)
6,992 kr
(exkl. moms)
8,74 kr
(inkl. moms)
Enheter
Per unit
Per Bag*
100 +
6,992 kr
699,20 kr
