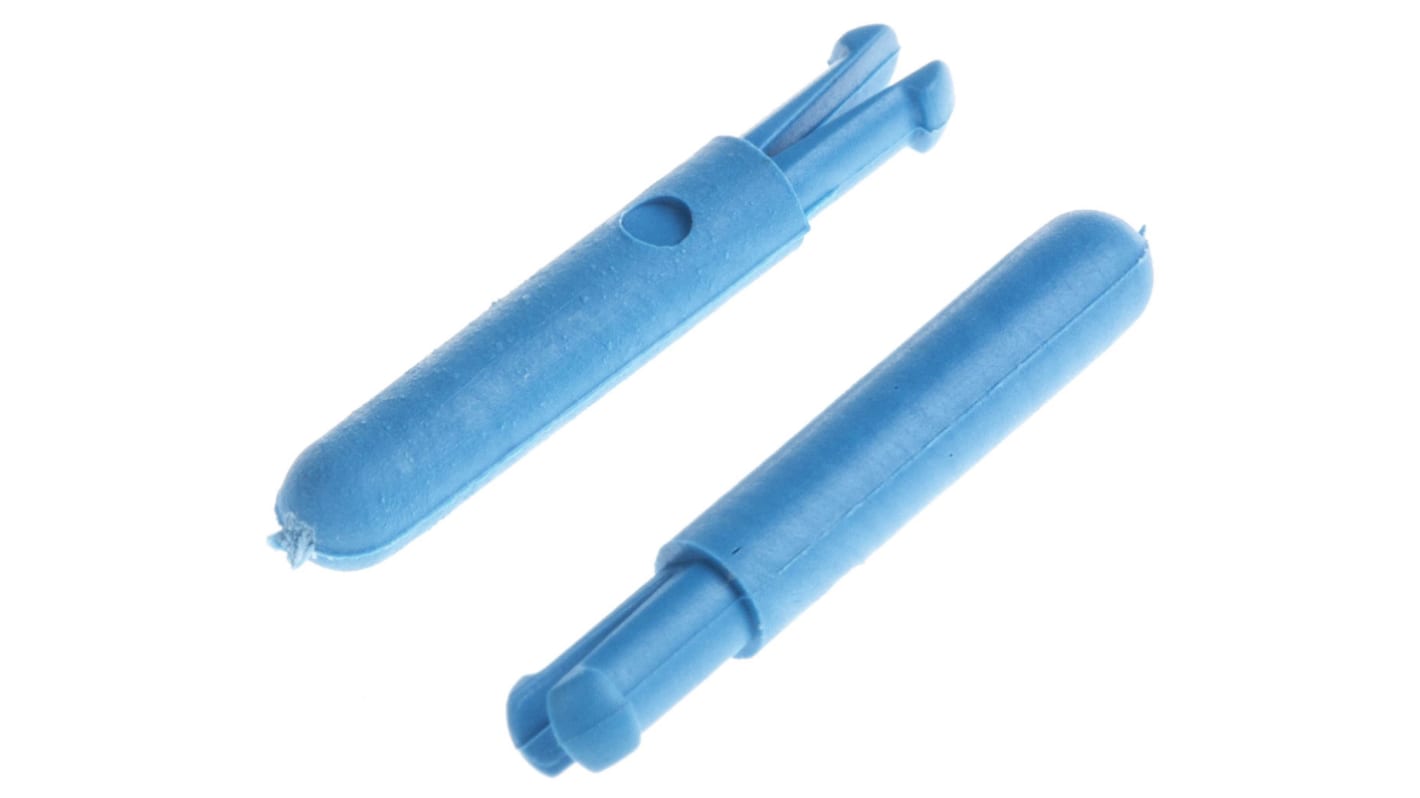

ITT Cannon, Trident Snap Key for use with Cannon Trident Series

  • RS-artikelnummer 466-854
  • Tillv. art.nr 192990-0000
  • Tillverkare / varumärke ITT Cannon
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Crimp Single Piece Contacts

Single piece, formed construction
Tin plated brass inserts

ITT TNM Shielded

The TNM connector range builds on the popular Trident and Neptune ranges from ITT Cannon. They feature full metal construction giving high reliability and durability.

RF shielding inherent in the full metal construction
Backshells enable cable braid termination so meeting EMC requirements
Signal versions have the same planform & contact arrangements as the QM range so upgrading and interchangeability can be achieved
Includes a rear rubber seal that enables IP67 rating to be maintained if only some contacts are used. The rubber seal can be discarded if a backshell is to be used. Both are rated to IP67
Cable, chassis and jam nut configurations available in standard and reversed formats
One, two or three part crimp contacts, also solder cup and PCB terminating contacts available for signal transfer. Power contacts are only required for power/signal connector types

Specifikationer
Attribute Value
Accessory Type Key
For Use With Cannon Trident Series
Series Trident Snap
480 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 10)
3,817 kr
(exkl. moms)
4,771 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 - 190
3,817 kr
38,17 kr
200 - 390
3,536 kr
35,36 kr
400 +
3,183 kr
31,83 kr
