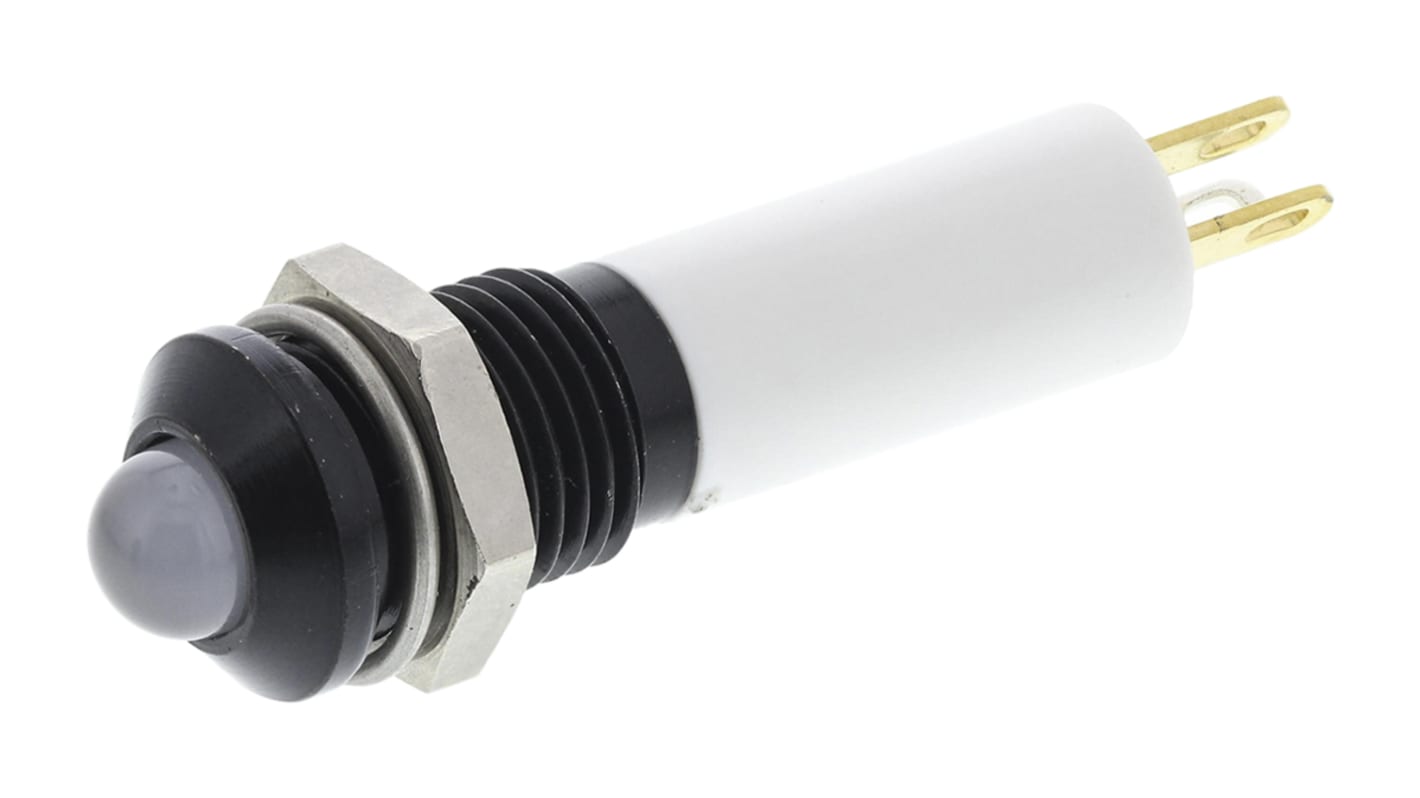

RS PRO Green, Red, Yellow Panel Mount Indicator, 12V dc, 8mm Mounting Hole Size, Solder Tab Termination, IP67
- RS-artikelnummer:
- 207-393
- Tillverkare / varumärke:
- RS PRO
71 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
95,83 kr
(exkl. moms)
119,79 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 14 | 95,83 kr |
| 15 - 24 | 86,43 kr |
| 25 - 49 | 78,44 kr |
| 50 - 99 | 71,11 kr |
| 100 + | 62,80 kr |
- RS-artikelnummer:
- 207-393
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer
LED Indicator, 12 & 24Vdc, Black Chrome Bezel
Brought to you under the trusted RS Pro, these LED indicators have diffused epoxy lenses and a chrome bezel. The body features convenient solder lug termination for a quick and easy connection. RS Pro LED indicators give a high level of brightness and a long life at low energy consumption, making them ideal for a variety of equipment applications.
Features and Benefits
"• 5mm coloured diffused epoxy lens
• Length: 37mm
• Life Expectancy: 100000 Hours
• Operating Temperature range: -25 to +75°C
• Tri-colour variants contain a red LED and a green LED, when both are on yellow is produced
• 0.11in. (2.8 x 0.8) terminals, except for tri-colour variants which have 2 x 0.5mm
• Gold faston terminal denotes Anode (+), Silver terminal denotes cathode (-)"
Brought to you under the trusted RS Pro, these LED indicators have diffused epoxy lenses and a chrome bezel. The body features convenient solder lug termination for a quick and easy connection. RS Pro LED indicators give a high level of brightness and a long life at low energy consumption, making them ideal for a variety of equipment applications.
Features and Benefits
"• 5mm coloured diffused epoxy lens
• Length: 37mm
• Life Expectancy: 100000 Hours
• Operating Temperature range: -25 to +75°C
• Tri-colour variants contain a red LED and a green LED, when both are on yellow is produced
• 0.11in. (2.8 x 0.8) terminals, except for tri-colour variants which have 2 x 0.5mm
• Gold faston terminal denotes Anode (+), Silver terminal denotes cathode (-)"
Specifikationer
Attribute | Value |
|---|---|
| Voltage Rating | 12V dc |
| Light Output Colour | Green, Red, Yellow |
| Mounting Hole Size | 8mm |
| Lamp Type | LED |
| Lamp Size | 5 mm |
| Termination Type | Solder Tab |
| Mounting Type | Panel Mount |
| IP Rating | IP67 |
| Bezel Style | Prominent |
| Bezel Colour | Black |
| Current Rating | 20mA |
| Intensity | 10 mcd, 10 mcd, 20mcd |
| Length | 33.9mm |
