LeCroy HVD3106-6M Oscilloscope Probe, Probe Type: Differential, High Voltage 80MHz 1kV

  • RS-artikelnummer 878-7601
  • Tillv. art.nr HVD3106-6M
  • Tillverkare / varumärke Teledyne LeCroy
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

Teledyne LeCroy HVD3000A Series Probes

Teledyne LeCroy’s HVD3106A series of high voltage differential probes cover the fullest range of applications, from 120/240 V switch-mode power supplies through 600 V class and 1.5 kV electrical apparatus. The 1% gain accuracy coupled with exceptional common-mode rejection ratio provides an accurate and versatile probe suitable for use with a wide range of oscilloscopes

Features and Benefits

  • Exceptional common-mode rejection ratio (CMRR) across a broad frequency range

  • 1% gain accuracy

  • High offset capability at both high and low attenuation

  • AC and DC coupling

  • ProBus active probe interface with automatic scaling

  • AutoZero with auto disconnect switch

  • Wide oscilloscope compatibility

Applications

  • Applications

  • Automotive

  • Power Applications

  • Motor Drive Development

  • Product Design Applications

  • 174-8868 - 1kV, 120 MHz High Voltage Differential Probe without tip Accessories and with Auto Zero Disconnect
  • 174-8869 1kV, 120 MHz High Voltage Differential Probe with Auto Zero Disconnect

  • 174-8870 - 1kV, 80 MHz High Voltage Differential Probe with 6m cable and Auto Zero Disconnect

Supplied with

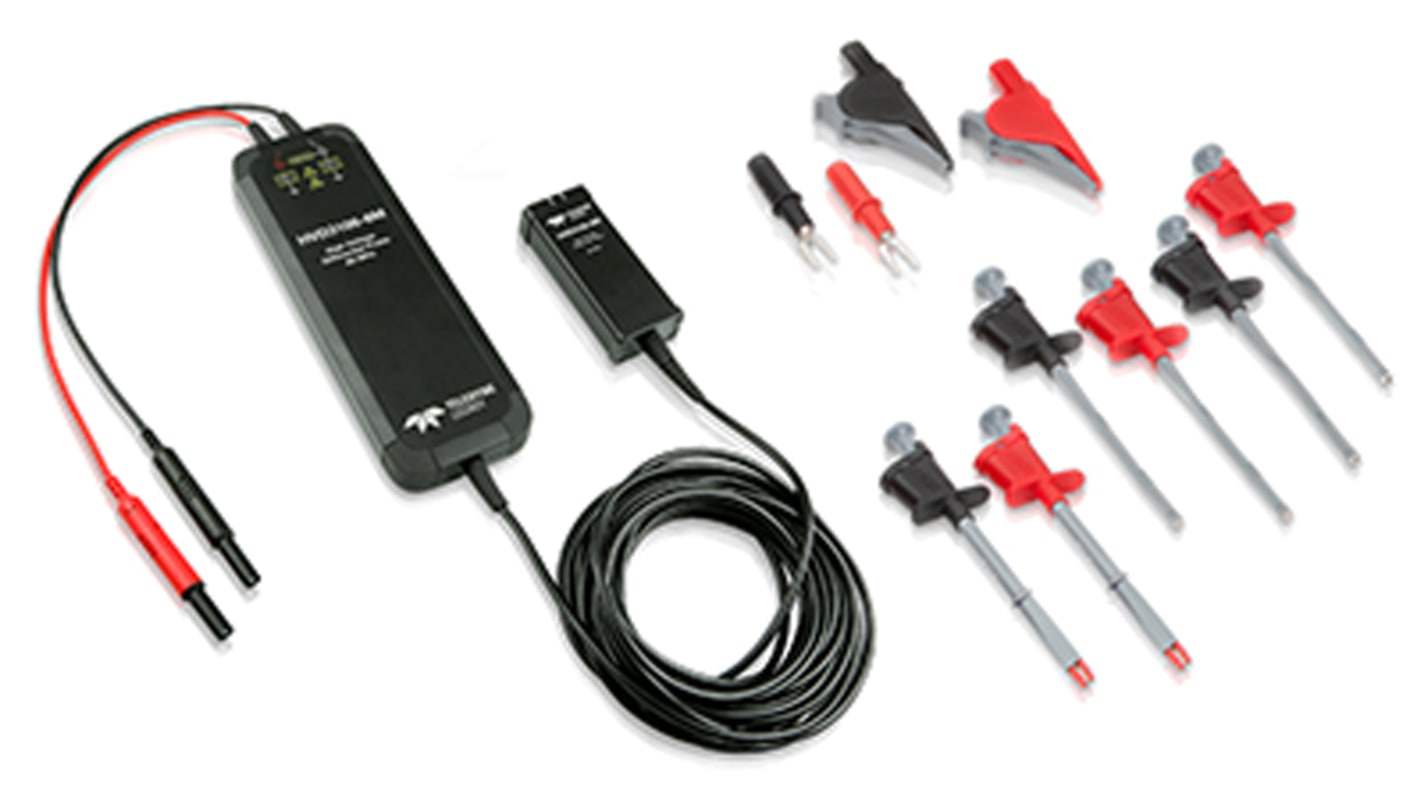

174-8869 and 174-8870 are supplied with = a Pair of Red & Black 1000V Safety Alligator Clips, Plunger Pincer Clips, Plunger Hook Clips, Plunger Alligator Clips and Spade Terminals

Specifikationer
Attribute Value
Probe Type Differential, High Voltage
Attenuation 1:50, 1:500
Bandwidth 80MHz
Maximum Common Mode Input Voltage 1kV
Connector Type ProBus
Model Number p HVD3106-6M
Number of Probes 2
Safety Category Level CAT III
Safety Category Voltage 1000V
Series HVD
Safety Category CAT III 1000 V
Rise Time 4.4ns
