LeCroy PP066 Oscilloscope Probe, Probe Type: Passive 7.5GHz 15V

  • RS-artikelnummer 801-4880
  • Tillv. art.nr PP066
  • Tillverkare / varumärke Teledyne LeCroy
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): JP
Produktdetaljer

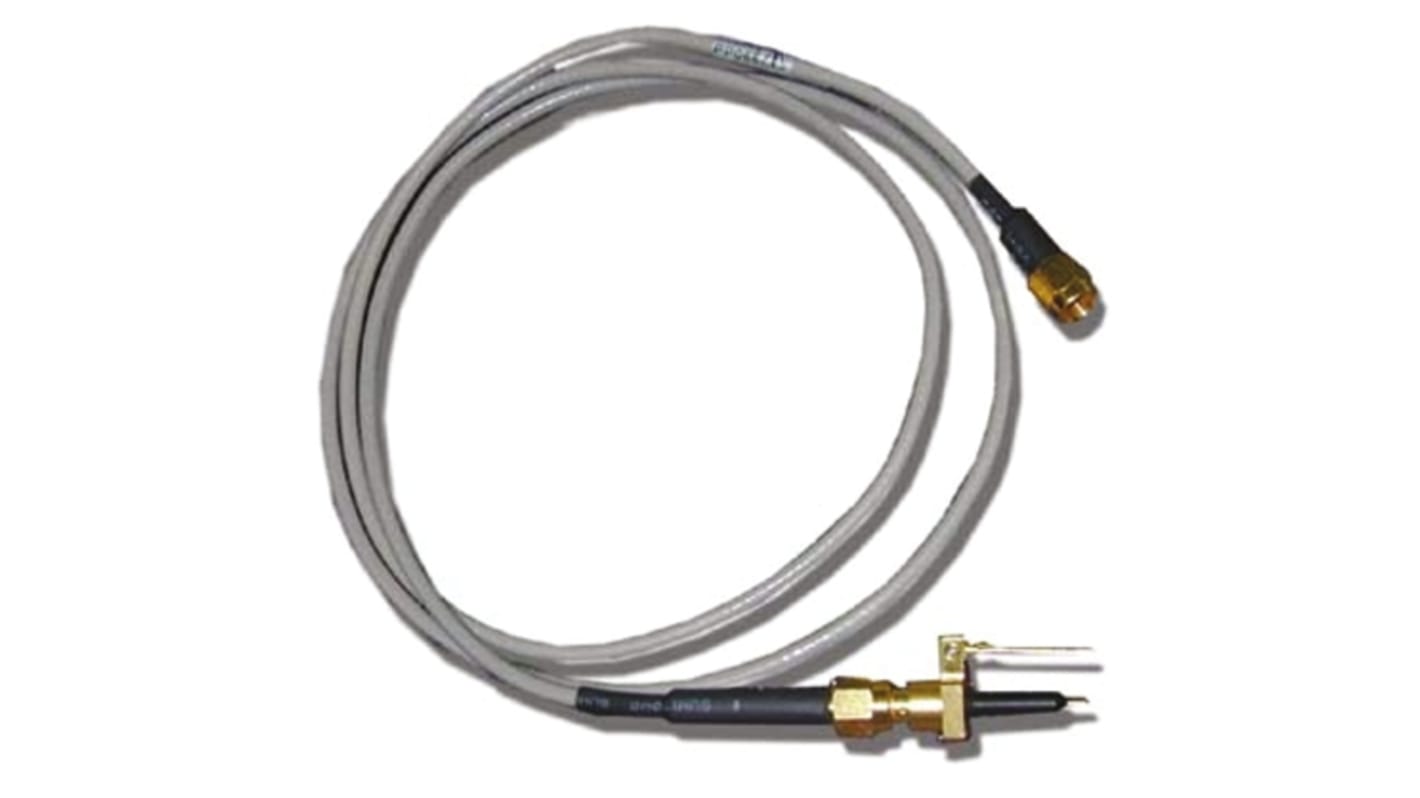

Teledyne LeCroy High Bandwidth Passive Probe PP066

The PP066 is designed for use with the WaveMaster and other high bandwidth oscilloscopes having 50Ω input transmission. This very low capacitance probe is chosen for higher frequency applications which include the probing of transmission lines with 20 - 100Ω impedance. The PP066 is also popular for wide-ranging applications such as the probing of analog and digital ICs in computer, communications, data storage and other high speed designs.

Interchangeable attenuator tips
Signal integrity at high bandwidth
Standard SMA cable connection
Ultra low capacitance

Passive Oscilloscope Probes

Note

All the products in this range are supplied for use with instruments with a permanent earth connection.

Specifikationer
Attribute Value
Probe Type Passive
Attenuation 1:10, 1:20
Bandwidth 7.5GHz
Maximum Common Mode Input Voltage 15V
Connector Type BNC, SMA
Model Number p PP066
Rise Time 47ps
I lager för leverans inom 2 arbetsdagar
Pris (ex. moms) Each
16 373,12 kr
(exkl. moms)
20 466,40 kr
(inkl. moms)
Enheter
Per unit
1 +
16 373,12 kr
Nästa dag-leverans inte möjlig
