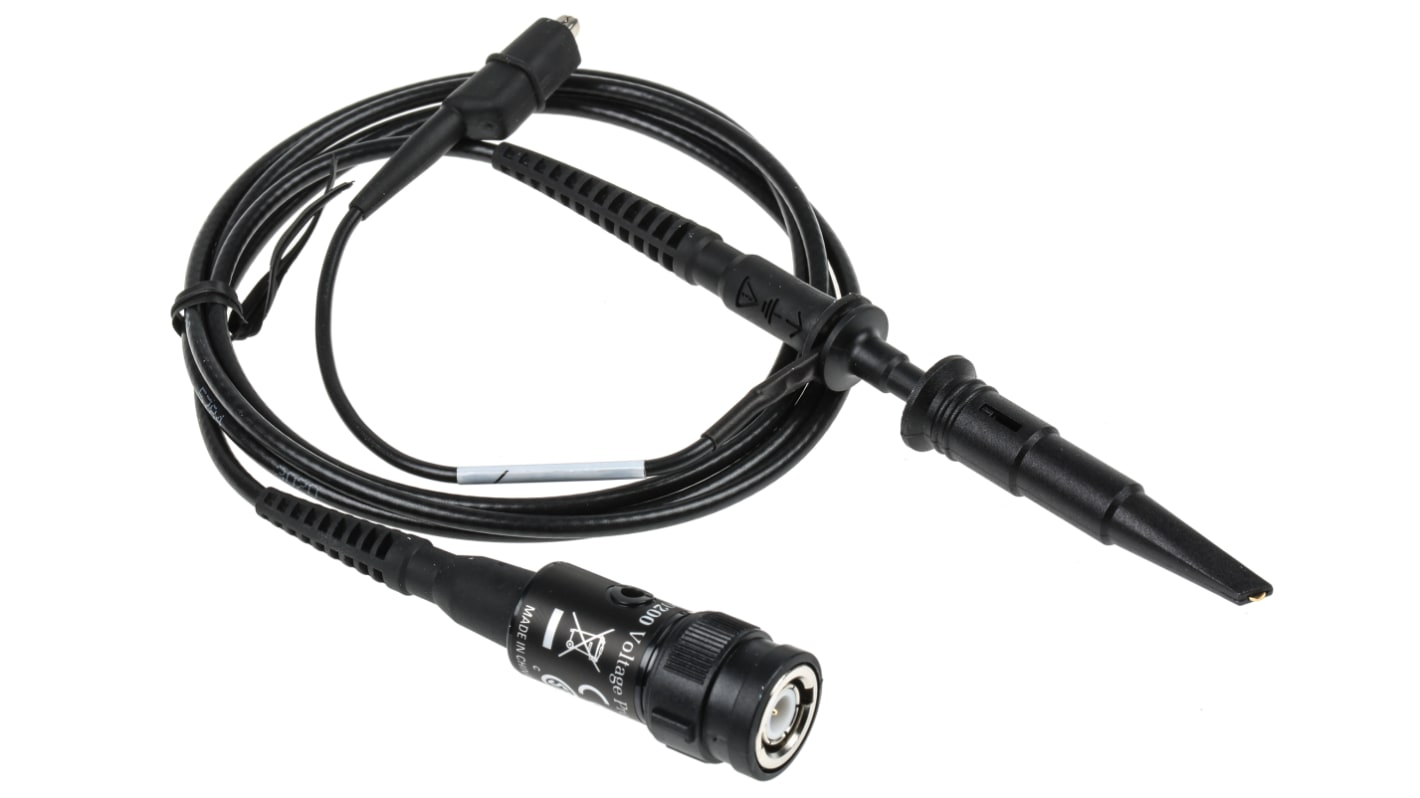

Tektronix TPP Series TPP0200 Oscilloscope Probe, Passive Type, 200MHz, 1:10, BNC Connector

RS-artikelnummer:: 726-0038
Tillv. art.nr:: TPP0200
Tillverkare / varumärke:: Tektronix

Tektronix TPP Series TPP0200 Oscilloscope Probe, Passive Type, 200MHz, 1:10, BNC Connector

46 I lager för avsändande samma dag

25 Inom 1 arbetsdag(ar) (UK lager)

Lagt till varukorgen

Pris (ex. moms) Varje

1 176,00 kr

(exkl. moms)

1 470,00 kr

(inkl. moms)

Enheter	Per unit
1 +	1 176,00 kr

RS-artikelnummer:: 726-0038
Tillv. art.nr:: TPP0200
Tillverkare / varumärke:: Tektronix

Datablad

Lagstiftning och ursprungsland

RoHS-status: Undantagen

COO (Country of Origin):: CN

Produktdetaljer

Tektronix Oscilloscope Probes

The Tektronix passive voltage oscilloscope probe is for use on BNC oscilloscopes with 1Mohm/13pF input. It has an attenuation of 10X with 10Mohm input resistance.
Supplied with:
Retractable hook tip
Ground spring, ground lead with alligator clip
Note:
All the products in this range are supplied for use with instruments with a permanent earth connection.

Features and Benefits

Bandwidth is DC to 200MHz
Attenuation ratio is 1:10
Input impedance is 10Mohmll12pF
Cable length is 1.3m
Maximum common-mode input voltage is 300KV
Maximum Input voltage is 300 VRMS CAT II
Wide compensation range is (8pF-18pF)

Applications

Relative low frequency measurements
Low frequency computer and telecom measurements
Power supplies
Low frequency amplifiers

Certifications

UL61010-031 approved
2007, CAN/CSA C22.2 No. 61010-031-07 certified
IEC61010-031
IEC 61010-031/A1:2008
CAT II 300V

Specifikationer

Attribute	Value
Probe Type	Passive
Attenuation	1:10
Bandwidth	200MHz
Maximum Common Mode Input Voltage	300V
Connector Type	BNC
Model Number p	TPP0200
Series	TPP
Safety Category	CAT II 300V
