Tektronix TCPA300 Oscilloscope Probe Amplifier, For Use With TCPA300 AC/DC Measurement System

  • RS-artikelnummer 764-4391
  • Tillv. art.nr TCPA300
  • Tillverkare / varumärke Tektronix
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): CN
Produktdetaljer

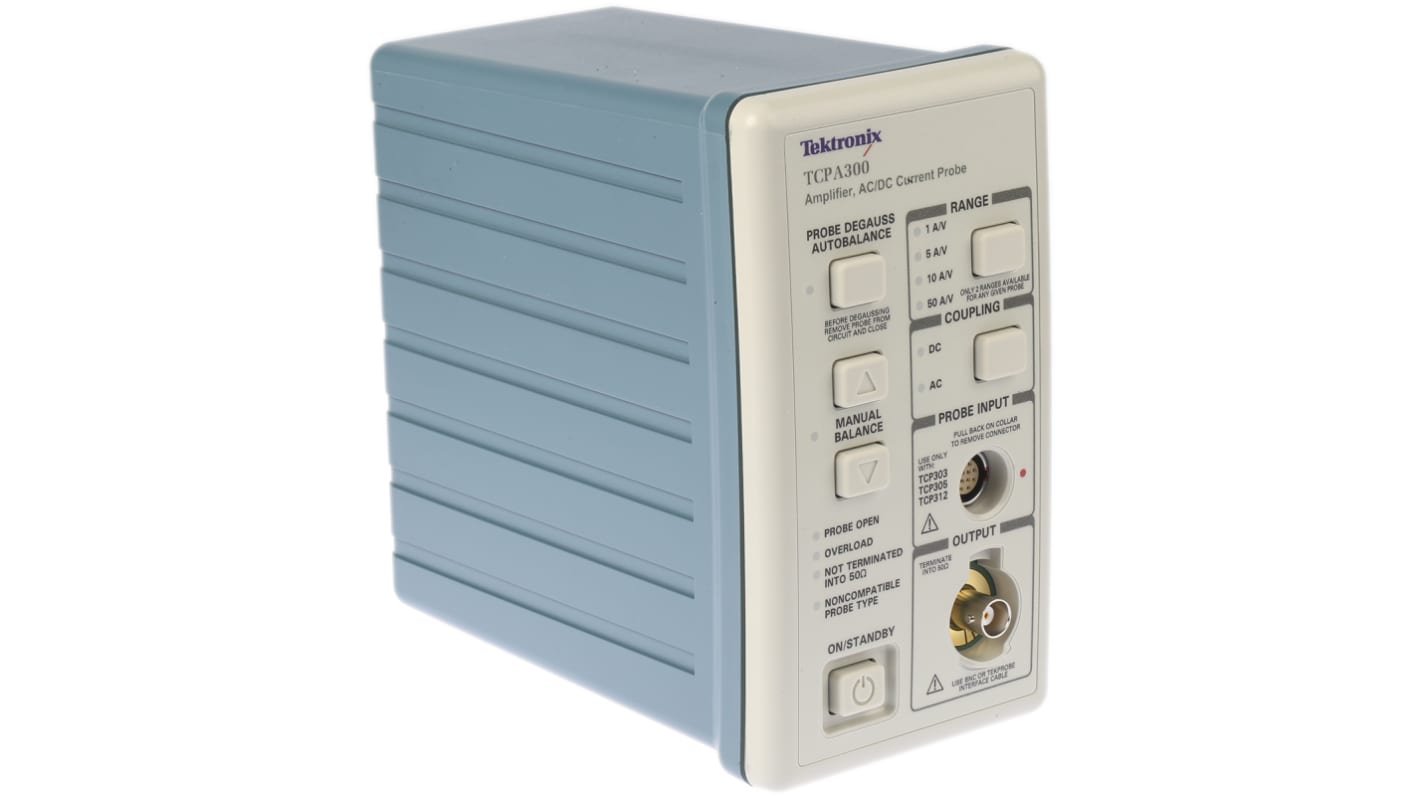

Tektronix TCPA300 Amplifier

The Tektronix TCPA300 amplifier is designed for use with the Tektronix TCP312 (30A) or TCP305 (50A) current probe. These probe/amplifier combinations offer a wide current measurement capability, from low-level milliamp measurements to high current levels. The TCPA300 can also be used with non-TEKPROBE systems to make proper current measurements, by multiplying the measured output voltage on the oscilloscope by the TCPA300 range setting.

Note

Requires Tektronix TCP305 ( 628-7534 ) or TCP312 ( 499-592 ) current probe, available separately.

Supplied with

Instruction/service manual, TEKPROBE interface cable, Male-to-Male BNC cable (50Ω), 50Ω feedthrough termination, Certificate of Traceable Calibration

Tektronix Oscilloscope Probe Amplifier

The Tektronix TCPA300 oscilloscope probe amplifier is a highly advanced current measurement system. When connected to Tektronix oscilloscopes with TEKPROBE Level II, TekConnect (w/ TCA-BNC) or TekVPI (w/TPA-BNC) interfaces offer a wide current measurement capability, from low-level milliamp measurements to high current levels. It can also be used with non-Tekprobe systems to make proper current measurements, by multiplying the measured output voltage on the oscilloscope by the TCPA300 range setting.Note:Requires Tektronix TCP305 ( 628-7534 ) or TCP312 ( 499-592 ) current probe, available separately.Supplied with instruction/service manual, TEKPROBE interface cable, Male-to-Male BNC cable (50O), 50O feedthrough termination, Certificate of Traceable Calibration.

Features and Benefits

DC to 100MHz: Current Probe Amplifier Automatic scaling and units 1 - Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations AC/DC input coupling Low insertion impedance reduces device under test loading Split-core construction allows easy circuit connection Status indicators provide visual operating status and notification of potential error conditions - degauss, probe open, overload, not terminated into 50ohm, no compatible probe type Lower DC drift and noise allow improved low level current measurements

Applications

Development and analysis solutions for designers, installers, and service personnel in telecomm, data communication, computer and semiconductor power electronics environments for Power supplies (switching and linear) Semiconductor devices (SCRs, IGBTs, MOSFETs, CMOS, BJTs) Power inverters/converters Electronic ballasts Industrial/consumer electronics Mobile communications (phone, satellite and relay stations) Motor drives transportation systems (electronic vehicles, electric trains, locomotives and avionics)

Certifications

UL3111-2-032 UL3111-1 certified EN61010-1/A2 certified IEC61010-1/A2 certified

Note

Requires Tektronix TCP305 ( 628-7534 ) or TCP312 ( 499-592 ) current probe, available separately.

Supplied with

Instruction/service manual, TEKPROBE interface cable, Male-to-Male BNC cable (50Ω), 50Ω feedthrough termination, Certificate of Traceable Calibration

Specifikationer
Attribute Value
Accessory Type Amplifier
For Use With TCPA300 AC/DC Measurement System
14 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
29 561,00 kr
(exkl. moms)
36 951,25 kr
(inkl. moms)
Enheter
Per unit
1 +
29 561,00 kr
