Tektronix Oscilloscope Software Analysis Module MDO3AUTO, For Use With MDO3000 Series

  • RS-artikelnummer 797-3378
  • Tillv. art.nr MDO3AUTO
  • Tillverkare / varumärke Tektronix
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

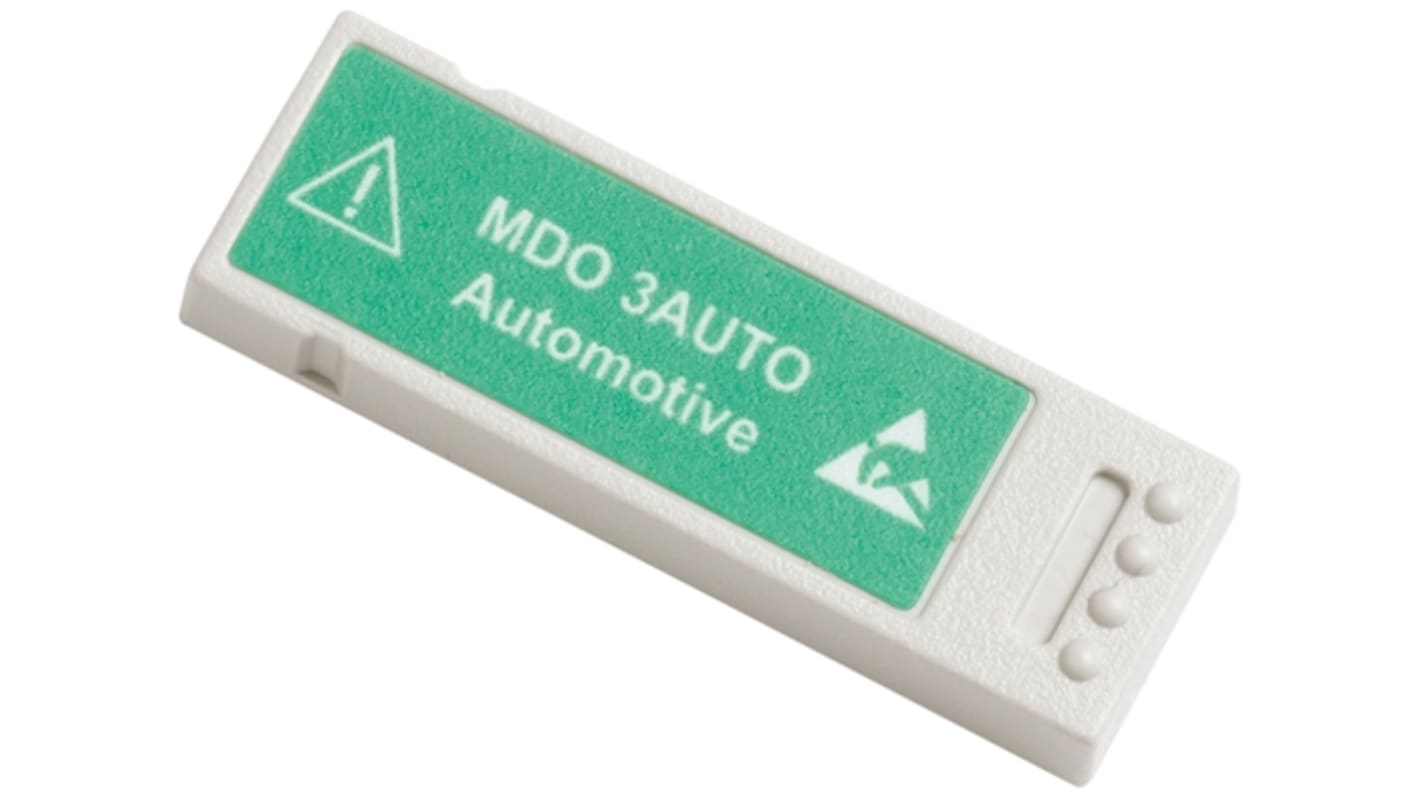

MDO3000 Series Application Module MDO3AUTO

Tektronix MDO3000 Series application modules are stand-alone products that can be bought at the time of the initial MDO3000 scope purchase or at any future time. Automotive Serial Triggering and Analysis Module MDO3AUTO enables triggering on CAN and LIN buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools and packet decode tables with time-stamp information.

Signal inputs - CAN or LIN: any Ch1 - Ch4, any D0 - D15
Recommended probing: CAN single ended or differential; LIN single ended

Note

Tektronix MDO3000 Series application modules have licenses that can be transferred between an application module and an oscilloscope. The license may be contained in the module, allowing the module to be moved from one instrument to another. Or the license can be contained in the oscilloscope, allowing the module to be removed and stored for safe keeping. The license can be transferred back to the module for use in another MDO3000 scope. Transferring the license to an oscilloscope and removing the module permits the use of more than two applications simultaneously.

MDO Series Application Modules

Specifikationer
Attribute Value
Module Type Analysis Module
For Use With MDO3000 Series
Model Number p MDO3AUTO
Tillfälligt slut i lager – restorder för leverans 2020-08-25
Pris (ex. moms) Each
12 529,00 kr
(exkl. moms)
15 661,25 kr
(inkl. moms)
Enheter
Per unit
1 +
12 529,00 kr
