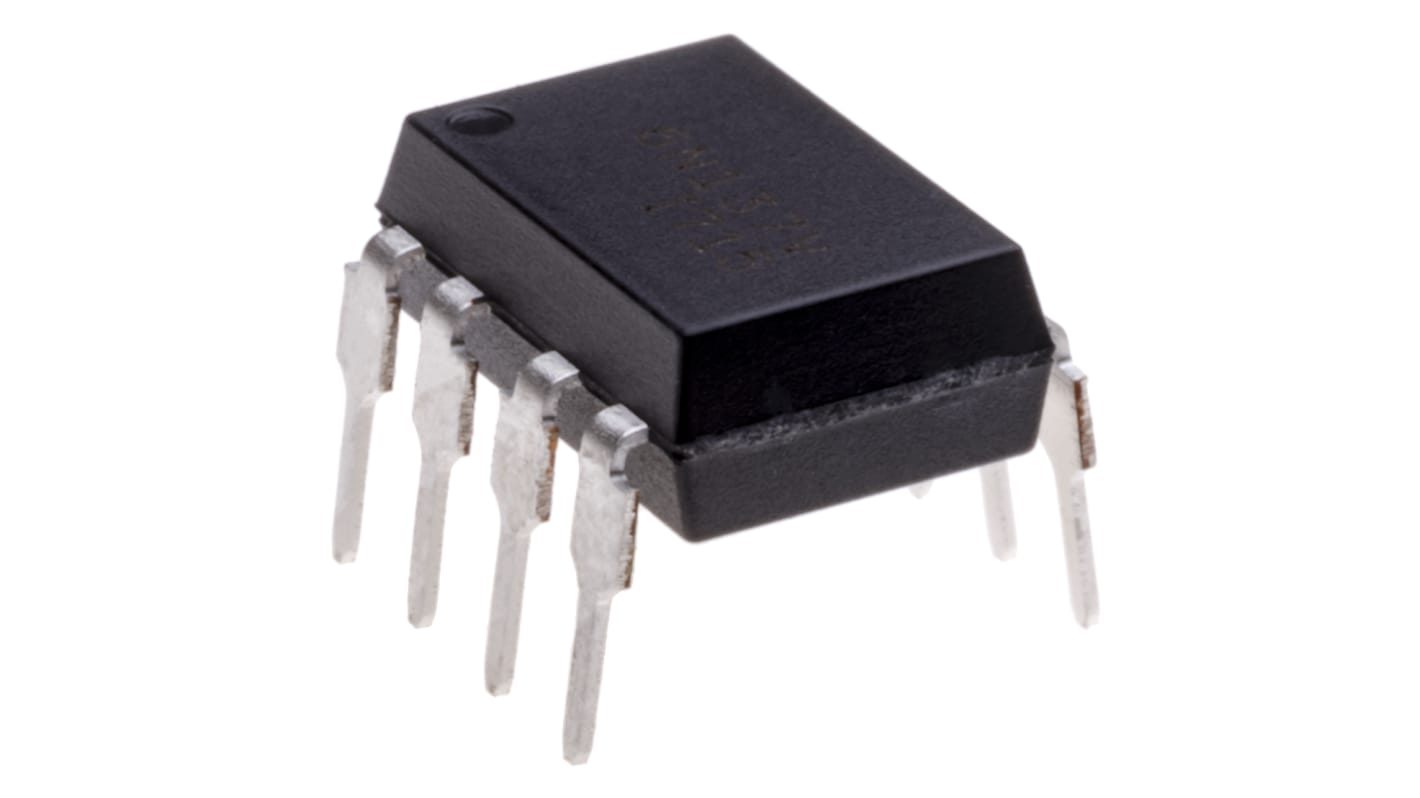

Isocom, TLP620-2 AC Input NPN Phototransistor Output Dual Optocoupler, Through Hole, 8-Pin DIP
- RS-artikelnummer:
- 161-1037
- Tillv. art.nr:
- TLP620-2
- Tillverkare / varumärke:
- Isocom
2900 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 50)
6,231 kr
(exkl. moms)
7,789 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 50 - 50 | 6,231 kr | 311,55 kr |
| 100 - 200 | 5,997 kr | 299,85 kr |
| 250 + | 5,805 kr | 290,25 kr |
- RS-artikelnummer:
- 161-1037
- Tillv. art.nr:
- TLP620-2
- Tillverkare / varumärke:
- Isocom
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TH
Produktdetaljer
The TLP620, TLP620-2, TLP620-4_ Series of Optically Coupled Isolators Consist of Two Infrared Light Emitting diodes connected in Inverse Parallel and NPN Silicon Photo Transistors in Space Efficient Dual in Line Plastic Packages
High Isolation Voltage (5.3 kVrms, 7.5kVpk)
All Electrical Parameters 100% Tested
Computer Terminals
Industrial Systems Controllers
Telephone Sets, Telephone Exchanges
Signal Transmission between Systems of Different Potentials and Impedances
All Electrical Parameters 100% Tested
Computer Terminals
Industrial Systems Controllers
Telephone Sets, Telephone Exchanges
Signal Transmission between Systems of Different Potentials and Impedances
Specifikationer
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Output Device | NPN Phototransistor |
| Maximum Forward Voltage | 1.3V |
| Number of Channels | 2 |
| Number of Pins | 8 |
| Package Type | DIP |
| Input Current Type | AC |
| Typical Rise Time | 4µs |
| Maximum Input Current | ±50 mA |
| Isolation Voltage | 5300 (Minimum) Vrms |
| Maximum Current Transfer Ratio | 600% |
| Minimum Current Transfer Ratio | 50% |
| Typical Fall Time | 3µs |
| Series | TLP620-2 |
