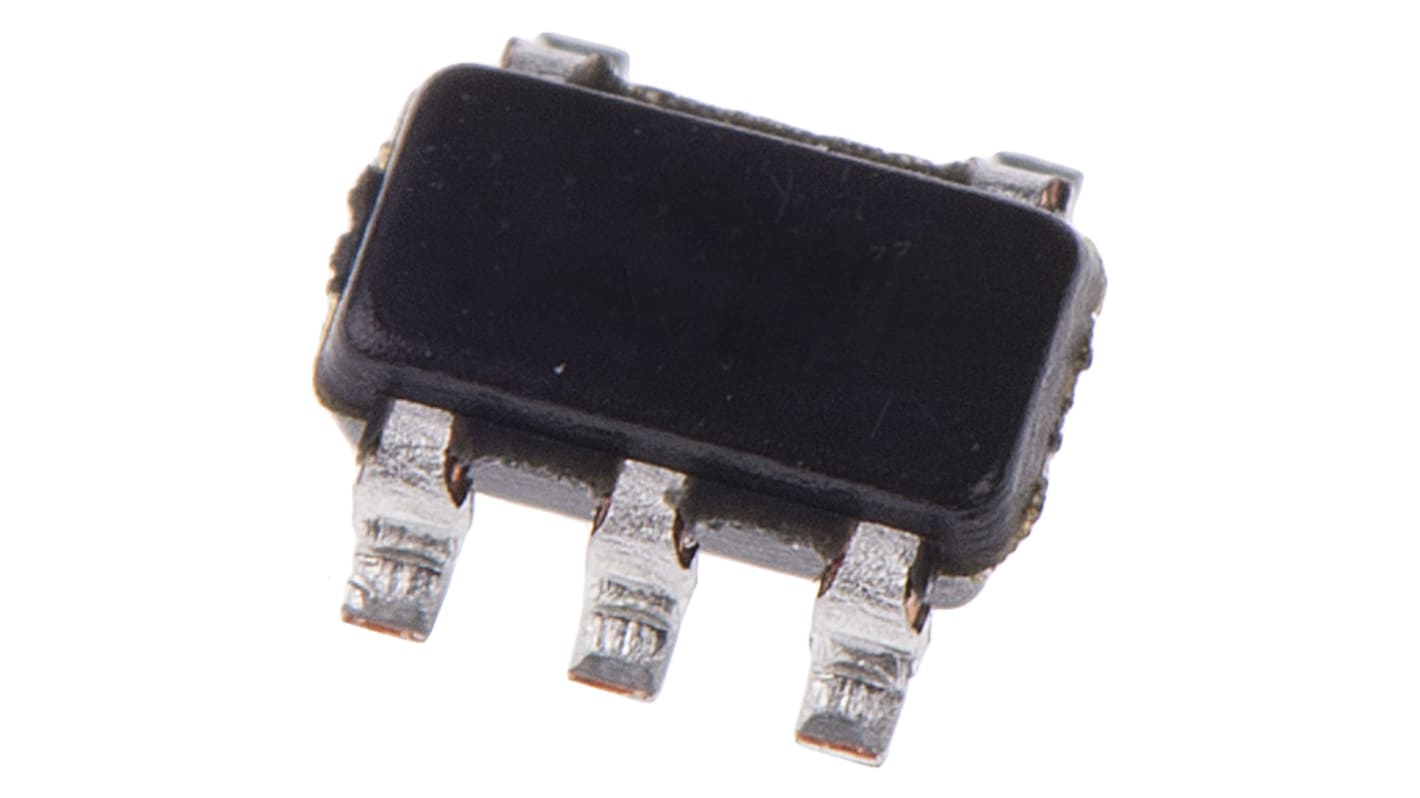

LM7301IM5/NOPB Texas Instruments, Precision, Op Amp, RRIO, 4MHz, 3 → 28 V, 5-Pin SOT-23
- RS-artikelnummer:
- 121-8796
- Tillv. art.nr:
- LM7301IM5/NOPB
- Tillverkare / varumärke:
- Texas Instruments
1000 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 1000)
26,894 kr
(exkl. moms)
33,618 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 1000 + | 26,894 kr | 26 894,00 kr |
- RS-artikelnummer:
- 121-8796
- Tillv. art.nr:
- LM7301IM5/NOPB
- Tillverkare / varumärke:
- Texas Instruments
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- US
Produktdetaljer
General Purpose Op Amps, LM Series
A range of general purpose operational amplifiers from Texas Instruments suitable for a multitude of uses. These devices offer cost-effective performance in non-specialised applications and are available in single, dual and quad configurations. The range includes a large variety of both through hole and SMT packages. Many of the devices in the LM family of op-amps offer low power consumption and are able to operate with single supplies with input common mode voltages that includes ground.
Specifikationer
Attribute | Value |
|---|---|
| Amplifier Type | Precision |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 3 → 28 V |
| Typical Gain Bandwidth Product | 4MHz |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
| Typical Slew Rate | 1.25V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Typical Voltage Gain | 97 dB |
| Rail to Rail | Rail to Rail Input/Output |
| Dimensions | 2.92 x 1.6 x 1.02mm |
| Width | 1.6mm |
| Height | 1.02mm |
| Typical Input Voltage Noise Density | 36nV/√Hz |
| Length | 2.92mm |
