- RS-artikelnummer:
- 205-5868
- Tillv. art.nr:
- EWOS10-5V0-B-C1
- Tillverkare / varumärke:
- SYRLINKS
Tillfälligt slut i lager – restorder för leverans 2024-07-25
Lagt till varukorgen
Pris (ex. moms) Var (i en låda med 2)
2 759,19 kr
(exkl. moms)
3 448,99 kr
(inkl. moms)
| Enheter | Per unit | Per Box* |
| 2 + | 2 759,19 kr | 5 518,38 kr |
- RS-artikelnummer:
- 205-5868
- Tillv. art.nr:
- EWOS10-5V0-B-C1
- Tillverkare / varumärke:
- SYRLINKS
Datablad
Lagstiftning och ursprungsland
Uppfyller ej RoHS
- COO (Country of Origin):
- FR
Produktdetaljer

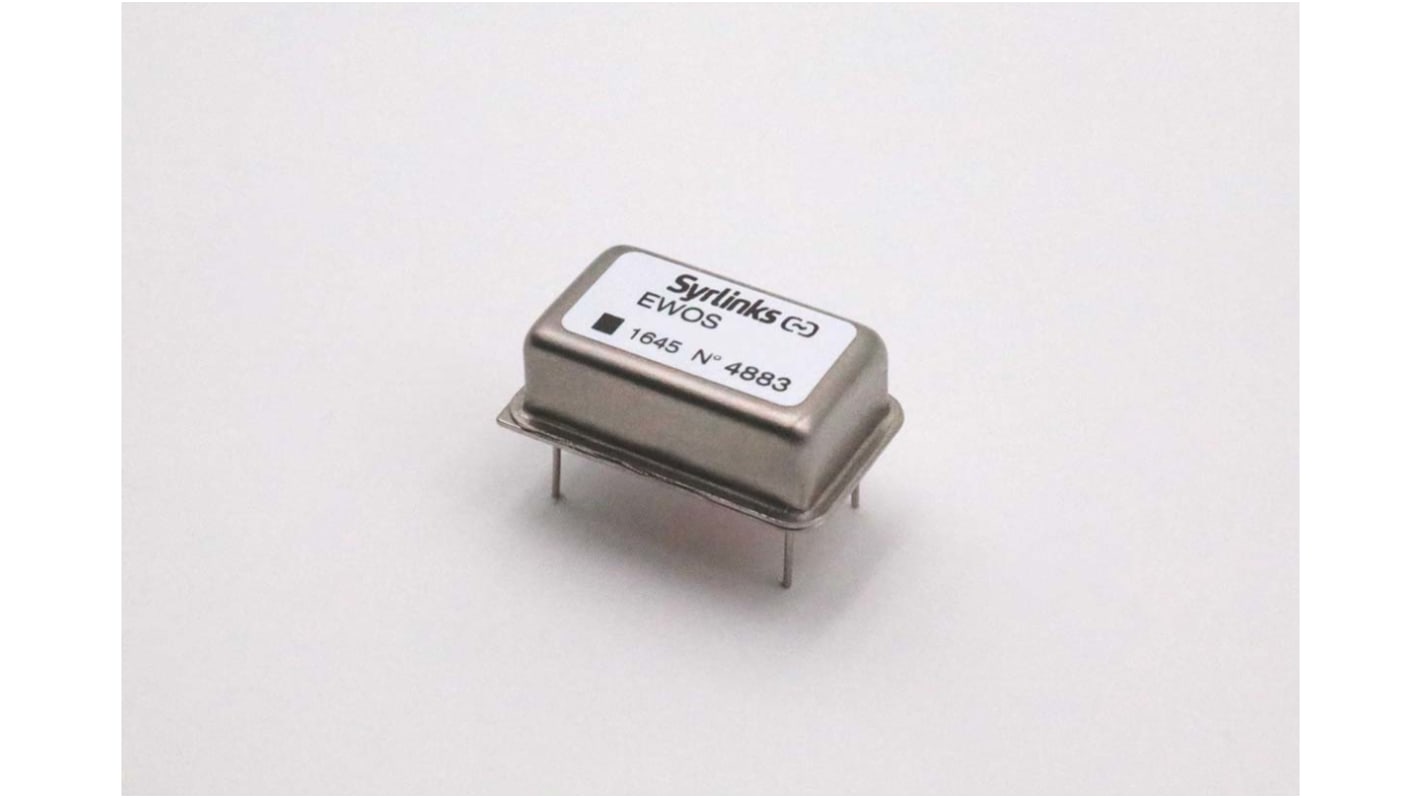

The Syrlinks EWOS10/20/40 is the least power consuming OXCO within Syrlinks products range. Widely used in aeronautic, defence or general industry applications, is shows a record low power consumption of 75 mW at 25°C. Powered with 5V, it is available in standard frequencies at 10, 20 or 40 MHz with an operating temperatures up to 70°C or 85°C.
±70 ppb (typ.) thermal sensitivity
75 mW @ 25°C (typ.)
±2ppb/day after 30 days (typ.)
75 mW @ 25°C (typ.)
±2ppb/day after 30 days (typ.)
Specifikationer
Attribute | Value |
|---|---|
| Oscillator Type | OXCO |
| Output Frequency | 10MHz |
| Frequency Stability | ±70ppb |
| Load Capacitance | 10pF |
| Package Type | DIL14 Low |
| Output Level | Clipped Sinewave |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +70°C |
| Height | 6.6mm |
| Dimensions | 20.27 x 12.65 x 6.6mm |
