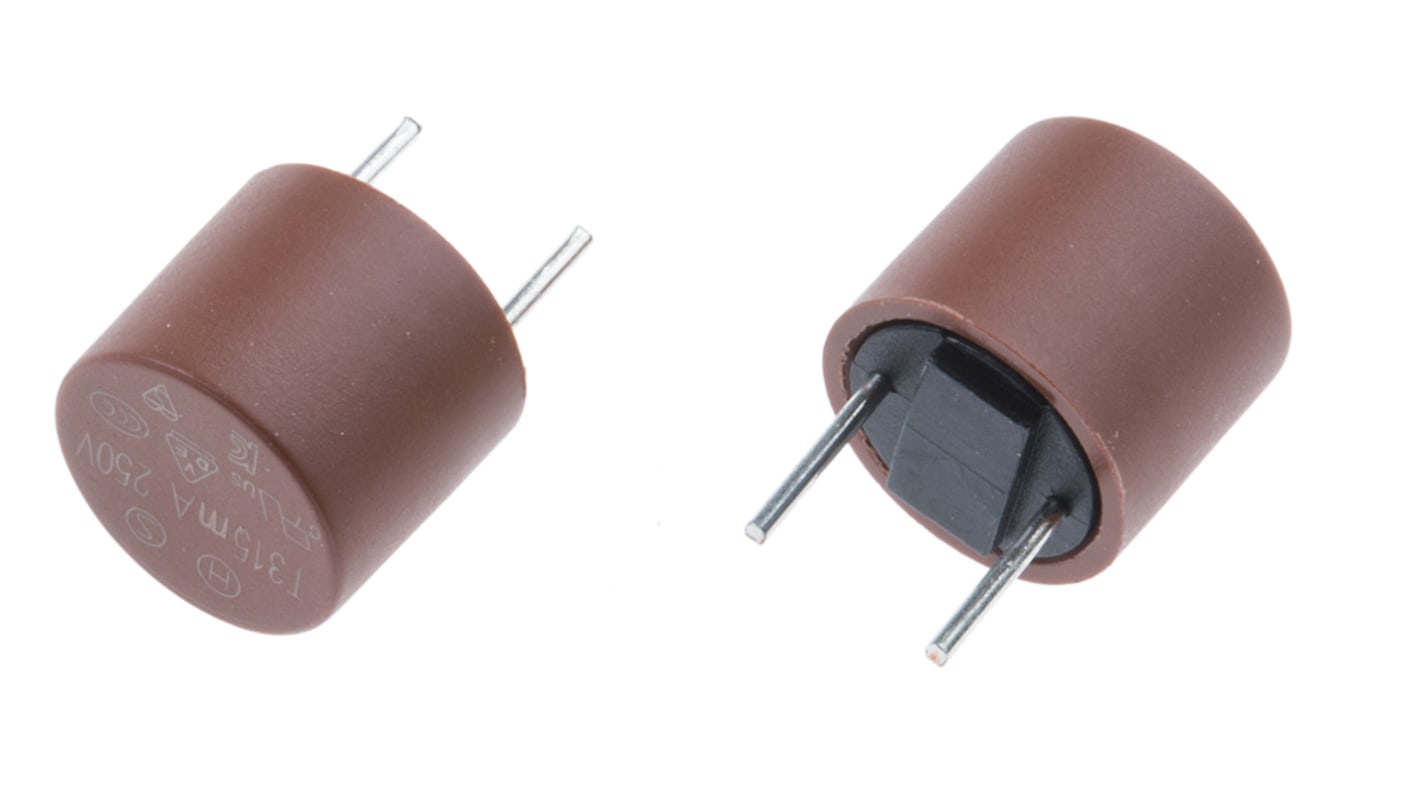

RS PROPC Board Non Resettable Fuse, Radial 315mA, 250V ac
- RS-artikelnummer:
- 611-0709
- Tillverkare / varumärke:
- RS PRO
190 I lager för avsändande samma dag
80 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
15,911 kr
(exkl. moms)
19,889 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 - 90 | 15,911 kr | 159,11 kr |
| 100 - 490 | 14,299 kr | 142,99 kr |
| 500 - 1490 | 12,537 kr | 125,37 kr |
| 1500 - 2490 | 10,273 kr | 102,73 kr |
| 2500 + | 9,244 kr | 92,44 kr |
- RS-artikelnummer:
- 611-0709
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
High Performance, Series TR5
For automatic insertion, can be directly soldered or plugged (use fuseholder stock no.110-7900)
Approvals
UL; VDE; SEMKO
All fuses have Thermoplaste Polyamide bodies
Specifikationer
Attribute | Value |
|---|---|
| Current Rating | 315mA |
| Lead Orientation | Radial |
| Voltage Rating | 250V ac |
| Fuse Speed | T |
| Body Material | Nylon |
| Body Diameter | 8.5mm |
| Body Height | 8mm |
| Wire Length | 4.3mm |
| Wire Pitch | 5.08mm |
| Breaking Capacity at Maximum Voltage Rating | 35 A |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Wire Diameter | 0.6mm |
